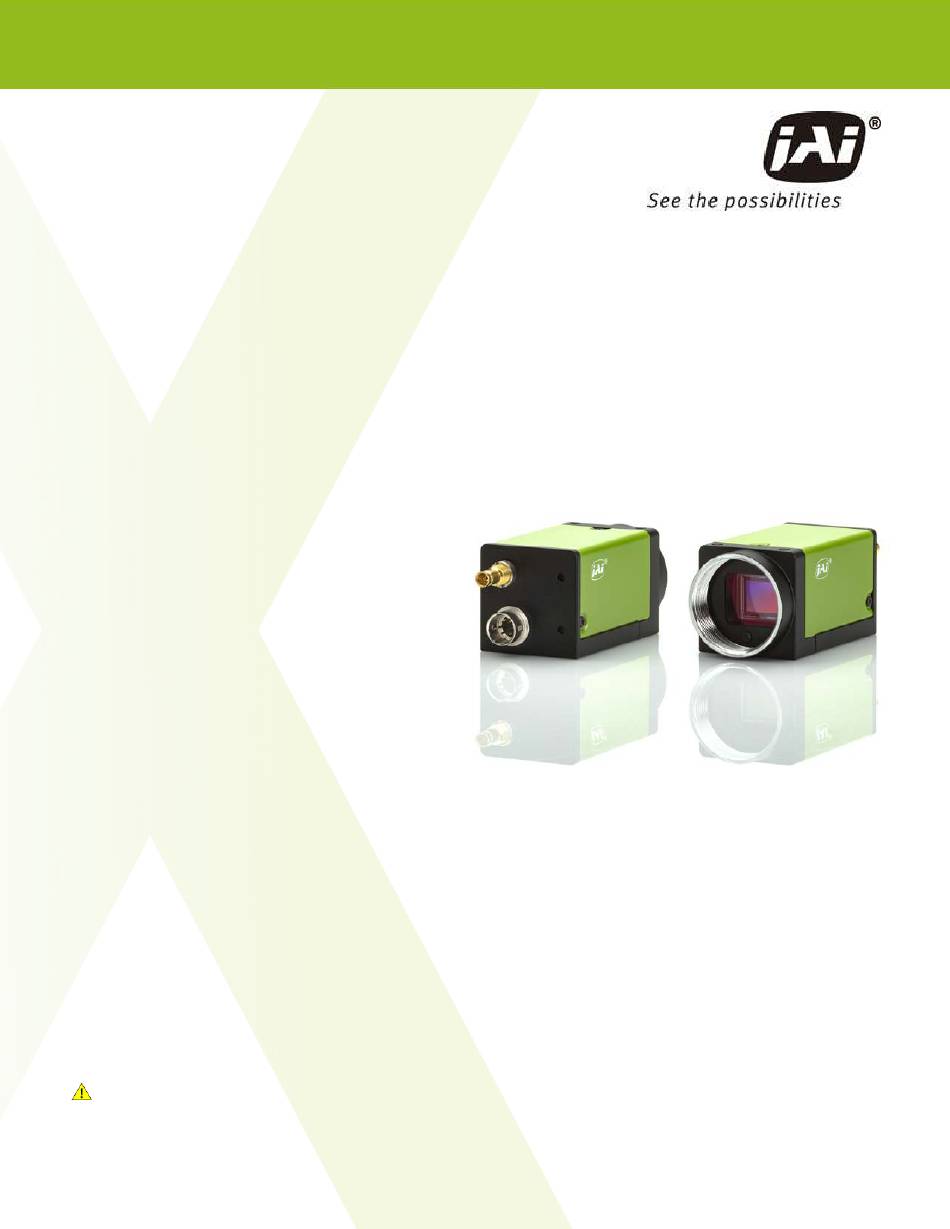

User Manual
Thank you for purchasing this product.
Be sure to read this documentation before use.
This documentation includes important safety precautions and instructions on how to operate the unit. Be sure to read this documentation to ensure
proper operation.
The contents of this documentation are subject to change without notice for the purpose of improvement.
© 2022 JAI

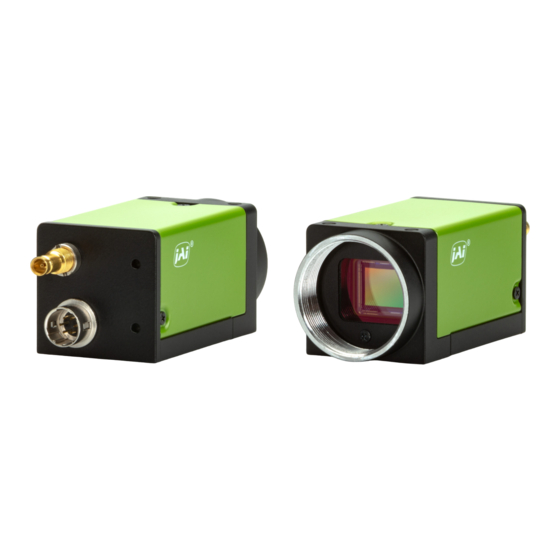

GOX-5105M-CXP
GOX-8105M-CXP
GOX-12405M-CXP
GOX-16205M-CXP
GOX-20405M-CXP
GOX-24505M-CXP
Monochrome and Color Camera with CoaXPress Interface
Go-X_Series_CXP_Manual_Ver.1.4_2022-06-22
GOX-5105C-CXP
GOX-8105C-CXP
GOX-12405C-CXP
GOX-16205C-CXP
GOX-20405C-CXP
GOX-24505C-CXP
CMOS Digital Progressive Scan
Document Version: 1.4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JAI GOX-5105M-CXP
Summary of Contents for JAI GOX-5105M-CXP
- Page 1 This documentation includes important safety precautions and instructions on how to operate the unit. Be sure to read this documentation to ensure proper operation. The contents of this documentation are subject to change without notice for the purpose of improvement. © 2022 JAI...
-
Page 2: Table Of Contents
User Manual (Ver.1.4) - Table of Contents GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Table of Contents Table of Contents About Technical Note Notice/Warranty/Certifications Notice Warranty Certifications CE Compliance Warning Supplement Supplement Usage Precautions Notes on Cable Configurations Notes on Attaching The Lens Phenomena Specific to CMOS Image Sensors Notes on Exportation... - Page 3 User Manual (Ver.1.4) - Table of Contents GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Preparation Step 1: Connecting Devices ① Lens ② Direct Mounting (or Use MP-46 Tripod Adapter Plate) ③ CoaXPress Cable ④ CXP Frame Grabber Board ⑤...
- Page 4 User Manual (Ver.1.4) - Table of Contents GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP 2. Calculate the Minimum Frame Period 3. Calculate the Maximum Frame Rate or Maximum Trigger Rate Timing Chart Exposure Mode = Timed (Overlap Readout) GOX-5105MC-CXP, CXP6-1 GOX-5105MC-CXP, CXP3-1 GOX-8105MC-CXP, CXP6-1...
- Page 5 User Manual (Ver.1.4) - Table of Contents GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP6-1 GOX-8105MC-CXP, CXP3-1 GOX-12405MC-CXP, CXP6-1 GOX-12405MC-CXP, CXP3-1 GOX-16205MC-CXP, CXP6-1 GOX-16205MC-CXP, CXP3-1 GOX-20405MC-CXP, CXP6-1 GOX-20405MC-CXP, CXP3-1 GOX-24505MC-CXP, CXP6-1 GOX-24505MC-CXP, CXP3-1 Gain Control Automatic Gain Level Control White Balance Color Temperature...
- Page 6 User Manual (Ver.1.4) - Table of Contents GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Overlay Mode ROI Function (Single ROI) Single ROI - Example ROI Function (Multi ROI) Example Color Space Conversion (ColorTransformationControl) Edge Enhancer, Color Enhancer Sequencer Function TriggerSequencer Mode Sample TriggerSequencer Mode Operation CommandSequencer Mode...
-
Page 7: About Technical Note
Revision History About Technical Note Some additional technical information is provided on the JAI website as Technical Notes. In this manual, if a technical note is available for a particular topic, the above icon is shown. Please refer to the following URL for Technical notes. -
Page 8: Notice/Warranty/Certifications
The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan, and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein. -
Page 9: Warning
User Manual (Ver.1.4) - Notice/Warranty/Certifications GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could void the user’s authority to operate the equipment. -
Page 10: Supplement
Pollution by Electronic Information Products “, known as “China RoHS“. The table shows contained Hazardous Substances in this camera. mark shows that the environment-friendly use period of contained Hazardous Substances is 15 years. Applicable models: GOX-5105M-CXP, GOX-8105M-CXP, GOX-12405M-CXP, GOX-16205M- CXP, GOX-20405M-CXP, GOX-24505M-CXP 重 要 注 意 事 项 有毒，有害物质或元素名称及含量表... -
Page 11: Supplement
User Manual (Ver.1.4) - Notice/Warranty/Certifications GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Supplement The following statement is related to the regulation on “Measures for the Administration of the Control of Pollution by Electronic Information Products “, known as “China RoHS“. The table shows contained Hazardous Substances in this camera. -
Page 12: Usage Precautions
User Manual (Ver.1.4) - Usage Precautions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Usage Precautions Notes on Cable Configurations The presence of lighting equipment and television receivers nearby may result in video noise. In such cases, change the cable configurations or placement. Notes on Attaching The Lens How to Clean a Sensor Avoiding Dust Particles... -
Page 13: Notes On Exportation
User Manual (Ver.1.4) - Usage Precautions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP affected by the ambient temperature, camera settings (e.g., high sensitivity and long exposure), and other factors, be sure to operate within the camera’s specified operating environment. Notes on Exportation When exporting this product, please follow the export regulations of your country or region. -
Page 14: Features
29mm x 55mm) are also lightweight (60g), which makes them easy to install and mount. In addition, they use the CoaxPress user interface, which enables high-speed scanning. Model Name Image Sensor Active Pixels Pixel Size Max Frame Rate* GOX-5105M-CXP Mono 1/1.8 inch 2472 x 2064 2.74 μm x 2.74 μm 112 fps GOX-5105C-CXP... -
Page 15: Parts Identification
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Parts Identification ① Lens Mount (C-Mount) ② CXP (CoaXPress) Connector ③ LINK LED ④ DC IN/TRIG Connector (6-Pin Round) ⑤ POWER/TRIG LED ⑥ ⑦ Camera Locking Screw Holes ①... -
Page 16: ② Cxp (Coaxpress) Connector
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ② CXP (CoaXPress) Connector Coaxial cable for digital video output Connect. DIN type Single Channel output, CXP 2.0 Requires cable with 75Ω, 1.0/2.3 DIN-type connector Supports up to 6.25 Gbps output speed (CXP-6) Supports PoCXP Note: You can check the current CXP version in CxpVersion Used of TransportLayerControl. -
Page 17: ③ Link Led
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ③ LINK LED Indicates the connection status of the CoaXPress. Status Power is off. Lit amber System is powering up. No connection. Red pulse - slow Note: Not applicable when using PoCXP. -
Page 18: ④ Dc In/Trig Connector (6-Pin Round)
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ④ DC IN/TRIG Connector (6-Pin Round) Connect the cable for a power supply (optional) or for DC IN / trigger IN here. Camera Side: HR10A-7R-6PB (Hirose Electric or equivalent ) Cable Side: : HR10A-7P-6S (Plug) (Hirose Electric or equivalent ) Pin No. -
Page 19: ⑥ ⑦ Camera Locking Screw Holes
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ⑥ ⑦ Camera Locking Screw Holes Use these holes when mounting the camera directly to a wall or other structural system. ⑥ Upper part of camera: M3, 3mm depth, 20mm pitch ⑦... -
Page 20: Characteristics Of The Recommended Circuits For Opto Out
User Manual (Ver.1.4) - Parts Identification GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Characteristics of the Recommended Circuits for Opto OUT OUTPUT LINE RESPONSE TIME For the operating conditions of applied voltage (User Power) +12V, load resistance 10kΩ, and cable length 1m, the timing is shown in the table below. -
Page 21: Preparation
Read this section to learn how the camera connects to devices and accessories. The preparation process is described below. Note: This camera does not support eBUS Player for JAI. Step 1: Connecting Devices Connect the lens, CoaXPress cable, computer, and other devices. -
Page 22: Step 1: Connecting Devices
User Manual (Ver.1.4) - Preparation GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Step 1: Connecting Devices ① Lens ② Direct Mounting (or Use MP-46 Tripod Adapter Plate) ③ CoaXPress Cable ④ CXP Frame Grabber Board ⑤ DC IN / Trigger IN Connection Cable ⑥ AC Adapter (Power Supply) - Optional - 22 -... -
Page 23: ① Lens
C-mount lenses with lens mount protrusions of 9 mm or less can be attached. To prevent vignetting and to obtain the optimal resolution, use a lens that will cover the image sensor size. Model Name Image Sensor GOX-5105M-CXP Mono 1/1.8 inch 6.8 mm x 5.7 mm (8.82mm diagonal) GOX-5105C-CXP... -
Page 24: ② Direct Mounting (Or Use Mp-46 Tripod Adapter Plate)
User Manual (Ver.1.4) - Preparation GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Cautions: The maximum performance of the camera may not be realized depending on the lens. Attaching a lens with a mount protrusion of 9 mm or longer may damage the lens or camera. ②... -
Page 25: Step 2: Verifying Camera Operation
Use an appropriate software tool associated with your CoaXPress frame grabber to set up the camera and display captured images. Refer to the operation manual of the selected software tool for specific instructions. Note: This camera does not support eBUS Player for JAI. Step 4: Adjusting the Image Quality Related Setting Items: AnalogControl Display the camera image and adjust the image quality. -
Page 26: Adjusting The White Balance
User Manual (Ver.1.4) - Preparation GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Manual Adjustment Expand AnalogControl, and set GainAuto to Off (Default = Off). 1. Expand AnalogControl, and select the gain you want to configure in GainSelector. AnalogAll (master gain), DigitalRed* (digital R gain), and DigitalBlue* (digital B gain) can be configured. -
Page 27: Step 5: Saving The Settings
User Manual (Ver.1.4) - Preparation GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Step 5: Saving the Settings Related Setting Items: UserSetControl The setting values configured in the tool will be deleted when the camera is turned off. By saving current setting values to user memory, you can load and recall them whenever necessary. -
Page 28: To Load User Settings
User Manual (Ver.1.4) - Preparation GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP To Load User Settings 1. Stop image acquisition. User settings can only be loaded when image capture on the camera is stopped. 2. Select the settings to load (UserSet1 to UserSet3) in UserSetSelector. 3. -
Page 29: Main Functions
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Main Functions This chapter describes the camera's main functions. Acquisition Control Related Setting Items: AcquisitionControl This camera has three Acquisition modes (SingleFrame, MultFrame, Continuous). Use the AcquisitionControl settings to perform operations and settings for image capture. -
Page 30: Changing The Frame Rate
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Note: After changing various settings, the black level may not be stable for several frames immediately after AcquisitionStart. Changing the Frame Rate When TriggerMode is disabled, you can change the frame rate in AcquisitionFrameRate. The shortest frame period varies depending on the Width, Height, PixelFormat, SensorDigitizationBits, Binning (Horizontal/Vertical), FD2x2BinningMode, ImageScalingMode, Decimation (Horizontal/Vertical), CxpLinkConfiguration(LinkSpeed), StreamPacketSize settings. -
Page 31: Exposure Mode
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Exposure Mode Related Setting Items: AcquisitionControl This camera has three Exposure modes (Off, Timed, TriggerWidth). Use the AcquisitionControl settings to perform operations and settings for exposure. ExposureMode = Off Exposure control is not performed (free-running operation). -
Page 32: Actual Exposure Time
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Actual Exposure Time Related Setting Items: AcquisitionControl When ExposureMode is set to Timed, the actual exposure time will consist of the image sensor’s offset duration (2.45us) added to the ExposureTime setting configured on the camera. -
Page 33: Trigger Control
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Trigger Control Related Setting Items: AcquisitionControl The camera allows the following controls to be performed via external trigger signals. TriggerSelector Description AcquisitionStart Start image acquisition in response to the external trigger signal input. AcquisitionEnd Stop image acquisition in response to the external trigger signal input. -
Page 34: When Using The Framestart Trigger
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP When Using the FrameStart Trigger When AcquisitionStart is executed and a FrameStart trigger is received before the AcquisitionStop command is executed, one frame is acquired. The source signals that can be set for the trigger are as follows. -
Page 35: Pixel Format
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Pixel Format Related Setting Items: ImageFormatControl Selectable PixelFormat is as follows. BayerRG8, BayerRG10, BayerRG12, (BayerGR8*, BayerGR10*, BayerGR12*, BayerGB8*, BayerGB10*, BayerGB12*, BayerBG8*, BayerBG10*, BayerBG12*), RGB8, RGB10, RGB12 Color models Note: *When using ReverseX, ReverseY. -
Page 36: Image Flip Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Image Flip Function Related Setting Items: ImageFormatControl Using this function, you can output the image by inverting it horizontally and/or vertically. In the ImageFormatControl settings, To reverse the image horizontally, set ReverseX to True. -
Page 37: Gpio (Digital Input/Output Settings)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GPIO (Digital Input/Output Settings) Related Setting Items: DigitalIOControl The camera can input/output the following signals to and from external input/output connectors. External Output Line2 : Opt Out DC IN / TRIG IN Connector (6-pin round) Internal Output... -
Page 38: Videoprocessbypassmode
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP The table below shows the source signals that can be set. VideoProcessBypassMode Related Setting Items: ImagingControl The video process bypass mode is a function that bypasses internal video processing on the camera. To use this function, VideoProcessBypassMode must be set to On. -
Page 39: Calculate The Maximum Frame Or Trigger Rate (Approximate)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Calculate the Maximum Frame or Trigger Rate (Approximate) Related Setting Items: AcquisitionControl This section describes how to calculate the maximum frame rate or the maximum trigger rate (approximate). - Page 40 User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP 2. For the "a" and "b" values, select the values from the table below based on the CxpLinkConfiguration, and Pixel Format settings. PixelFormat CxpLinkConfiguration 8bit 10bit...
-
Page 41: Calculate The Minimum Frame Period
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP LineTime[clk] Next, calculate the LineTime[clk] value using the IF_LINETIME, SENSOR_LINETIME, and VIDEO_ LINETIME values. The formula for calculating the LineTime[clk] value depends on the Pixel Format setting. -
Page 42: Calculate The Maximum Frame Rate Or Maximum Trigger Rate
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP 3. Calculate the Maximum Frame Rate or Maximum Trigger Rate Finally, calculate the maximum acquisition frame rate (Continuous Mode) or maximum trigger rate (Trigger Mode). -
Page 43: Timing Chart
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Timing Chart Related Setting Items: AcquisitionControl This section shows the timing charts under the following conditions on each model when FrameStartTriger is set to On. Exposure Mode = Timed (Overlap Readout) Exposure Mode = TriggerWidth (Overlap Readout) Exposure Mode = Timed (RCT Mode) -
Page 44: Exposure Mode = Timed (Overlap Readout)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Exposure Mode = Timed (Overlap Readout) This section shows the timing charts when FrameStartTrigger is set to On, and ExposureMode is set to Timed (Overlap Readout). Frame Period (usec) Period From Trigger Start Edge to Exposure Start (usec) Period From Exposure End to FVAL Start (usec) -
Page 45: Gox-5105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 46: Gox-5105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 47: Gox-8105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 48: Gox-8105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 49: Gox-12405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 50: Gox-12405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 51: Gox-16205Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 52: Gox-16205Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 53: Gox-20405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 54: Gox-20405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 55: Gox-24505Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 56: Gox-24505Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Frame Period [A] Start Edge to Data Valid Period [D] Pixel Format Exposure End to... -
Page 57: Exposure Mode = Triggerwidth (Overlap Readout)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Exposure Mode = TriggerWidth (Overlap Readout) This section shows the timing charts when FrameStartTrigger is set to On, and ExposureMode is set to TriggerWidth (Overlap Readout). Frame Period (usec) Period From Trigger Start Edge to Exposure Start (usec) Period From Exposure End to FVAL Start (usec) -
Page 58: Gox-5105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 59: Gox-5105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 60: Gox-8105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 61: Gox-8105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 62: Gox-12405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 63: Gox-12405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 64: Gox-16205Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 65: Gox-16205Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 66: Gox-20405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 67: Gox-20405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 68: Gox-24505Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP6-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 69: Gox-24505Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP3-1 Exposure Mode = TriggerWidth (Frame Start Trigger On, Overlap Readout) Period From Trigger Period From Period from Pixel Frame Period [A] Start Edge to Exposure End to Data Valid Period... -
Page 70: Exposure Mode = Timed (Rct Mode)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Exposure Mode = Timed (RCT Mode) This section shows the timing charts when FrameStartTrigger is set to On, and ExposureMode is set toTimed (RCT Mode). Frame Period (usec) Period From Trigger Start Edge to Exposure Start (usec) Period From Exposure End to FVAL Start (usec) -
Page 71: Gox-5105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 72: Gox-5105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-5105MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 73: Gox-8105Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 74: Gox-8105Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-8105MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 75: Gox-12405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 76: Gox-12405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-12405MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 77: Gox-16205Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 78: Gox-16205Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-16205MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 79: Gox-20405Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 80: Gox-20405Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-20405MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 81: Gox-24505Mc-Cxp, Cxp6-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP6-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 82: Gox-24505Mc-Cxp, Cxp3-1
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP GOX-24505MC-CXP, CXP3-1 Exposure Mode = Timed (Frame Start Trigger On, RCT Mode) Period From Period From Frame Period [A] Trigger Start Edge Exposure End to Data Valid Period Data Invalid Pixel Format... -
Page 83: Gain Control
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Gain Control Related Setting Items: AnalogControl Adjust the overall gain with AnalogAll (master gain), and adjust the white balance by changing DigitalRed and DigitalBlue. Color Model Monochrome Model Automatic Gain Level Control... -
Page 84: White Balance
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP White Balance Related Setting Items: AnalogControl To adjust the white balance automatically, set BalanceWhiteAuto to Once (automatic adjustment only once) or Continuous (automatic adjustment always). The metering area can be limited for automatic adjustment. -
Page 85: Alc (Automatic Level Control) Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ALC (Automatic Level Control) Function Related Setting Items: AutoLevelControl The ALC (automatic level control) function combines the automatic gain control (AGC/Auto Gain Control) and automatic exposure control (ASC/Auto Shutter Control) functions and is capable of handling various changes in brightness. -
Page 86: Gamma Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Gamma Function Related Setting Items: AnalogControl The Gamma function corrects the output signals from the camera beforehand (reverse correction), taking into consideration the light-emitting properties of the monitor display. As the light-emitting properties of the monitor are not linear, the entire image may be darker or the gradation in the dark areas may be less noticeable when camera outputs are displayed without processing. -
Page 87: Lut (Lookup Table)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP LUT (Lookup Table) Related Setting Items: LUTControl The LUT function is used to generate a non-linear mapping between signal values captured on the sensor and those that are output from the camera. -
Page 88: Lut Value
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP LUT Value LUT values range from 0 at the lowest to 4095 at the highest. Linear interpolation is used to calculate LUT values between the index points. - 88 -... -
Page 89: Blemishcompensation
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP BlemishCompensation Related Setting Items: BlemishControl Multiple defective pixels that are not adjacent to each other can occur on CMOS sensor cameras. This camera features a function that interpolates defective pixels using the surrounding pixels. Up to 2000 pixels can be corrected. -
Page 90: Manual Configuration
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Manual Configuration 1. Select the index in BlemishCompensationIndex. You can select from 1 to 2000. However, configure the indexes in order starting with the smallest index. If you skip indexes while configuring settings, interpolation may not be performed. -
Page 91: Shading Correction
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Shading Correction Related Setting Items: ShadingControl The ShadingCorrection function corrects non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment. Using this function allows correction even if top, bottom, left, and right shading is not symmetrical in relation to the center of the screen (H, V). -
Page 92: To Use The Shading Correction Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Cautions: For FlatShading and ColorShading, the maximum amount of correction gain for all pixels is limited to 8 times the amount of gain before correction. (The amount of gain cannot be increased to more than 8 times the amount of gain from before correction.) If the area in the screen with the highest brightness level is 175 LSB or less (during 10-bit video output), proper correction is not possible. -
Page 93: Binning Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Binning Function Related Setting Items: ImageFormatControl The Binning function allows you to combine the signal values of clusters of adjacent pixels to create improved virtual pixels. -
Page 94: Image Scaling Mode (Xscale)
Image Scaling Mode (Xscale) Related Setting Items: ImageFormatControl JAI's Xscale algorithm digitally reduces the sensor image by specifying the vertical and horizontal scaling ratio. This function can also be used for color models and allows finer adjustment of resolution than the conventional Binning Function. -
Page 95: Specifying The Scaling Ratio
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP 4. Use ImageScalingHorizontal and ImageScalingVertical to specify the horizontal and vertical scaling ratio. For more information on how to specify the scaling ratio, see Specifying the Scaling Ratio. -
Page 96: Decimation Mode
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP 1. First, find the scaling ratio for the ROI. To make the virtual pixel size of the new camera (GOX- 5105C) the same size as the current camera (GOX-2402C), the scaling ratio is "0.79" (2.74 ÷ 3.45 = 0.79). -
Page 97: Gradation Compression Mode
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Gradation Compression Mode Related Setting Items: ImageFormatControl This function compresses the bit depth of captured images to enable images containing a wide range of pixel values to be output as a narrower set of intensity gradations. -
Page 98: Examples
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP How to Configure 1. Set GradationCompressionMode to On to enable the function. 2. Select a value for GradationCompression1stKneePoint to indicate where to start applying compression on the intensity values coming from the sensor. - Page 99 Cautions: When VideoProcessBypassMode is set to Off, JAI cannot guarantee the configured knee point value because the GradationCompression1st(2nd)KneePoint value will not match the output signal's knee point level due to the effect of the digital gain value, which is performed during post-processing.
-
Page 100: Overlay Mode
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Overlay Mode Related Setting Items: ImageFormatControl Note: This function cannot be used with the Sequencer Function. OverlayMode = MultiRoiAreaMode In this mode, you can check the readout area when using the ROI Function (Multi ROI). -
Page 101: Roi Function (Single Roi)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ROI Function (Single ROI) Related Setting Items: ImageFormatControl The ROI (region of interest) function allows you to output images by specifying the areas to scan. Specify the area to scan by specifying width, height, and horizontal/vertical offset values under ImageFormatControl. -
Page 102: Single Roi - Example
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Height/OffsetY (Lines) Height Binning Mode Binning OFF Binning ON *C, D = HeightMax OffsetY Vertical Binning 8 to [(*C) - OffsetY], 4 to [ (*D) - OffsetY], GOX-5105MC-CXP 2064 1032 Height (lines) -
Page 103: Roi Function (Multi Roi)
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ROI Function (Multi ROI) Related Setting Items: MultiROIControl In the Multi ROI mode, you can specify up to 64 scanning areas for a single-frame image. The areas cannot overlap. -
Page 104: Example
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Example To use four areas as shown below, refer to the following. 1. Set MultiROIControl->MultiRoiMode On. 2. Select “0” in MultiRoiIndex. Set MultiRoiWidth, MultiRoiHeight, MultiRoiOffsetX and MultiRoiOffsetY. -
Page 105: Color Space Conversion (Colortransformationcontrol)
This allows you to use user-configured 3x3 conversion tables to perform color space conversion. Caution: If you set the color space to XYZ or HSI, JAI Control Tool will not display the images captured by the camera properly. To display them properly, XYZ- or HSI-compatible image processing must be performed on the computer side. -
Page 106: Edge Enhancer, Color Enhancer
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Notes: About Color Space HSI Hue Value : 0° to 360° can be specified for 8bit, 10bit and 12bit output as follows. 8bit output: Can be specified in 2° increments - 0°(00000000) ～ 360°(10110100) 10bit output: Can be specified in 0.5°increments- 0°(0000000000) ～... -
Page 107: Sequencer Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Sequencer Function Related Setting Items: SequencerControl The Sequencer function lets you define up to 32 index combinations of exposure time, gain, ROI, and other settings which can be stepped through each time a trigger is received. -
Page 108: Sample Triggersequencer Mode Operation
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP SequencerFrameCount: This configures the number of frame acquisitions for the selected SequencerIndex. SequencerReset: During TriggerSequencer mode operation, this switches the index number to be executed to that specified in SequencerSetStart. -
Page 109: Commandsequencer Mode
The camera has non-volatile memory for users to store data. Refer to the technical note “Storing Data in On-Camera Flash Memory” for more information. Note: JAI strongly recommends saving images to the PC or other storage location because the non-volatile flash memory may not have enough memory size to store large data. -
Page 110: Pulse Generator
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Pulse Generator Related Setting Items: PulseGenerator Tips for using the Pulse Generator By using this function, any signal can be generated inside the camera. The following is an example of signal generation. -
Page 111: Counter And Timer Control Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Counter and Timer Control Function Related Setting Items: CounterAndTimerControl Note: This camera supports only the counter function. The counter function counts up change points in the camera’s internal signals using the camera’s internal counter and reads that information from the host side. -
Page 112: Internal Camera Blocks
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Note: You can reset a specific counter's count value by executing CounterReset[Counter0, Counter1, Counter2, Counter3]. Internal Camera Blocks To Use the Counter Function Configure the settings as follows. -
Page 113: Event Control Function
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Event Control Function Related Setting Items: EventControl The Event Control function is a function that outputs a signal change point inside the camera as information indicative of an event occurrence (event message). -
Page 114: Functions That Cannot Be Used Together
User Manual (Ver.1.4) - Main Functions GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Functions That Cannot Be Used Together The table below shows functions that cannot be used with ImageFormatControl, MultiROIControl SequencerControl setting items. Note: For functions that are not in this table, refer to the relevent function topic or setting item topic. -
Page 115: Setting List
Setting List This camera complies with GenICam. Each setting item name conforms to GenICam SFNC (Standard Features Naming Convention). (There are some JAI-specific setting items). Each setting item is an integer type (IInteger), a real type (IFloat), an element enumeration type (IEnumeration), a character string (IString), a logical type (IBoolean), and a category type (ICategory) or a command type (ICommand) for executing the function. -
Page 116: Feature Properties
DeviceControl Display/configure information related to the device. Default DeviceControl Item Setting Range Description Value DeviceScanType 0:Areascan Display the device scan type. "JAI DeviceVendorName Display the manufacturer name. Corporation" DeviceModelName Display the model name. See the DeviceManufacturerInfo Display the manufacturer information. - Page 117 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Default DeviceControl Item Setting Range Description Value Indicates the minor version number of the GenICam XML file of the DeviceTLVersionMinor 0 (Fixed) selected manifest entry Indicates the sub-minor version number of the GenICam XML file of the DeviceTLVersionSubMinor 0 (Fixed)
-
Page 118: Transportlayercontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP TransportLayerControl Display information on transport layer control. Setting TransportLayerControl Item Default Value Description Range 32 ～ PayloadSize 44728320 Display the payload size. 268369920 0: Geometry_1X_ The method of transferring images from the device at one time DeviceTapGeometry... -
Page 119: Imageformatcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ImageFormatControl Configure image format settings. Note: Refer to Functions That Cannot Be Used Together for usage restrictions. Setting Default Image Format Control Item Description Range Value... - Page 120 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Image Format Control Item Description Range Value Set the image width. Width Note: This setting is available only when ImageScalingMode=Off. WidthMax Related Topic: ROI Function value...
- Page 121 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Image Format Control Item Description Range Value BinningVerticalMode 0:Sum Set the processing method for vertical binning. Monochrome 0:Sum Related Topic: Binning 1:Average models only.
- Page 122 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Image Format Control Item Description Range Value ReverseX 0～ 1 Reverse pixels horizontally. Related Topic: Image Flip Function ReverseY 0～ 1 Reverse pixels vertically.
- Page 123 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Image Format Control Item Description Range Value GradationCompression Mode 0: Off 0: Off Enables the sensor's gradation compression function. 1: On Related Topic: Gradation Compression Mode...
-
Page 124: Multiroicontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP MultiROIControl Configure settings for Multi ROI. Related Topic: ROI Function (Multi ROI) Note: Refer to Functions That Cannot Be Used Together for usage restrictions. Setting Default Multi ROI Control Item... - Page 125 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Multi ROI Control Item Description Range Value Set the vertical offset for the selected Multi Roi index. Min: The minimum value of the range where each Index does not overlap. MultiRoiOffsetY Max: The maximum value of the range where each Index does not overlap.
-
Page 126: Acquisitioncontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP AcquisitionControl Configure image capture settings. Acquisition Control Setting Range Default Value Description Item AcquisitionMode 0:SingleFrame Related Topic: 1:MultiFrame 2:Continuous Select the image capture mode. Acquisition 2:Continuous Control... - Page 127 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Acquisition Control Setting Range Default Value Description Item Select the trigger signal source. 7: PulseGenerator0 8: PulseGenerator1 9: PulseGenerator2 10: PulseGenerator3 11: UserOutput0 12: UserOutput1 TriggerSource 24: Line5 Opt In...
- Page 128 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Acquisition Control Setting Range Default Value Description Item Set the exposure time (us). Note: The actual exposure time will consist of the image sensor’s offset duration (2.45us) added to the ExposureTime setting.
-
Page 129: Digitaliocontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP DigitalIOControl Configure settings for digital input/output. Related Topic: GPIO (Digital Input/Output Settings) Digital IO Control Setting Default Description Item Range Value Select the input/output to configure. 21: Line2 Opt Out1 24: Line5 Opt In1 26: Line7 Cxp In... - Page 130 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Digital IO Control Setting Default Description Item Range Value Select the line source signal for the item selected in LineSelector. 0: Off (Only when LineSelector is set to TimestampReset) 1: AcquisitionActive 2: FrameActive 4: ExposureActive...
- Page 131 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Digital IO Control Setting Default Description Item Range Value Display the input/output signal status. The state is shown with 16 bits. Bit assignments are as follows. bit0: Unused (Fixed to 0) bit1: Line2 LineStatusAll...
-
Page 132: Pulsegenerator
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP PulseGenerator Configure pulse generator settings. Related Topic: Pulse Generator Pulse Generator Item Setting Range Default Value Description Set the division value for the prescaler (12 bit) using 1 ～... - Page 133 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Pulse Generator Item Setting Range Default Value Description Set the start point of the Low interval in milliseconds. When the counter reaches this value, the output will be 0. The setting range varies depending on the ClockPreScaler PulseGeneratorEndPointMs value.
-
Page 134: Analogcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP AnalogControl Configure analog control settings. Default Analog Control Item Setting Range Description Value GainSelector Select the gain to configure. 0: Analog All 0:Analog 1: Digital Red Related Topic: Note: DigitalRed and DigitalBlue are avaliable only for color models. - Page 135 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Default Analog Control Item Setting Range Description Value Select the area for which to configure AWBAreaEnable. Note: Color models only. 0: Low Right 1: Low Mid-Right 2: Low Mid-Left 3: Low Left...
-
Page 136: Lutcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Default Analog Control Item Setting Range Description Value Gamma Set the gamma value. 0.45～1 0.45 Related Topic: Setting Range: 0.45, 0.50, 0.55, 0.60, 0.65, 0.75, 0.80, 0.90, 1.00 Gamma Function 0: Off LUTMode... -
Page 137: Autolevelcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP AutoLevelControl Configure AutoLevelControl. Related Topic: ALC (Automatic Level Control) Function Auto Level Control Setting Default Description Item Range Value Sets the channel to be used for ALC control reference. 1: Selected ALCControlReference 0: Peak Channel... - Page 138 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Auto Level Control Setting Default Description Item Range Value Allows confirmation of the AGC, ASC, and AWB convergence status. 0: Idle 1: Processing - Exposure Time 2: Processing - Gain AutoControlStatus 0: Idle...
-
Page 139: Colortransformationcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ColorTransformationControl Configure color transformation settings. Related Topic: Color Space Conversion (ColorTransformationControl) Color Transformation Control Item Setting Range Default Value Description 0:RGB ColorTransformationMode 1: HSI 0:RGB Set the output image format. -
Page 140: Imagingcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ImagingControl Configure other JAI functions. Setting Default Imaging Control Item Description Range Value VideoProcessBypassMode 0: Off 0: Off Enable/disable VideoProcessBypass mode. Related Topic:... -
Page 141: Shadingcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP ShadingControl Configure shading correction settings. Related Topic: Shading Correction Setting Default Shading Control Item Description Range Value Select the shading correction method. 0: Flat ShadingCorrectionMode 0: Flat Shading Shading... -
Page 142: Blemishcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP BlemishControl Configure settings for JAI white blemish correction. Related Topic: BlemishCompensation Setting Default Blemish Control Item Description Range Value Enable/disable blemish correction. 0: Disable all... - Page 143 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Blemish Control Item Description Range Value Display the Y coordinate (vertical pixel position) of the target blemish selected in BlemishCompensationIndex. You can also manually enter the Y BlemishCompensation coordinate of the blemish you want to correct.
-
Page 144: Sequencercontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP SequencerControl Configure sequencer settings. Related Topic: Sequencer Function Note: Refer to Functions That Cannot Be Used Together for usage restrictions. Setting Default Sequencer Control Item Description Range Value... - Page 145 User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Setting Default Sequencer Control Item Description Range Value SequencerGainDigitalRed 0.447～ 5.624 Set the Gain[DigitalRed] value for the selected SequencerIndex. SequencerGainDigitalBlue 0.447～ 5.624 Set the Gain[DigitalBlue] value for the selected SequencerIndex. 0: False SequencerLUTEnable 0: False...
-
Page 146: Counterandtimercontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP CounterAndTimerControl Configure counter settings. Note: This camera only supports the counter functions. Related Topic: Counter and Timer Control Function Counter and Timer Control Setting Default Description... -
Page 147: Eventcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP EventControl Configure settings for event control. Related Topic: Event Control Function Setting Default Event Control Item Description Range Value Select the event to send the event message. 0: AcquisitionStart 0: Acquisition EventSelector... -
Page 148: Usersetcontrol
User Manual (Ver.1.4) - Setting List GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP UserSetControl Configure user settings. Related Topic: Step 5: Saving the Settings User Set Control Setting Default Description Item Range Value Select the user settings. 0: Default - Invalid when executing UserSetSave UserSetSelector 0: Default... -
Page 149: Miscellaneous
GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Miscellaneous Troubleshooting Check the following before requesting help. If the problem persists, contact your local JAI distributor. Power Supply and Connections Issue: The POWER/TRIG LED remains lit amber and does not turn green, even after power is supplied to the camera. -
Page 150: Specifications
Monochrome Color Scanning System Progressive scan, 1 tap Synchronization Internal Interface CoaxPress v2.0/v1.1 Image Sensor Monochrome CMOS Bayer color CMOS GOX-5105M-CXP GOX-5105C-CXP >60 dB@10bit >60 dB@10bit AnalogGainAll:x1.0,Shutter:OFF, AnalogGainAll:x1.0,Shutter:OFF, SensorDigitizationBits=12bit, SensorDigitizationBits=12bit, Bayer10, Frame Rate: 112.3fps Mono10, Frame Rate: 112.3fps GOX-8105M-CXP GOX-8105C-CXP >60 dB@10bit... - Page 151 User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Item Monochrome Color GOX-5105MC-CXP 1/1.8 inch 6.8 mm x 5.7 mm (8.82mm diagonal) GOX-8105MC-CXP 2/3 inch 7.8 mm x 7.8 mm (11.05mm diagonal) GOX-12405MC-CXP 1/1.1 inch 11.3 mm x 8.2 mm (14.00mm diagonal) Image Size (Effective Image)
- Page 152 User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Item Monochrome Color Mono10, BayerRG10, BayerGR10, BayerGB10, BayerBG10 GOX-5105MC-CXP: 89 fps GOX-8105MC-CXP: 57 fps GOX-12405MC-CXP: 37 fps GOX-16205MC-CXP: 29 fps GOX-20405MC-CXP: 23 fps GOX-24505MC-CXP: 19 fps RGB10 GOX-5105MC-CXP: 29 fps Acquisition Frame Rate...
- Page 153 User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Item Monochrome Color GOX-5105MC-CXP: 2472 x 2064 GOX-8105MC-CXP: 2856 x 2848 Digital Image Output Format - GOX-12405MC-CXP: 4128 x 3008 Full GOX-16205MC-CXP: 5328 x 3040 GOX-20405MC-CXP: 4512 x 4512 GOX-24505MC-CXP: 5328 x 4608 GOX-5105MC-CXP: 96(48) to 2472 (1236), step 8(4)
- Page 154 User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Item Monochrome Color GOX-5105M-CXP: 2472 GOX-8105M-CXP: 2856 Digital Image Output Format: GOX-12405M-CXP: 4128 Binning (H) = 1 and GOX-16205M-CXP: 5328 FD2x2BinningMode = Off GOX-20405M-CXP: 4512...
- Page 155 User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Item Monochrome Color Digital I/O LineSelector (6P): GPIO IN / GPIO OUT Default Level: 8LSB@8bit All (Mono/Color): -133 ~ +255 LSB Black Level Adjustment Red (Color): -64 ~ +64 LSB Blue (Color): -64 ~ +64 LSB Resolution Adjustment: 1LSB@12bit...
-
Page 156: Package Contents
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Package Contents Camera (1) Sensor protection cap (1) Dear customer (sheet) (1) Optional Accessories (Sold Separately) MP-46 Tripod Adapter Plate Notes: Design and specifications are subject to change without notice. Approximately 30 minutes of warm-up are required to achieve these specifications. -
Page 157: Spectral Response (Gox-5105M-Cxp/Gox-5105C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-5105M-CXP/GOX-5105C-CXP) - 157 -... -
Page 158: Spectral Response (Gox-8105M-Cxp/Gox-8105C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-8105M-CXP/GOX-8105C-CXP) - 158 -... -
Page 159: Spectral Response (Gox-12405M-Cxp/Gox-12405C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-12405M-CXP/GOX-12405C-CXP) - 159 -... -
Page 160: Spectral Response (Gox-16205M-Cxp/Gox-16205C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-16205M-CXP/GOX-16205C-CXP) - 160 -... -
Page 161: Spectral Response (Gox-20405M-Cxp/Gox-20405C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-20405M-CXP/GOX-20405C-CXP) - 161 -... -
Page 162: Spectral Response (Gox-24505M-Cxp/Gox-24505C-Cxp)
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Spectral Response (GOX-24505M-CXP/GOX-24505C-CXP) - 162 -... -
Page 163: Dimensions
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Dimensions Notes: Dimensional tolerance: ± 0.3mm Unit: mm - 163 -... -
Page 164: Comparison Of The Decibel Display And Multiplier Display
User Manual (Ver.1.4) - Miscellaneous GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Comparison of the Decibel Display and Multiplier Display Decibels [dB] Multipliers [X] Remarks 0.501 0.562 0.631 0.708 0.794 0.891 1.122 1.259 1.413 1.585 1.778 1.995 2.239 2.512... -
Page 165: User's Record
63.096 70.795 79.433 89.125 112.202 125.893 User's Record Camera type: Go-X Series Global Shutter CoaXPress interface Model name: …………… Revision: …………… Serial No: …………… Firmware version: …………… For camera revision history, please contact your local JAI distributor. - 165 -... -
Page 166: Revision History
User Manual (Ver.1.4) - Revision History GOX-5105MC-CXP | GOX-8105MC-CXP | GOX-12405MC-CXP | GOX-16205MC-CXP | GOX-20405MC-CXP | GOX-24505MC-CXP Revision History Device Revision Date Changes Version Updated the Exposure Mode section (Specifications). 2022/06/22 DV0100 Corrected the external input/output circuit diagrams 2022/06/06 DV0100 (Recommended Circuit Diagram (Reference Examples)).
Need help?
Do you have a question about the GOX-5105M-CXP and is the answer not in the manual?
Questions and answers
