Spectralink IP-DECT Server 400/6500 and DECT Server 2500/8000 Synchronization and Deployment Guide

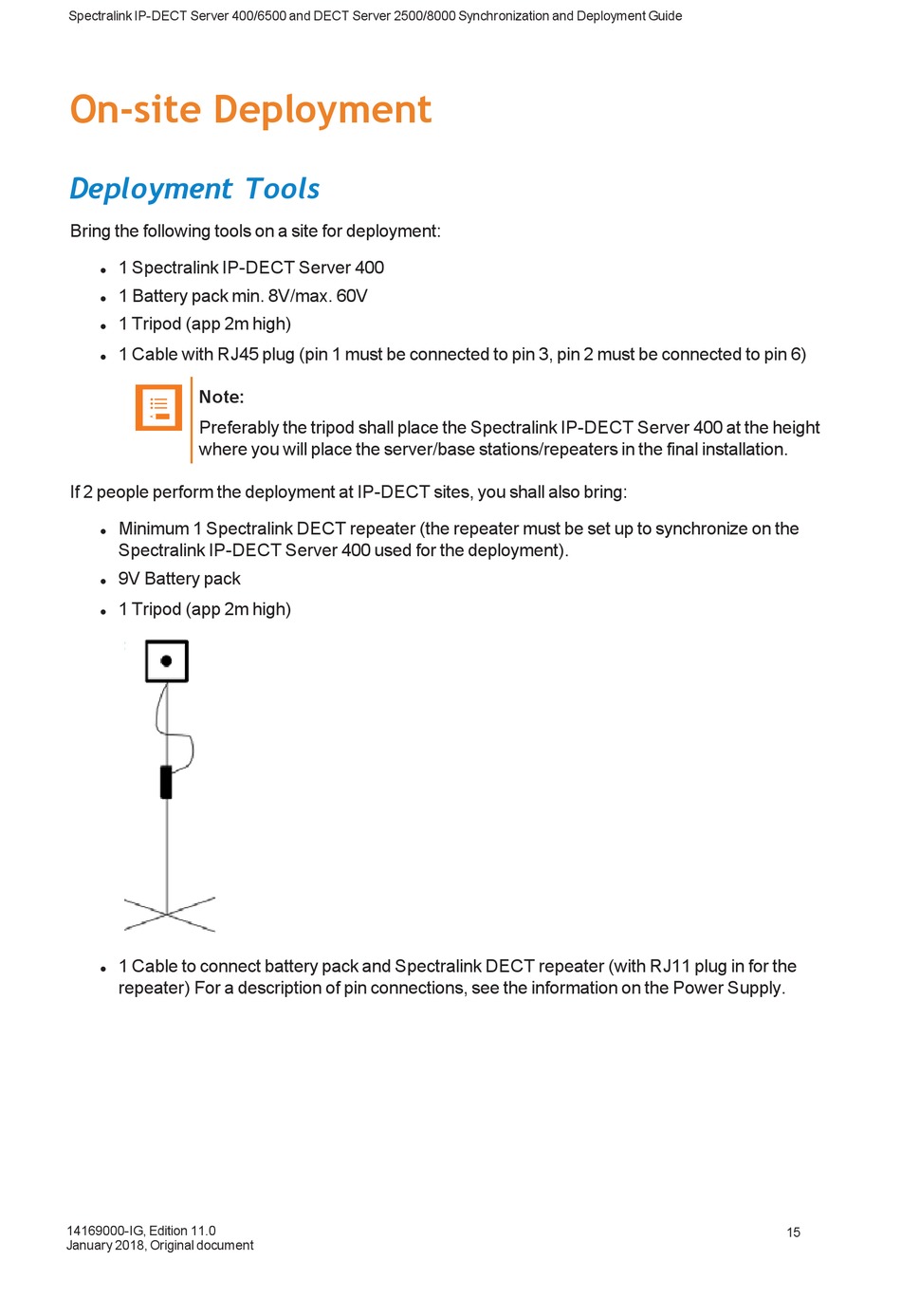

On-site Deployment

Bring the following tools on a site for deployment:

1 Spectralink IP-DECT Server 400

1 Battery pack min. 8V/max. 60V

1 Tripod (app 2m high)

1 Cable with RJ45 plug (pin 1 must be connected to pin 3, pin 2 must be connected to pin 6)

Note:

Preferably the tripod shall place the Spectralink IP-DECT Server 400 at the height

where you will place the server/base stations/repeaters in the final installation.

If 2 people perform the deployment at IP-DECT sites, you shall also bring:

Minimum 1 Spectralink DECT repeater (the repeater must be set up to synchronize on the

Spectralink IP-DECT Server 400 used for the deployment).

9V Battery pack

1 Tripod (app 2m high)

1 Cable to connect battery pack and Spectralink DECT repeater (with RJ11 plug in for the

repeater) For a description of pin connections, see the information on the Power Supply.

14169000-IG, Edition 11.0

January 2018, Original document
