Installing the legs

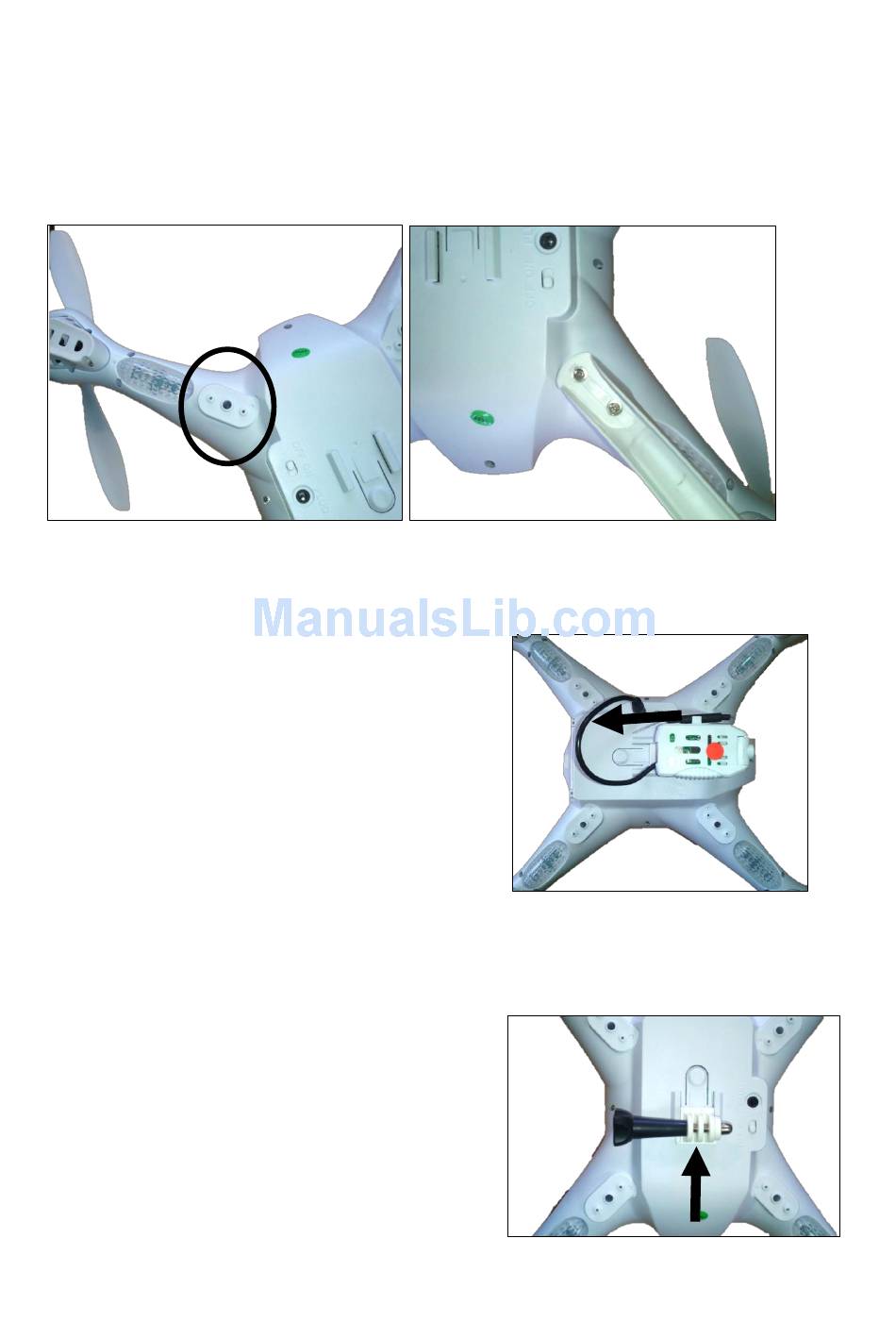

The legs should be positioned on the mounting points on the underside of the
drone as per the first image below. They should then be fastened to the drone
using 2 screws per leg (Supplied).

Installing the camera (Optional)

If the camera has been purchased slide it
onto the camera mount on the base of the
drone, sliding from the front until it clicks
into place. Then plug the black lead from
the camera into the port labelled plug on
the underside of the drone.
Removal is the opposite process, but the
safety button must be pressed to release
the camera from the drone before sliding

Installing the Action Camera Mount

Slide the action camera mount onto the
camera mounting point on the underside
of the drone, sliding from the front, until it
clicks into place. The back fixing should be
unscrewed, the camera attached, and then
the fixing used to lock the camera into
position.
