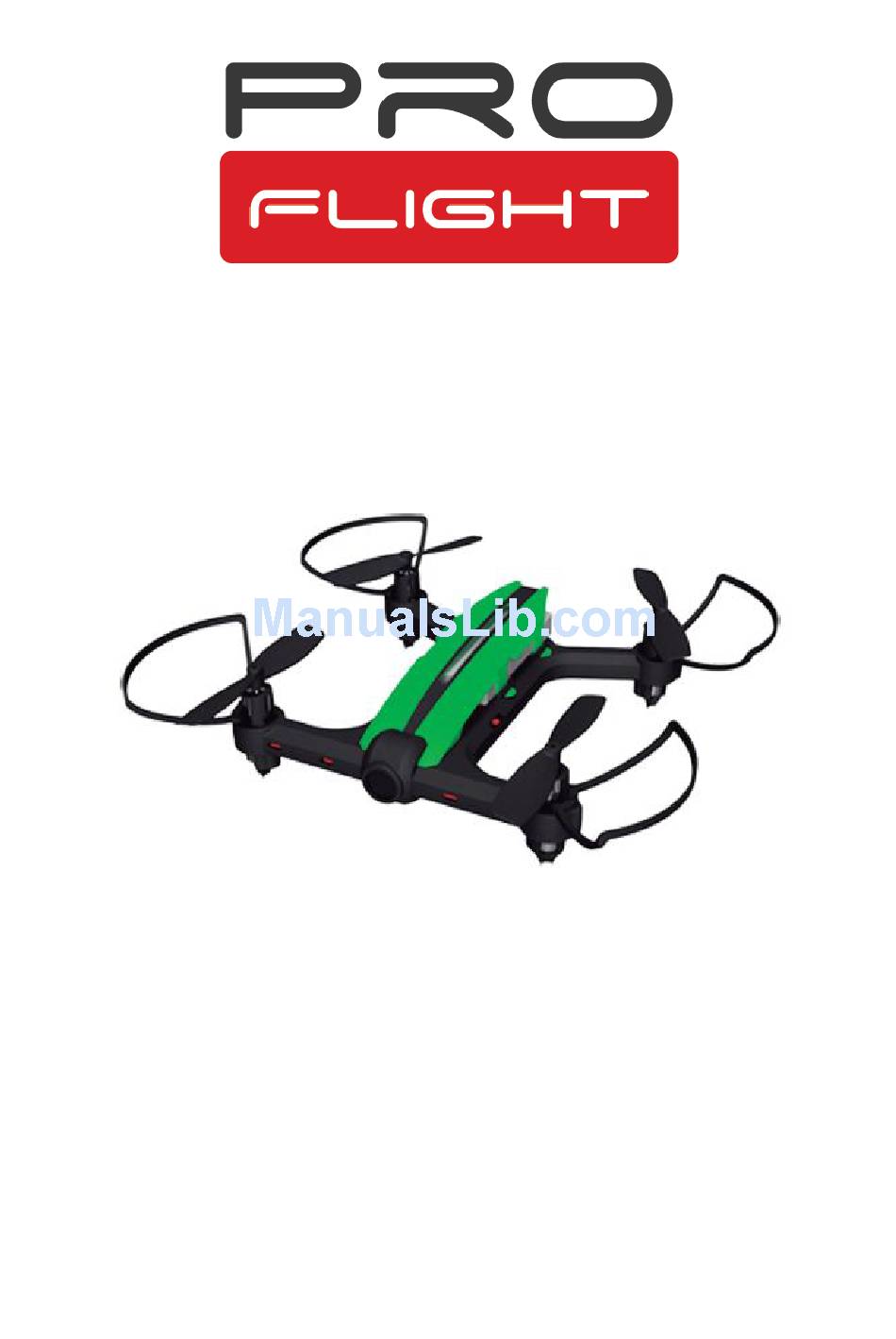

- Page 1 Challenger User Manual Model: PFBD92 Thank you for choosing ProFlight. Please read this user manual before using this drone and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS Safety…………………………………………………………………………………3 Battery Charging…………………………………………………………………4 Transmitter Diagram…………………………………………………………..5 Binding of Radio Transmitter and Receiver…………………………6 Propeller Installation…………………………………………………………..6 Preparing for First Flight……………………………………………………..7 Binding of Radio Transmitter and Receiver…………………………6 Sensitivity…..………………………………………………………………………7 Flight Instructions………………………………………………………………7 Aircraft Functions & Features…………………………………………….9 Camera………………………………………………………………………………9 App…………………………………………………………………………………….10 2 of 11... -
Page 3: Safety
SAFETY Read the entire instruction manual and familiarise yourself with the product and all its features before operating. Failure to operate the product correctly can result in damage to the product, surroundings or even serious injury. This product is not a toy and must be operated with caution and common sense. It requires some basic mechanical knowledge. -
Page 4: Battery Charging
Do not store battery or drone in a car or direct sunlight. If stored in a hot environment, the battery can be damaged or even catch fire. Never use any other type of battery charger other than the one supplied with the drone. -
Page 5: Transmitter Diagram
Transmitter Diagram 1. Speed selector Manual Trim B 2. Smartphone holder Camera LED 3. Camera button Right control stick / Flip 4. Power LED & Roll Button 5. Left control stick 10. Manual Trim C 6. Manual Trim A 11. Manual Trim D The transmitter requires 4 x 1.5V “AAA”... -
Page 6: Binding Of Radio Transmitter And Receiver
Binding the Transmitter to the Aircraft 1. Connect the battery to the aircraft, the lights on the aircraft will illuminate. 2. Set the left control stick all the way down and then turn on the controller, it will beep and the lights will illuminate. 3. -
Page 7: Preparing For First Flight
Preparing for First Flight 1. Make sure both the transmitter and aircraft batteries are sufficiently charged. 2. Find a suitable place to fly the aircraft, away from people, buildings and vehicles. 3. Make sure the throttle (left) stick is fully down before turning on the transmitter. - Page 8 If the aircraft drifts in a particular direction you can trim the controls using the trim buttons. Select the trim key opposite the direction of drift. Should you need to reset the drone after an impact for example, set the aircraft on a level surface and with the transmitter and aircraft turned on and connected, move both control sticks to the bottom left and hold for 10 seconds.
-
Page 9: Aircraft Functions & Features
Aircraft Functions and Features Flips To perform a flip or roll, click the right control stick and then move the right control stick in the direction you want to perform the flip or roll. If the aircraft is in fast/acrobatic speed setting, you do not need to click the right control stick. -
Page 10: App
A Micro SD card can be inserted into the underside of the aircraft (near the antenna). To take a still image, click the camera button. The camera LED will flash. To start recording video, press and hold the camera button for 3 seconds. The camera LED will start to blink continuously as long as the camera is recording. - Page 11 NOTE: The Wifi module on the aircraft can be turned on/off using the small switch on the left hand side of the body of the aircraft. With the switch forwards the Wifi will be turned off (and will not connect to the app), with it switch backwards it will be turned on (and visible to your mobile device).
