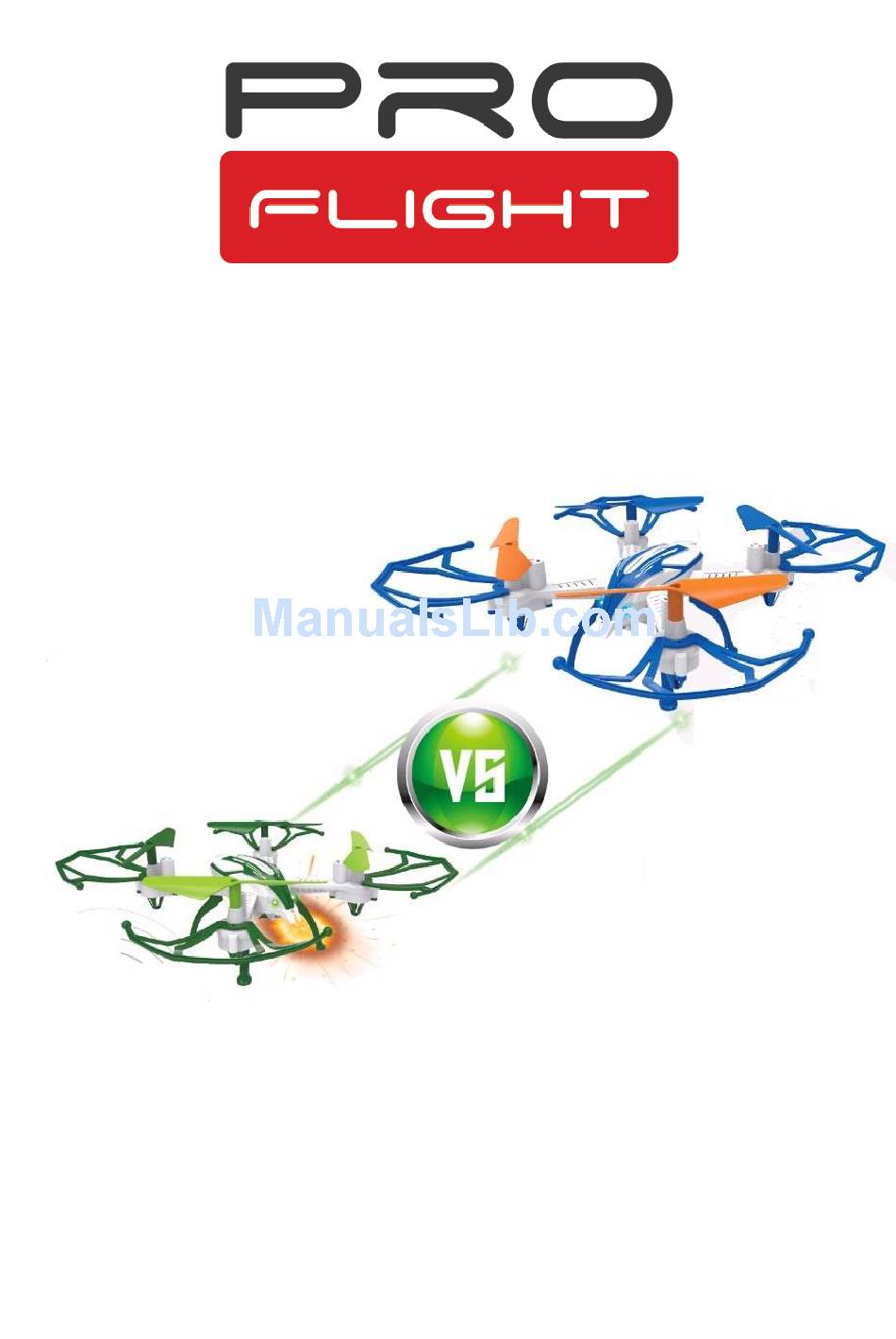

- Page 1 Sky Fighters Twin Pack User Manual Model: PFBD101 Thank you for choosing ProFlight. Please read this user manual before using this drone and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS Safety…………………………………………………………………………………3 Battery Charging…………………………………………………………………4 Installing Controller Batteries……………………………………………..5 Transmitter Diagram…………………………………………………………..5 Hot to change the Propellers….…………………………………………..6 Preparing for First Flight……………………………………………………..6 Binding of Radio Transmitter and Receiver…………………………7 Flight Instructions……………………………………………………………….8 Flight Adjustment……………………………………………………………….9 Aircraft Functions & Features…………………………………………….10 Troubleshooting Guide………………………………………………………13 Support………………………………………………………………………………13 2 of 13... -
Page 3: Safety
SAFETY Read the entire instruction manual and familiarise yourself with the product and all its features before operating. Failure to operate the product correctly can result in damage to the product, surroundings or even serious injury. This product is not a toy and must be operated with caution and common sense. It requires some basic mechanical knowledge. -
Page 4: Battery Charging
Do not store battery or drone in a car or direct sunlight. If stored in a hot environment, the battery can be damaged or even catch fire. Never use any other type of battery charger other than the one supplied with the drone. -
Page 5: Installing Controller Batteries
Installing the Controller Batteries Unscrew the battery cover and insert 4 x AA Batteries in each controller, making sure the correct polarity is followed, before reattaching the battery cover Transmitter Diagram 5 of 13... -
Page 6: Hot To Change The Propellers
How to change the propellers Using a screwdriver, untighten the screw holding the propeller in place and remove the propeller. Insert the new propeller over the motor spindle and use a screwdriver to tighten the screw. It is important for the correct blade to be placed on the correct motor or the aircraft will not fly correctly. -
Page 7: Binding Of Radio Transmitter And Receiver
Binding of Radio Transmitter & Receiver When pairing up, the below procedure should be followed one drone at a time. Do not turn on the second drone, until the first has been paired. 1. Place the aircraft on a flat surface and insert the lead from the battery into the socket on the rear of the drone. -
Page 8: Flight Instructions
Flight Instructions Before your first flight make sure you are familiar with the controls of the aircraft. Left Joystick – Throttle & Rudder Right Joystick – Elevator & Aileron The aircraft can only take off and land by pressing the take off / land button (click once to take off and once to land). -
Page 9: Flight Adjustment
Flight Adjustment When you lift the Drone into the air, if the aircraft drifts in a particular direction you can trim the controls using the trim buttons. Select the trim key opposite the direction of drift. Trimming is always needed before your first flight. -
Page 10: Aircraft Functions & Features
Aircraft Functions and Features One Key Return The aircraft can be made to return in a fixed direction by pressing and holding the return button for 3 seconds. When the aircraft is turned on it will remember the direction it is oriented and upon activation of the Smart Return feature it will fly back in that direction. - Page 11 Speed Control The drone has 3 speed settings. It will initially be set at 25%. By pressing the right joystick the speed of the drone can be adjusted. The controller will bleep to indicate the speed it is set at after the button has been pressed.
- Page 12 The First time your drone is hit, it will rotate clockwise 180 degrees before resuming normal function The Second time your drone is hit, it will rotate anti-clockwise 180 degrees before resuming normal function The Third time your drone is hit, it will perform a single flip, before resuming normal function The Forth time your drone is hit, the battle is over, and the drone will rotate clockwise 180 degrees, before landing, ready for the next battle...
-
Page 13: Troubleshooting Guide
Troubleshooting Problem Cause Solution 1 The lights on the aircraft are 1. The aircraft and transmitter 1. Repeat the connection flashing but it does not are not connected. procedure. respond to the control 2. Insufficient battery power. 2. Recharge the battery. 2 The aircraft blades turn but it 1.
