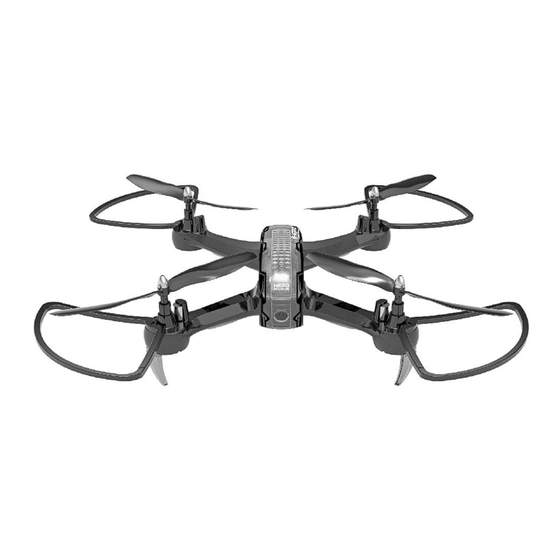

- Page 1 TRACER User Manual Model: PFBD97 Thank you for choosing ProFlight. Please read this user manual before using this drone and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS Safety…………………………………………………………………………………3 Battery Charging…………………………………………………………………4 Fitting the Controller Batteries……………………………………………5 Transmitter Diagram…………………………………………………………..5 Fitting Propeller Guards………………………………………………………6 Propeller Installation…………………………………………………………..6 Preparing for First Flight……………………………………………………..7 Binding of Radio Transmitter and Receiver…………………………7 Flight Instructions.………………………………………………………………8 Flight Adjustment.………………………………………………………………9 Aircraft Functions & Features…………………………………………….10 Camera………………………………………………………………………………11 App…………………………………………………………………………………….11 Troubleshooting Guide………………………………………………………13 Support………………………………………………………………………………14 2 of 14... -
Page 3: Safety
SAFETY Read the entire instruction manual and familiarise yourself with the product and all its features before operating. Failure to operate the product correctly can result in damage to the product, surroundings or even serious injury. This product is not a toy and must be operated with caution and common sense. It requires some basic mechanical knowledge. -
Page 4: Battery Charging
Do not store battery or drone in a car or direct sunlight. If stored in a hot environment, the battery can be damaged or even catch fire. Never use any other type of battery charger other than the one supplied with the drone. -
Page 5: Fitting The Controller Batteries
When the charger is plugged into the USB slot (with the battery attached), and the battery is charging, the LED will illuminate RED. When the battery is fully charged the light will go out. Charging should take around 90 minutes. DO NOT leave the battery unattended whilst charging. -
Page 6: Fitting Propeller Guards
Fitting Propeller Guards It is recommended that until you are fully comfortable with the controls and handling of the aircraft that you install the propeller guards. These will protect the propellers and aircraft in the event of a crash or hard landing. Place the propeller guard over the outside of the propeller and attach by locating the 2 pins on the guard into the holes in the arm... -
Page 7: Preparing For First Flight
Preparing for First Flight 1. Make sure both the transmitter and aircraft batteries are sufficiently charged. 2. Find a suitable place to fly the aircraft, away from people, buildings and vehicles. 3. Make sure the throttle stick is centred before turning on the transmitter. Binding of Radio Transmitter &... -
Page 8: Flight Instructions
Flight Instructions Before your first flight make sure you are familiar with the controls of the aircraft. Left Joystick – Throttle & Rudder Right Joystick – Elevator & Aileron If the aircraft drifts in a particular direction you can trim the controls using the trim buttons. -
Page 9: Flight Adjustment
Flight Adjustment When you lift the Drone into the air, If the aircraft drifts or turns in a particular direction you can trim the controls using the trim buttons. Press the corresponding button as below to adjust the trim . Trimming is always needed before your first flight. -
Page 10: Aircraft Functions & Features
Aircraft Functions and Features One Key Return The aircraft can be made to return in a fixed direction by pressing and the return button. When the aircraft is turned on it will remember the direction it is oriented and upon activation of the One Key Return feature it will fly back in that direction. -
Page 11: Camera
Camera Insert a micro SD card (Not Supplied) into the slot which is located below the battery. The camera will record video while flying onto the smart device and SD card (optional). When the flight is complete, the SD card can be removed and the video reviewed on a suitable media player. - Page 12 the view of the camera. You can either use the on screen controls or the controller to control all aspects of the aircraft. Exit 10. Not Used Take photo 11. Left Control Stick Start / Stop Recording Video 12. Right control stick Video / Photo Playback 13.
-
Page 13: Troubleshooting Guide
Troubleshooting Problem Cause Solution 1 The lights on the aircraft are 1. The aircraft and transmitter 1. Repeat the connection flashing but it does not are not connected. procedure. respond to the control 2. Insufficient battery power. 2. Recharge the battery. 2 The aircraft blades turn but it 1. -
Page 14: Support
