ProFlight PFBD303 User Manual

Folding drone with hd camera and app control
Hide thumbs Also See for PFBD303:
Table of Contents

Advertisement

Quick Links

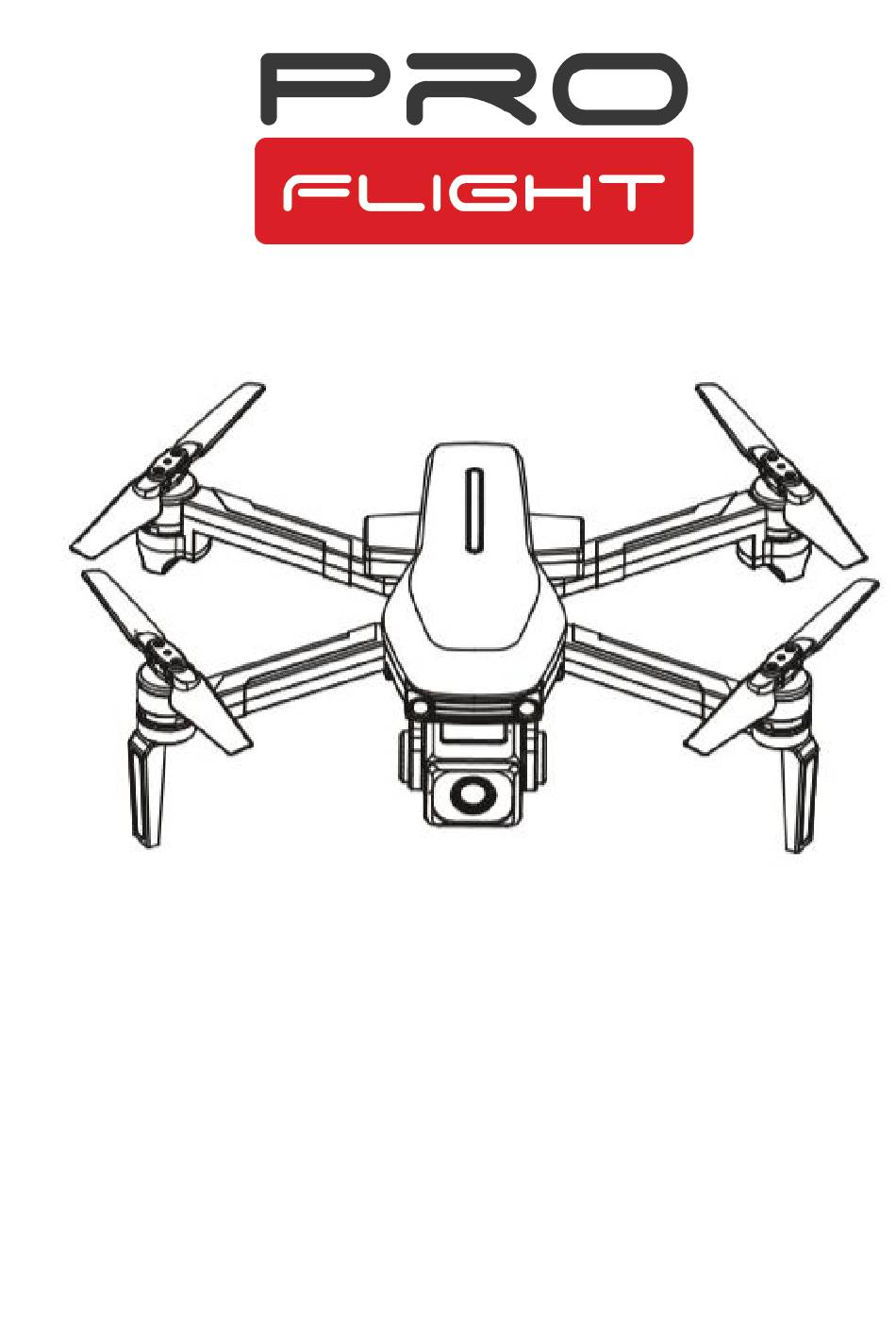

USER MANUAL
FOLDING DRONE WITH HD CAMERA
AND APP CONTROL
PFBD303
Thank you for choosing ProFlight.
Please read this user manual before using this drone and
keep it safe for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFBD303 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProFlight PFBD303

Summary of Contents for ProFlight PFBD303

  • Page 1 USER MANUAL FOLDING DRONE WITH HD CAMERA AND APP CONTROL PFBD303 Thank you for choosing ProFlight. Please read this user manual before using this drone and keep it safe for future reference.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PREPARING FOR FIRST FLIGHT BATTERY INFORMATION CONTROLLER BATTERY INSTALLATION DRONE DIAGRAM CONTROLLER DIAGRAM CONTROLLER FUNCTIONS FOLDING THE ARMS PROPELLER REPLACEMENT PREPARING FOR FLIGHT HOW TO CONTROL YOUR DRONE APP CONNECTION CONTROLLING THE DRONE VIA THE APP TROUBLESHOOTING SUPPORT TECHNICAL SPECIFICATION...

  • Page 3: Safety

    SAFETY WARNINGS • Read the entire instruction manual and familiarise yourself with the product and all its features before operating. • Failure to operate the product correctly can result in damage to the product, surroundings or even serious injury. • This product is not a toy and must be operated with caution and common sense. It requires some basic mechanical knowledge.
  • Page 4 SAFETY PRECAUTIONS Only fly in an Ensure good Keep within Fly at a height open space GPS signal line of sight below 80m When flying ensure that the drone is kept away from other people, trees, electric wires, buildings, airports or signal transmitting tower etc. Ensure that the weather conditions are suitable for flying.

  • Page 5: Preparing For First Flight

    PREPARING FOR FIRST FLIGHT 1. Fully read and understand the safety warnings, and precautions. 2. Make sure both the controller and aircraft batteries are sufficiently charged. 3. Find a suitable place to fly the aircraft, away from people, buildings and vehicles.

  • Page 6: Controller Battery Installation

    INSTALLING THE CONTROLLER BATTERIES Unclip the battery cover from the rear of the controller and insert 4x AA batteries, making sure the correct polarity is followed. Once the batteries are correctly installed, the battery cover must be re-fitted. AA batteries are not supplied.

  • Page 7: Controller Diagram

    CONTROLLER DIAGRAM 1. SPEED MODE 2. PHOTO/VIDEO 3. GYROSCOPIC CORRECTION 4. GPS 5. POWER 6. HEADLESS MODE 7. ONE BUTTON TAKE OFF /ONE BUTTON LAND 8. LENS ANGLE ADJUSTMENT 9. ONE BUTTON RETURN 10. COMPASS CORRECTION REMOTE CONTROL SIGNAL NUMBER OF GPS SATELLITES DRONE BATTERY LEVEL REMOTE BATTERY LEVEL VIDEO...

  • Page 8: Controller Functions

    CONTROLLER FUNCTIONS SPEED Use the rocker to change the flight mode from low speed (Beginner) to high speed (Advanced). PHOTO Press once to take a photo, press and hold to start recording a video. COMPASS CORRECTION Press the compass correction button and the drone LED will flash quickly. Pick up the drone and hold it around 1 meter from the ground and with the base facing the ground.

  • Page 9: Folding The Arms

    FOLDING THE ARMS Fold the front arms backwards until they sit close to the body of the drone. Fold the rear arm down until it is parallel to the body. DO NOT FORCE THE ARMS AWAY FROM THE BODY AS THIS MAY RESULT IN DAMAGE.

  • Page 10: Preparing For Flight

    PREPARING FOR FLIGHT PAIR THE CONTROLLER Press the power button on the drone once and then and hold the battery power switch, the LED on the drone will flash. Then press the power button on the controller and the flashing light on the drone will become slower, indicating that pairing is complete.

  • Page 11: How To Control Your Drone

    HOW TO CONTROL YOUR DRONE Down Left Right Turn Turn Back Forward Fly Left Right...

  • Page 12: App Connection

    APP CONNECTION Install the RC GPS app on your device by scanning the relevant QR code below. ANDROID 1. Turn on the aircraft. 2. The drone will automatically create a WiFi hotspot. 3. Within the WiFi settings on your phone find the drones hotspot.

  • Page 13: Controlling The Drone Via The App

    CONTROLLING THE DRONE VIA THE APP First press the unlock button to unlock the drone for flight. Point Multi point surround Video focus Joystick Lens reverse 3D VR Media Flight record flight Battery Level flight Joystick On/Off Tap to switch between phone control or remote control. Reverse the lens Press to rotate the lens and change the view point.
  • Page 14 Menu Return Menu Press to return to the main interface. Return In GPS mode, click this button and the GPS Follow aircraft will follow the remote control to fly. In GPS mode, click to return the drone Return to your signal location. Take Off Press on the aircraft to start taking off.

  • Page 15: Troubleshooting

    Zoom Camera up Camera down Find Drone Flight unlock Gesture Flight Unlock Press this button to unlock the drone for flight, this will start the propellers. Gesture Use gestures to take pictures and video. Zoom Use to zoom in and out of the current image or video displayed on screen.

  • Page 16: Support

    DISPOSAL Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils.
