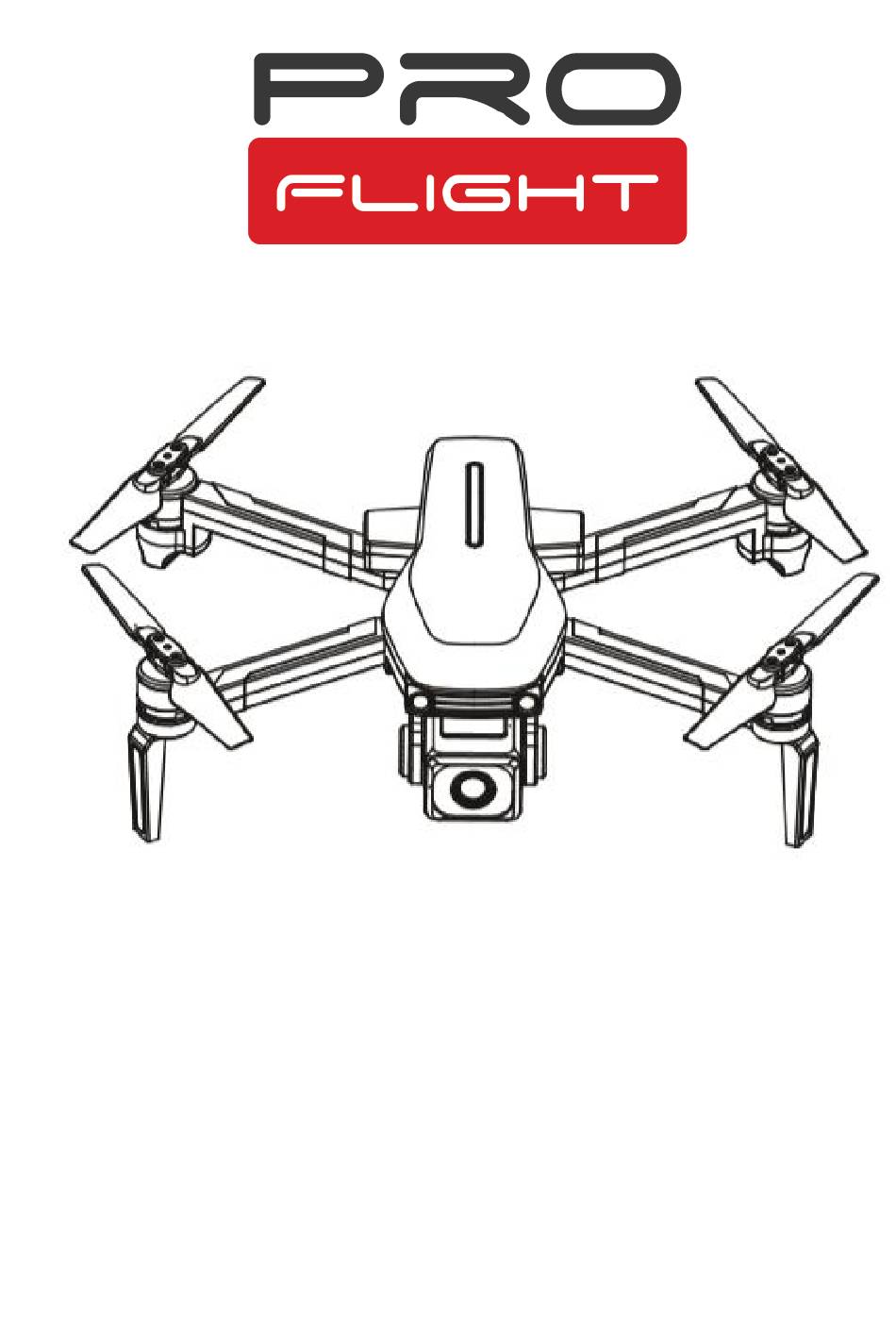

- Page 1 USER MANUAL FOLDING DRONE WITH HD CAMERA AND APP CONTROL PFBD303 Thank you for choosing ProFlight. Please read this user manual before using this drone and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION WHAT IS SUPPLIED REMOVING THE BATTERY FROM THE DRONE CHARGING THE BATTERY REFITTING THE BATTERY CONTROLLER BATTERY INSTALLATION DRONE DIAGRAM CONTROLLER DIAGRAM HOW TO CONTROL YOUR DRONE USING THE CONTROLLER INSERTING A MEMORY CARD PREPARING FOR FLIGHT AFTER FLIGHT REPLACEMENT OF PROPELLERS INSTALLING THE APP... -
Page 3: Safety Information
SAFETY INFORMATION • Read the entire instruction manual and familiarise yourself with the product and all its features before operating. • Failure to operate the product correctly can result in damage to the product, surroundings or even serious injury. • This product is not a toy and must be operated with caution and common sense. It requires some basic mechanical knowledge. - Page 4 SAFETY PRECAUTIONS Only fly in an Ensure good Keep within Fly at a height open space GPS signal line of sight below 80m When flying ensure that the drone is kept away from other people, trees, electric wires, buildings, airports or signal transmitting tower etc. Ensure that the weather conditions are suitable for flying.
-
Page 5: What Is Supplied
WHAT IS SUPPLIED Strap for Hard Case Drone Hard Case Propeller User Controller Replacement Manual USB Battery Battery (x1) Charger Note: The hard case has space for 2 x batteries, spare batteries are available from the retailer. -
Page 6: Removing The Battery From The Drone
REMOVING THE BATTERY FROM THE DRONE With the rear of the drone on a flat surface, slide the two tabs on the side of the drown downwards at the same time. While both the tabs are pressed down, twist the top of the battery (By the power button) out of the drone. -
Page 7: Refitting The Battery
REFITTING THE BATTERY Slide the rear of the battery into the battery compartment on the base of the drone at an angle of around 30 – 45 degrees. Ensure the notch on the rear of the battery slides under the ledge at the rear of the battery (See the diagram on the previous page for location of... -
Page 8: Drone Diagram
DRONE DIAGRAM Lights Propellers Brushless Motors Camera (MicroSD slot in rear) Front Indicators Battery (On Underside) Rear Indicators... -
Page 9: Controller Diagram
CONTROLLER DIAGRAM Antenna Camera Angle Dial Speed Dial Phone Holder One Button Photo/Video Button Return Compass Gyroscopic Correction Button Headless Mode Right Joystick One Button Left Display Take Off/Land Joystick Button Connection Power Indicator Indicator Button Headless Mode Indicator DISPLAY 1. -
Page 10: How To Control Your Drone
HOW TO CONTROL YOUR DRONE DOWN ROTATE ROTATE LEFT RIGHT BACK FORWARDS LEFT RIGHT... -
Page 11: Using The Controller
USING THE CONTROLLER POWER Once the drone is turned on, press the power button on the drone to turn it on. The controller will automatically connect to the drone, and once successfully connected the drone will change from flashing quickly to flashing slowly. JOYSTICKS Use to control the drone, following the information on the previous page. -
Page 12: Inserting A Memory Card
ONE BUTTON RETURN BUTTON Press the return button and the controller will emit a sound. The aircraft will return home regardless of the current direction. Press again to cancel the function. HEADLESS MODE BUTTON Press the HEADLESS MODE button to change into headless flight. This will make the aircraft fly without a front or rear. -
Page 13: Preparing For Flight
PREPARING FOR FLIGHT • Before flying the drone, ensure the pilot has fully read the instructions, and understands how to control the drone during flight. • Visually inspect the drone for signs of damage. Do not operate the drone if damaged. -
Page 14: After Flight
AFTER FLIGHT Once your flight has completed, and the propellers have stopped spinning 1) Pick up the drone and hold the power button on the battery to turn the drone off. 2) Fold the arms of the drone until they sit close to the body of the drone. The rear legs must be folded first, followed by the front legs. -
Page 15: Installing The App
INSTALLING THE APP Install the RC GPS app on your device by scanning the relevant QR code below. Alternatively the APP can be downloaded directly from your chosen app store. ANDROID CONNECTING USING THE APP Before connecting, it is advisable to turn off mobile data on your phone. The pictures provided are for guidance only, the steps may differ slightly depending on the operating system of the phone used. - Page 16 4. The drone will automatically create a WiFi hotspot. Swipe down from the top of your screen to access the available WiFi Networks. Select the WiFi network created by the drone, which will be in the format: XYS-XXXX- XXXXXX 5. This will connect to the WiFi hotspot, no password is required. 6.
-
Page 17: Controlling The Drone Via The App
CONTROLLING THE DRONE VIA THE APP First press the unlock button to unlock the drone for flight. The propellers will start to spin. If this does not happen, swipe from the top of your screen, turn off your phone’s WiFi and reconnect using steps 4 – 8 on the previous page. Point Multi point surround... - Page 18 Menu Return Menu Return Press to return to exit the control screen. In GPS mode, click this button and the GPS Follow aircraft will follow the remote control to fly. In GPS mode, click to return the drone to Return your signal location.
- Page 19 Camera down Flight unlock Gesture Zoom Camera up Find Drone Flight Unlock Press this button to unlock the drone for flight, this will start the propellers. Gesture Use gestures to take pictures and video. Zoom Use to zoom in and out of the current image or video displayed on screen.
-
Page 20: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1 The lights on the aircraft are 1. The aircraft and 1. Repeat the connection flashing but it does not transmitter are not procedure. respond to the control connected. 2. Recharge the battery. 2. Insufficient battery power. -
Page 21: Support
UK Support http://www.proflightuk.co.uk/support/ If you have been through the troubleshooting, and the unit is failing to operate, our service line can be contacted on: 0330 390 3062 Office hours: 9AM - 5PM Monday to Friday www.proflightuk.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA TECHNICAL SPECIFICATION...
