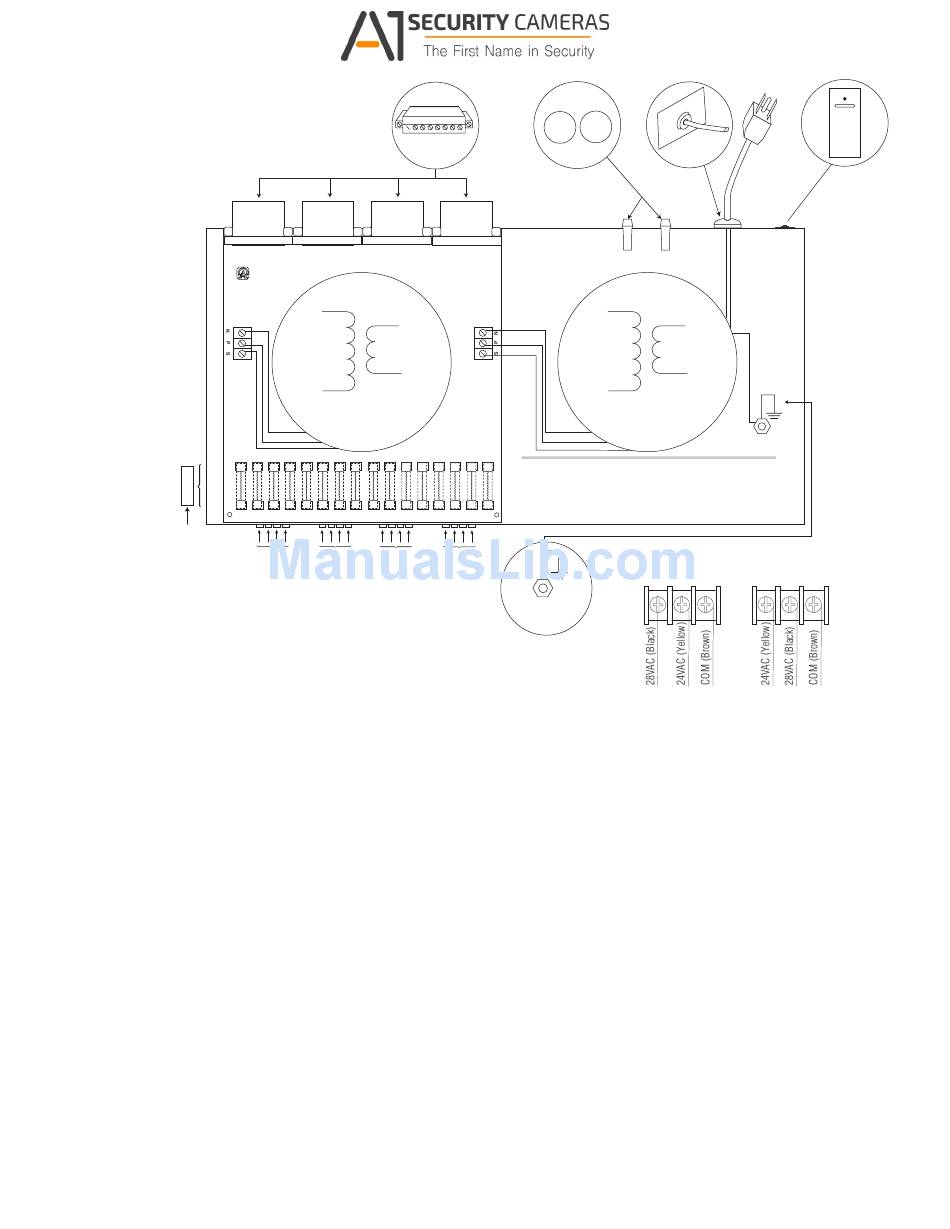

Fig. 1
Class 2 Rated Power Limited Outputs.
Except for R2416UL, R2416300UL,
R2416600UL and R2416ULCB when
set for 28VAC.
ALTRONIX CORP.
BROOKLYN, NY 11220
MADE IN USA
PTC1
Used
on PTC
Models
5. Set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
6. Measure output voltage before connecting devices. This helps avoid potential damage.
All terminals with common suffix (P) "1P, 2P..." are the same polarity.
7. Set power disconnect circuit breaker to OFF position (Fig. 1d, pg. 3).
8. Connect devices to removable terminal blocks marked [1P & 1N through 16P & 16N] (Fig. 1a, pg. 3).
When wiring is completed on terminal blocks they can be locked down by tightening screw flanges.
9. Upon completion of wiring, set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
10. Green power LEDs on faceplate will illuminate when power is present. When an output is in
a trouble condition (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3).
a. Blown fuse (R2416UL, R2416300UL & R2416600UL) - Set power disconnect circuit breaker on back
of unit to the OFF position (Fig. 1e, pg. 3).
Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
b. Tripped PTC (R2416ULCB, R2416300ULCB & R2416600ULCB) - To reset PTC, set power switch on back
of unit to the OFF position. After approximately 30 secs. set power disconnect circuit breaker to
the ON (RESET) position (Fig. 1d, pg. 3).
11. Illuminated power disconnect circuit breaker with manual reset:
OFF position - Switch not Illuminated. Outputs not powered.
RESET (ON) position - Circuit breaker illuminated. Outputs powered.
Circuit breaker tripped - Circuit breaker is not Illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power disconnect circuit breaker to RESET (ON) position (Fig. 1d, pg. 3).
R2416ULseries
Fig. 1a
Removable Terminal
Block
XFMR*
AC Power
AC Power
AC Power
LED's
LED's
LED's
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Fig. 1b
Fuse
Fuse
AC Power
LED's
(Green Wire
Fig. 1e
Earth GND)
Fig. 1d
Fig. 1c
Strain Relief
Line Cord
XFMR*
Divider
24VAC Output
(Factory Set)
28VAC Output
S
P
N
S
P
N
Illuminated
Power Disconnect
Circuit Breaker with
manual reset
- 3 ­
