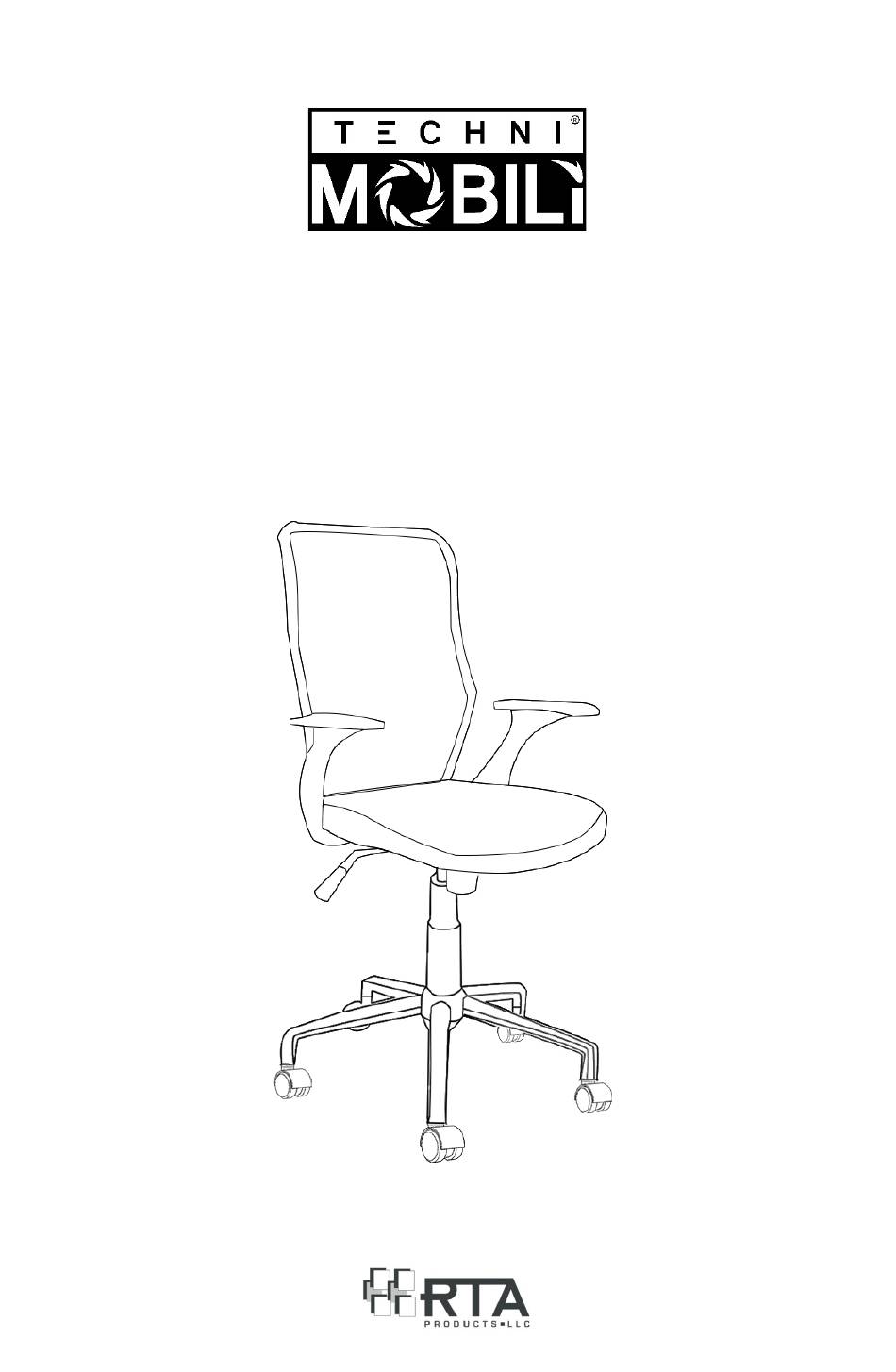

- Page 1 MODEL RTA-4811 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.052021-1...
- Page 2 RTA-4811 MAIN PARTS LIST Backrest Seat 5-Leg star Hydraulic gas Mechanism lift base Covers for Right Casters Left gas lift armrest armrest Sitting on the chair, not looking at it LIST OF HARDWARE PART ITEM USE IN 1/4X22mm Mechanism to Seat...
- Page 3 RTA-4811 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step.
- Page 4 RTA-4811 ASSEMBLY STEPS STEP 1 Insert all the casters F into the base C using pressure, then place the gas lift E in the middle of the base C, and cover it with H as show. STEP 2 Place the mechanism D...
- Page 5 RTA-4811 STEP 4 Assemble the backrest A (For front holes) to the seat B using: Hardware (For back holes) • Screws L at the front (they go through the mechanism); 5/16x28mm • Screws K at the back. (Front) 5/16x30mm MAKE SURE TO USE THE...
- Page 6 RTA-4811 CHAIR’S FUNCTIONS ① To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. ② To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function.
- Page 7 TASK/KID'S CHAIR: 1-YEAR WARRANTY EXECUTIVE/MANAGER CHAIR: 2-YEAR WARRANTY 1.RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship.
- Page 8 RTA-4811 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
