34 Installing hardware into racks
Installing the NetBackup appliance guide rails

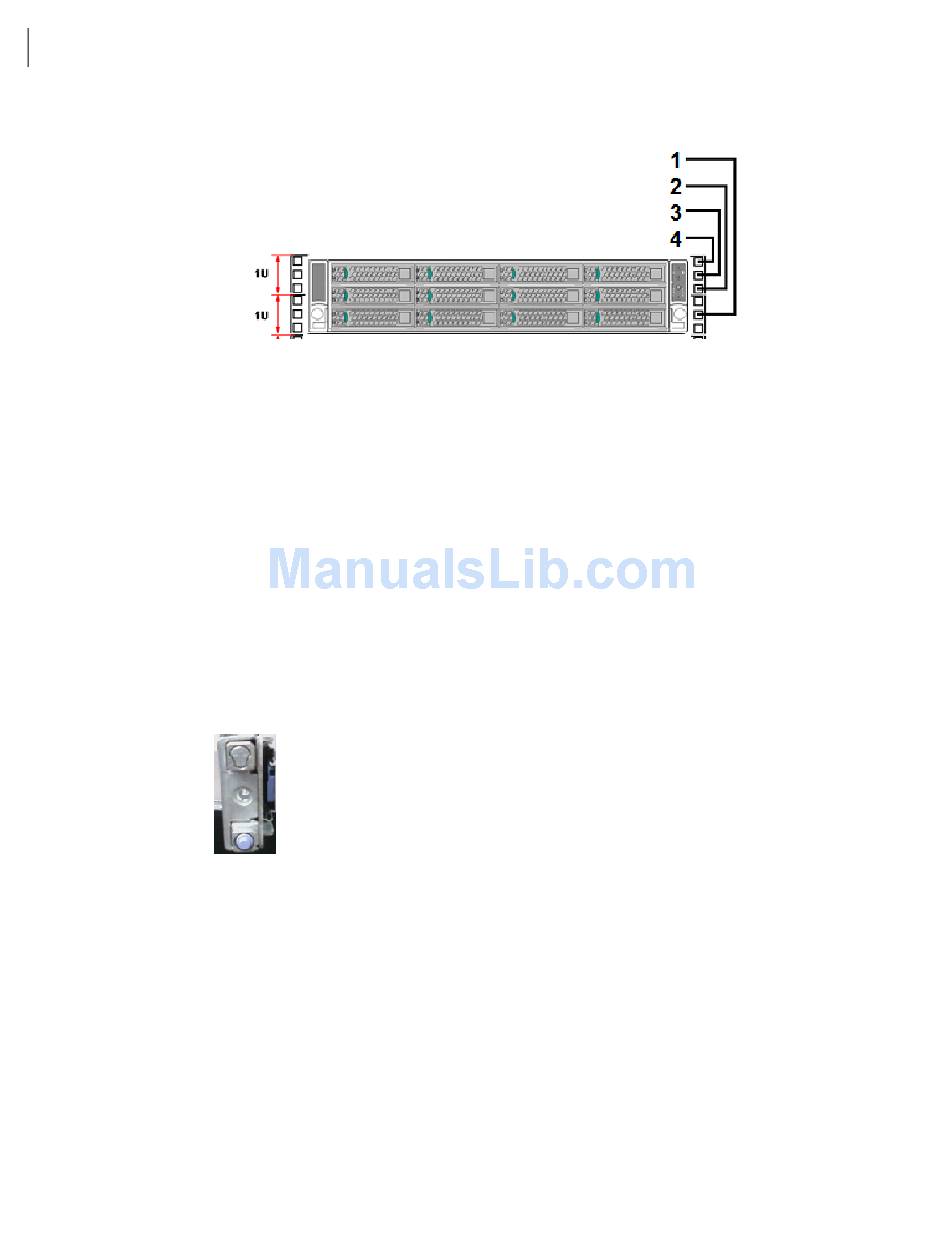

This list describes the components of the drawing.
Number Description
1 Captive screw that connects the appliance to the rack.
2 Blue peg that connects the rail bottom to the rack.
3 Empty (no screws or pegs).
4 Silver peg that connects the rail top to the rack.
The silver peg is on the top of each rail. The blue peg is on the bottom of each rail.
The blue peg and the square silver peg snap into the rack without screws or cage
nuts.
To install the rack rails
1 Identify the one RU on each side of the rack where you plan to install the
rails.
2 Verify that there is one complete RU available under the RU used for rail
installation.
