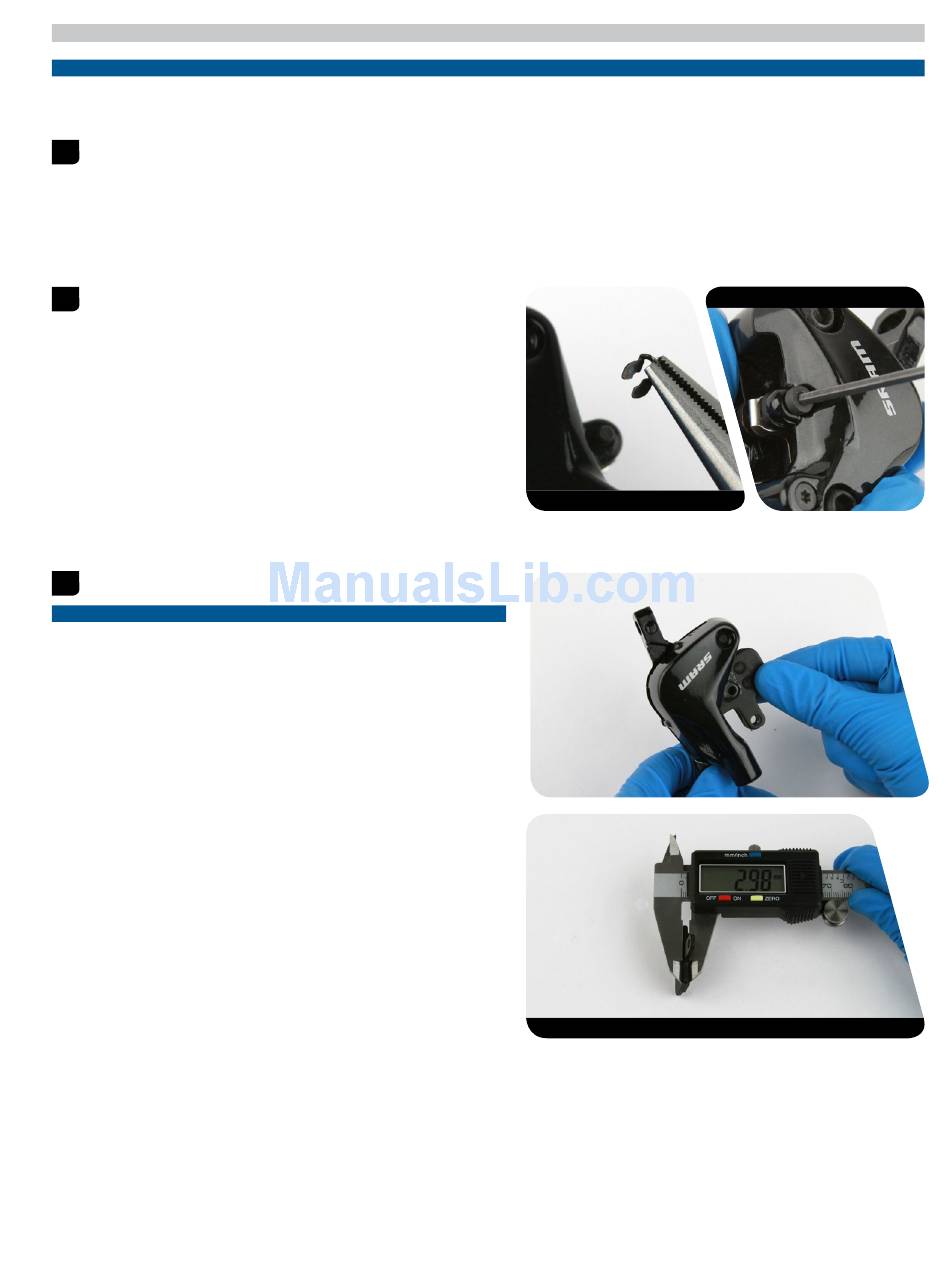

C a l i p e r B r a k e P a d R e m o v a l
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
1 Use a 5 mm hex wrench to remove the brake caliper from the fork or
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set the bracket and hardware aside in the order they were
removed.
2 Use needle nose pliers to remove the E-clip from the pad pin.
Use a 2.5 mm hex wrench to remove the pad pin from the caliper.
3
Pull the brake pads out of the caliper.
Brake pads must be replaced if the total thickness of the backing plate
and pad friction material is less than 3 mm.
NOTI CE
NOTI CE
Needle nose pliers
Caliper
2.5 mm hex wrench
20 mm or 15 mm Thru Axle

Caliper Brake Pad Removal
