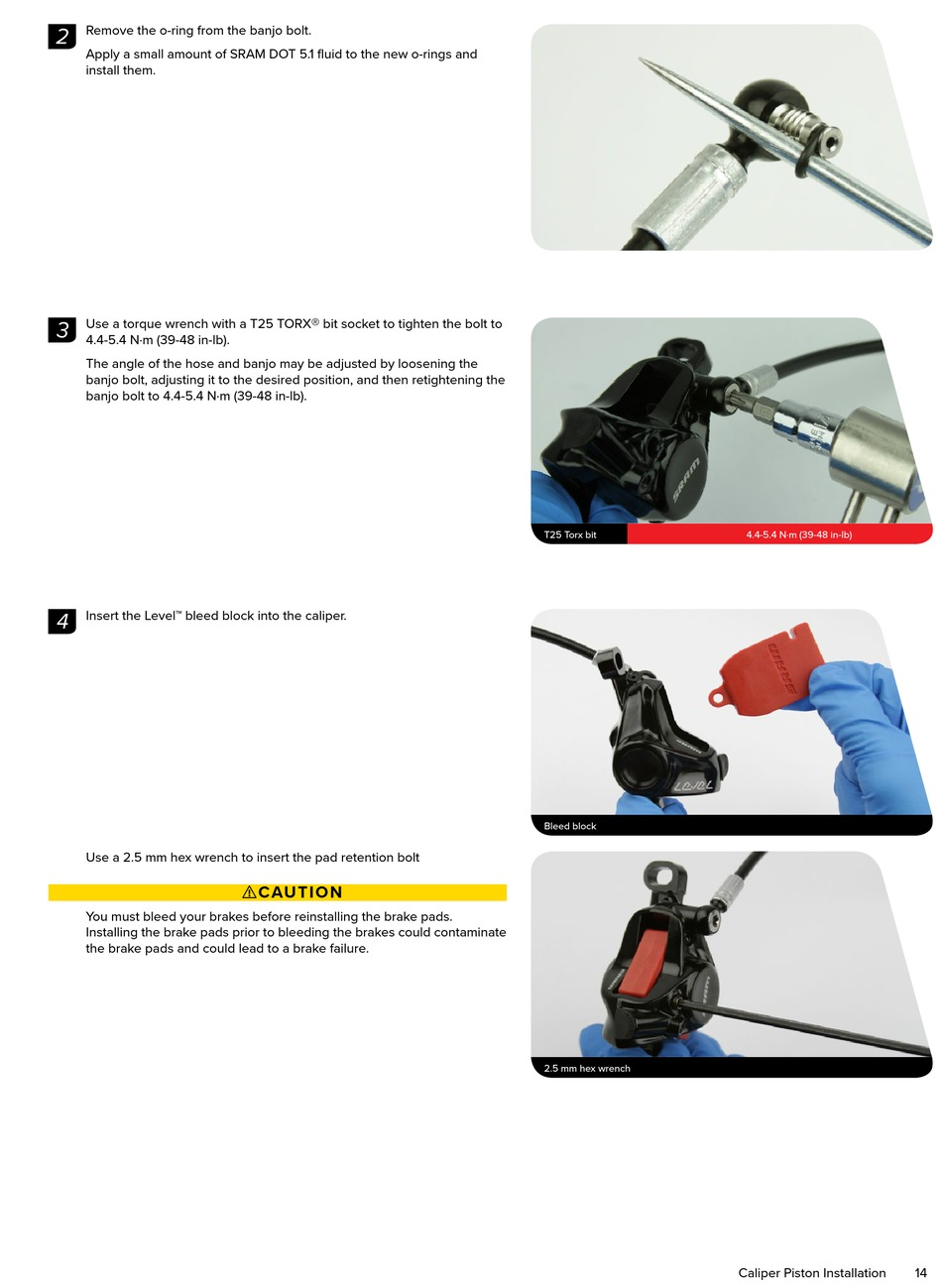

SRAM level ultimate Service Manual page 14

2
Remove the o-ring from the banjo bolt.
Apply a small amount of SRAM DOT 5.1 fluid to the new o-rings and
install them.
3 Use a torque wrench with a T25 TORX
4.4-5.4 N·m (39-48 in-lb).
The angle of the hose and banjo may be adjusted by loosening the
banjo bolt, adjusting it to the desired position, and then retightening the
banjo bolt to 4.4-5.4 N·m (39-48 in-lb).
4 Insert the Level™ bleed block into the caliper.
Use a 2.5 mm hex wrench to insert the pad retention bolt
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could contaminate
the brake pads and could lead to a brake failure.
®
bit socket to tighten the bolt to
⚠ CAUTI ON
T25 Torx bit
Bleed block
2.5 mm hex wrench
4.4-5.4 N·m (39-48 in-lb)
Caliper Piston Installation 14
