Lever Service; Parts And Tools Needed For Service; Level™ Ultimate Lever Exploded View - SRAM level ultimate Service Manual

L e v e r S e r v i c e
P a r t s a n d T o o l s N e e d e d f o r S e r v i c e
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Clean, lint-free shop towel
• SRAM DOT 5.1 fluid
If SRAM fluid is not available, only use DOT 5.1 or 4 fluid.
• Needle nose pliers

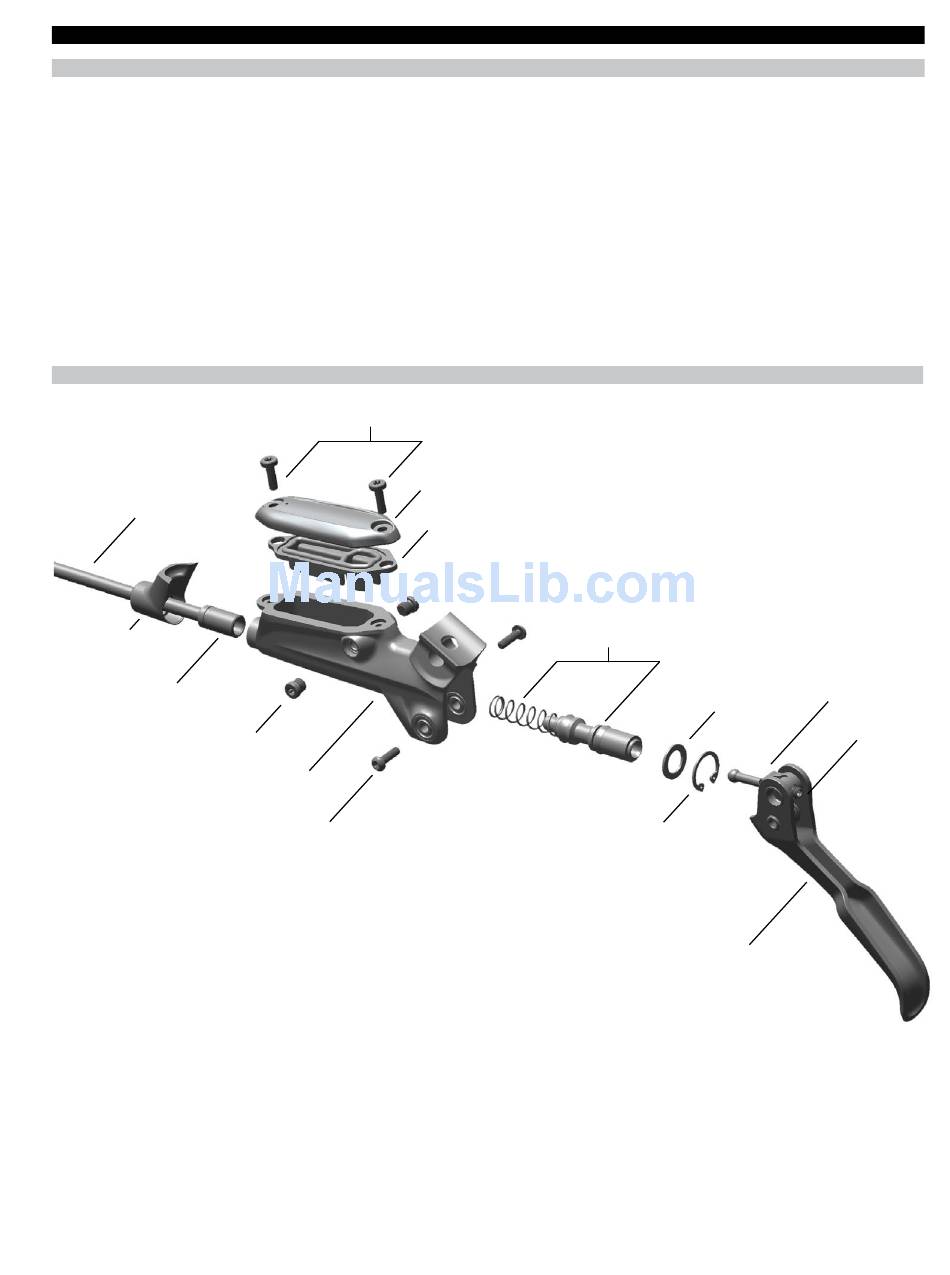

L e v e l ™ U l t i m a t e L e v e r E x p l o d e d V i e w
Hose
Hose boot
Compression nut
Bleed port
screws (2)
Reservoir bolts (2)
Reservoir cap
Bladder
Lever body
Lever pivot
bolts (2)
• Long-tipped snap ring pliers
• Pick
• T8, T10, & T25 TORX® wrench
• T10 TORX bit socket
• 8 mm flare nut crowfoot wrench
• Torque wrench
• SRAM aftermarket tool - lever pivot tool
• Rubber mallet
Piston assembly
Snap ring
Level™ Ultimate Lever Exploded View
SwingLink™
push rod
Washer
Reach
adjuster
Lever blade
