L e v e r B l a d e R e m o v a l
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
®

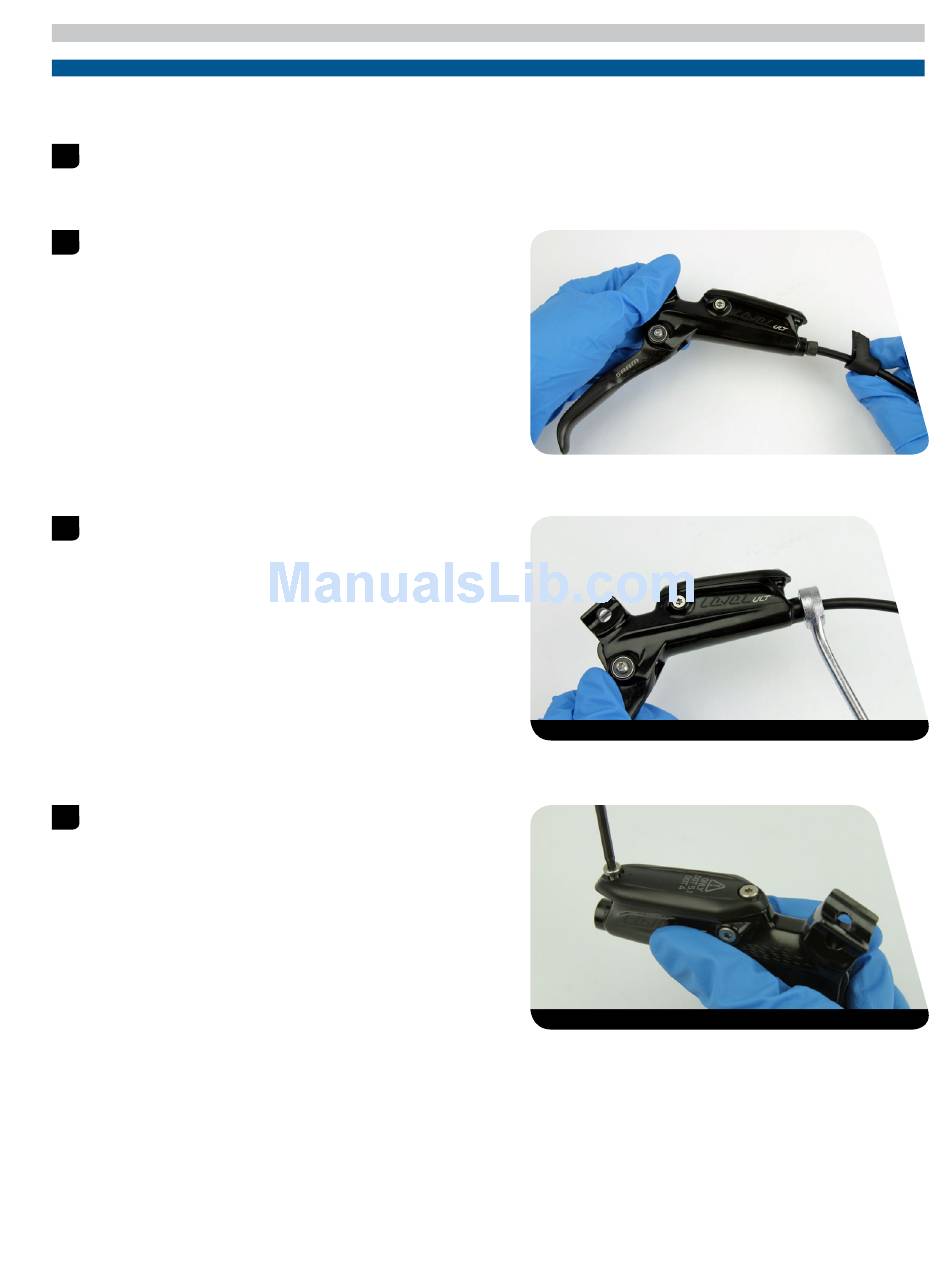

1 Use a T25 TORX wrench or a 4 mm hex wrench to remove the brake
clamp bolt from the discrete clamp, MMX, or XLoc™
(XLoc requires removal of the shifter) and remove the brake lever from
the handlebar.
2 Pull the hose boot away from the brake body to expose the
compression nut, then slide the boot down the brake hose.
3 Use an 8 mm flare nut crowfoot wrench to unthread the hose
compression nut, then pull the brake hose and compression fitting from
the brake lever body.
®
4 Use a T10 TORX wrench to remove the reservoir cap bolts from the
reservoir cap.
NOTI CE
8 mm flare nut crowfoot wrench
T10 TORX wrench
