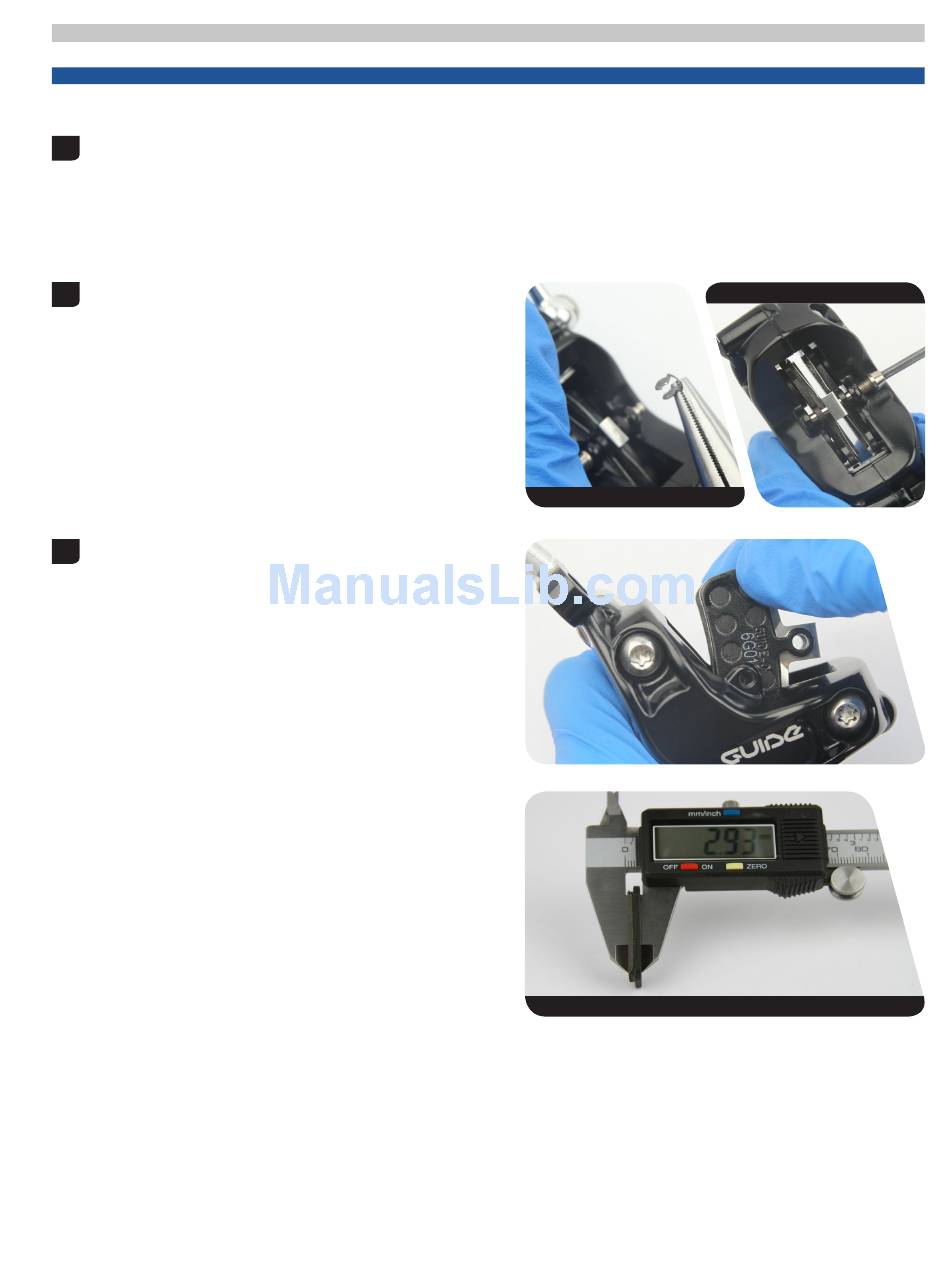

C a l i p e r B r a k e P a d R e m o v a l
NOTI CE
Brake pads must be replaced if the total thickness of the backing plate and pad friction material is less than 3 mm.
®
Use a T25 TORX wrench to remove the brake caliper from the fork or
1
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.
Remove the E-clip from the pad retention bolt.
2
2.5 mm hex wrench
Remove the pad retention bolt from the caliper.
Needle nose pliers 20 mm or 15 mm Thru Axle
Remove the brake pads and pad H-spring from the caliper.
3
Digital Caliper

Caliper Brake Pad Removal
