Caliper Brake Pad Removal - SRAM Guide T Caliper Service Manual

C a l i p e r B r a k e P a d R e m o v a l
Use a 5 mm hex wrench to remove the brake caliper from the fork or
1
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.

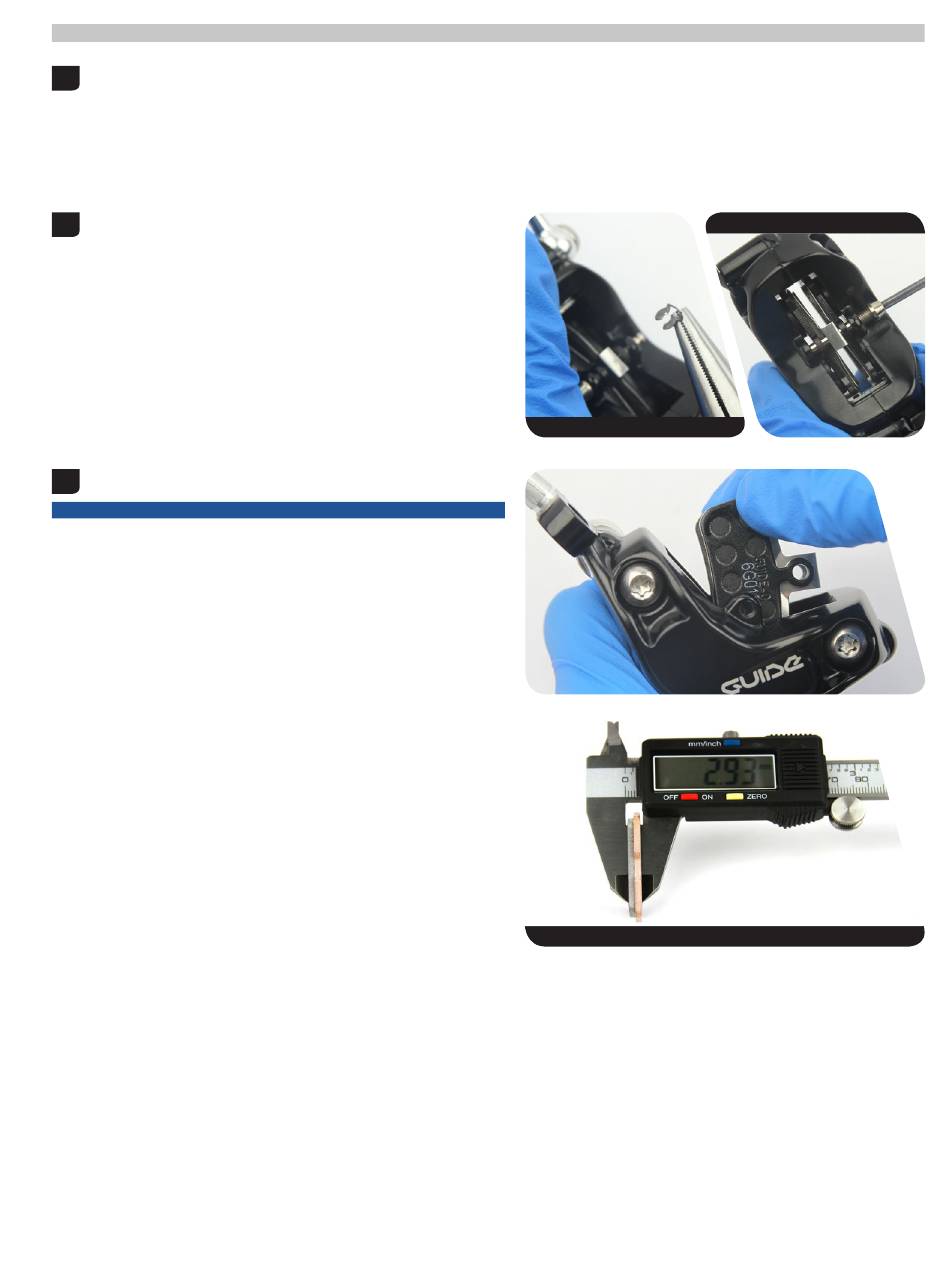

Remove the E-clip from the pad retention bolt.
2
Remove the pad retention bolt from the caliper.
Remove the brake pads and pad H-spring from the caliper.
3
If the brake pad thickness is less than 3 mm, replace the pads.
NOTI CE
Needle nose pliers
Digital Caliper

Caliper Brake Pad Removal

2.5 mm
20 mm or 15 mm Thru Axle
