Data Windows

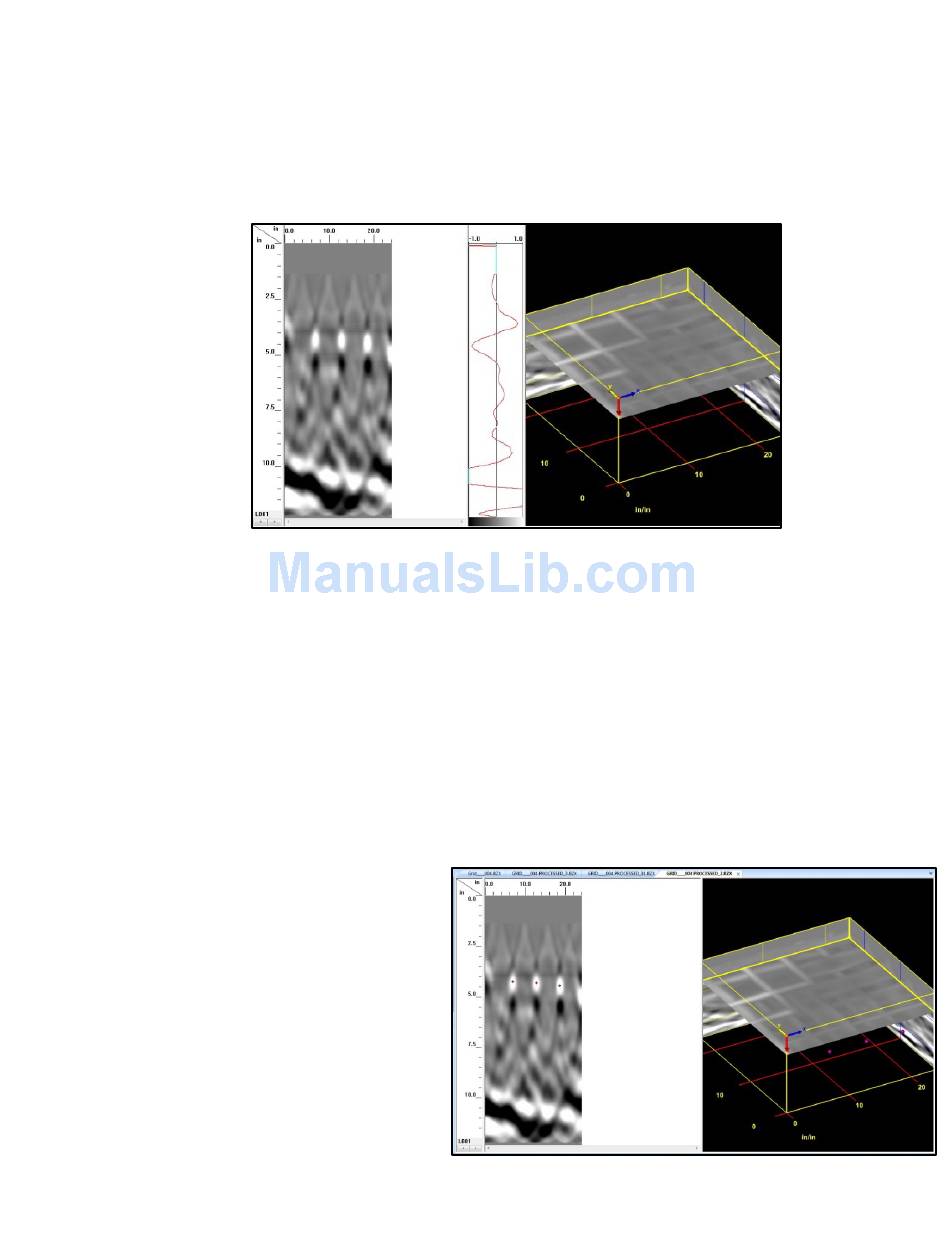

Scope: Toggle on and off to display the O-Scope RADAR signal. (You may hold the left mouse button
down on the data and move the mouse to view the RADAR signal at that position.
3D View: Toggle between displaying the 3D Grid view.
Other Windows
Toggle On or Off different data property windows.
File Header: Header information about the displayed file.
Global Settings: Display Global Parameters for all files prior to opening any files and allow you to
switch between available Application Displays. Once a file is open, the Global Parameters cannot be
changed.
Window Settings: The Properties Pane automatically updates with window-specific settings based on
which data display, 2D or 3D is currently selected.
Interactive 2D
Perform the following steps on the 2D profile and not on the 3D View.
• Add/Del Targets: This will allow you
to tag targets with a dot. Simply turn this
on and left-click on a target to insert a
dot. Right-click on a dot to delete the dot.
These dots will contain information about
the target such as horizontal distance and
depth. The information can be exported
as a comma delimited ASCII file. Also,
note that the dots will appear on the 3D
Grid as well.
• Edit Targets: This will allow you to
click on a dot to change the color and
size of the dot.
