Current Display:
• Reader: Opens the RADAN Reader display, which allows you to view already processed 2D
data as profiles and 3D data as depth slices. The color table, color transform, and display gain can
also be modified. If targets or picks were added in one of the other displays they can be displayed
as well. Displayed data can be saved as .jpg images. This display is available with any purchase
of RADAN 7 and will become the only way of viewing data once the demo version of the
software expires without activation.
• RADAN for StructureScan Mini: This is display that is designed specifically for data collected
with the StructureScan Mini and Mini XT and includes the ability to instantly process data, do
some additional processing, add interpretations, and export to a jpg or excel to quickly generate a
report.
If any other RADAN modules have been purchased, they will appear here as additional display options.
Opening a File
1

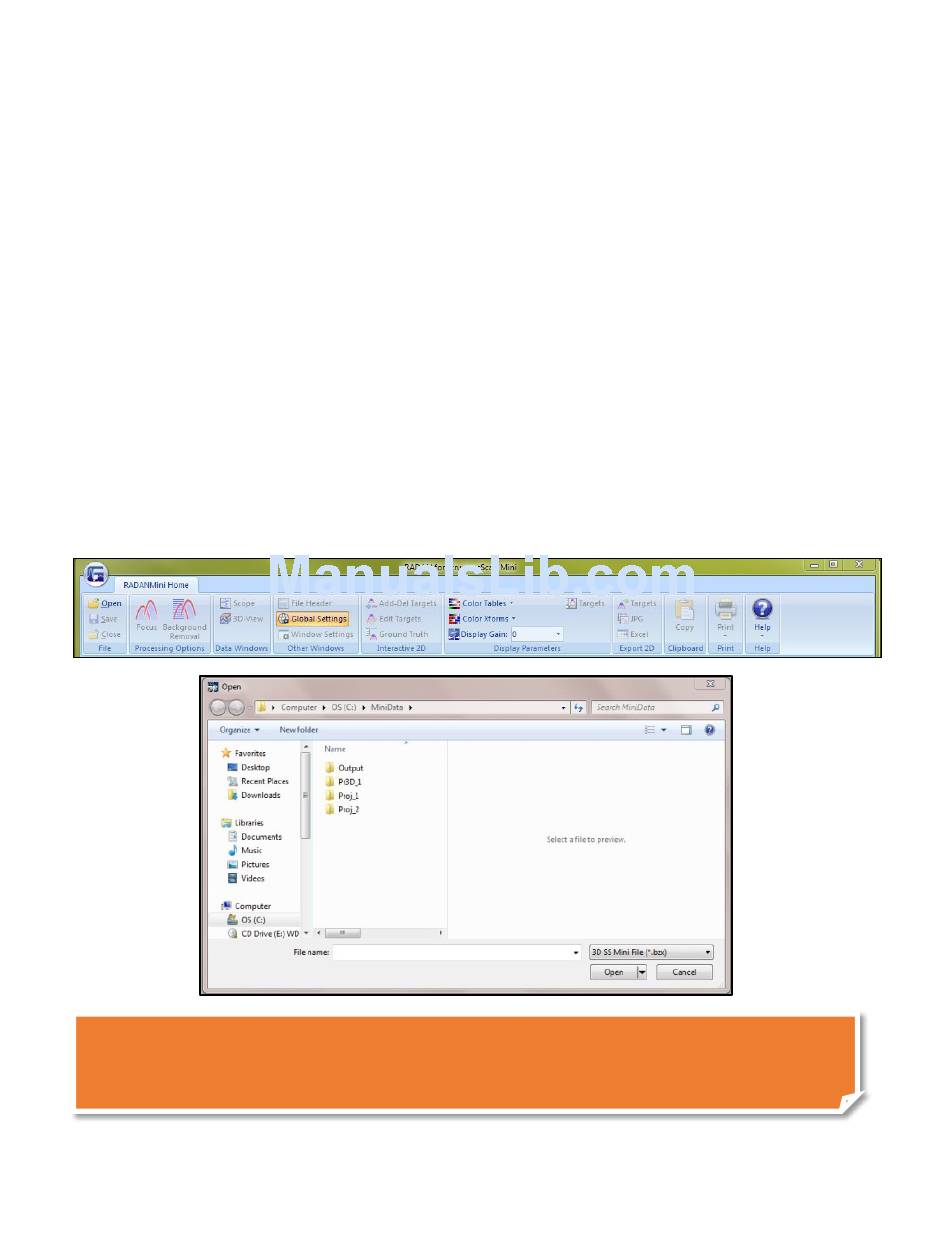

Click the Open icon located on the left side of the Ribbon. This will display a screen defaulted to the
folder you set in the Global Parameters > Source Directory or click on the GSSI Button.
•
Select a file to view/process and click Open.
•
Or double-click on the Output Folder or Proc Folder to open a previously processed file.
:
Note
The default file type is to open a 3D file (.bzx) collected using the StructureScan Mini.
If you wish to open a 2D file, you must change the type of file you wish to open (.dzt).
