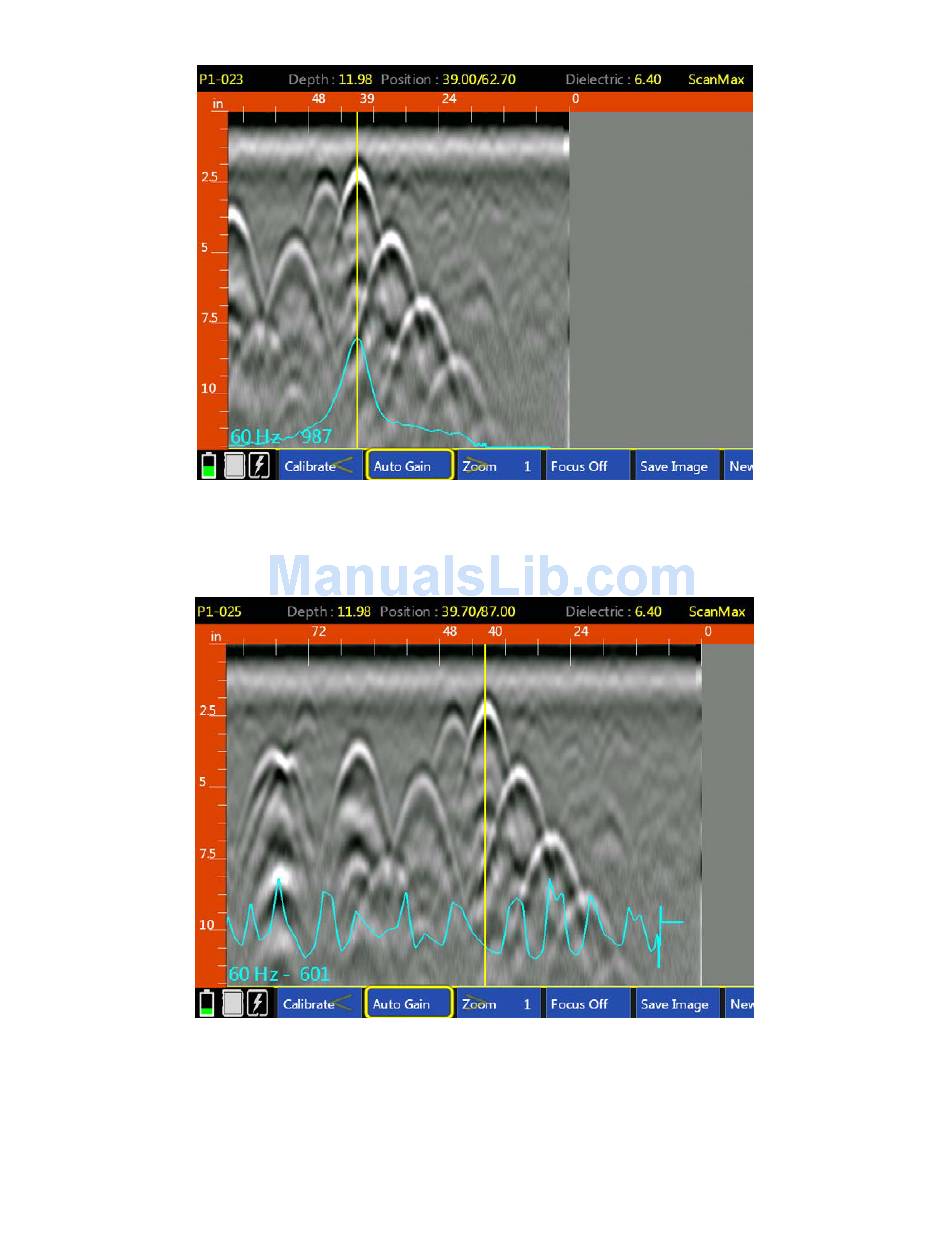

The above image shows a LineTrac detection. The peak corresponds to the target location. You can use
the StructureScan Mini XT's backup cursor function to identify the hyperbola belonging to the likely
conduit.
The above image is of the same area as the preceding image, but this time the appliance connected to the
conduit has been powered down. Note the absence of any large, standout peaks. The LineTrac is
recording diffuse background noise and detecting no flowing current.
