Geophysical Survey Systems, Inc. StructureScan™ Mini XT
Manual

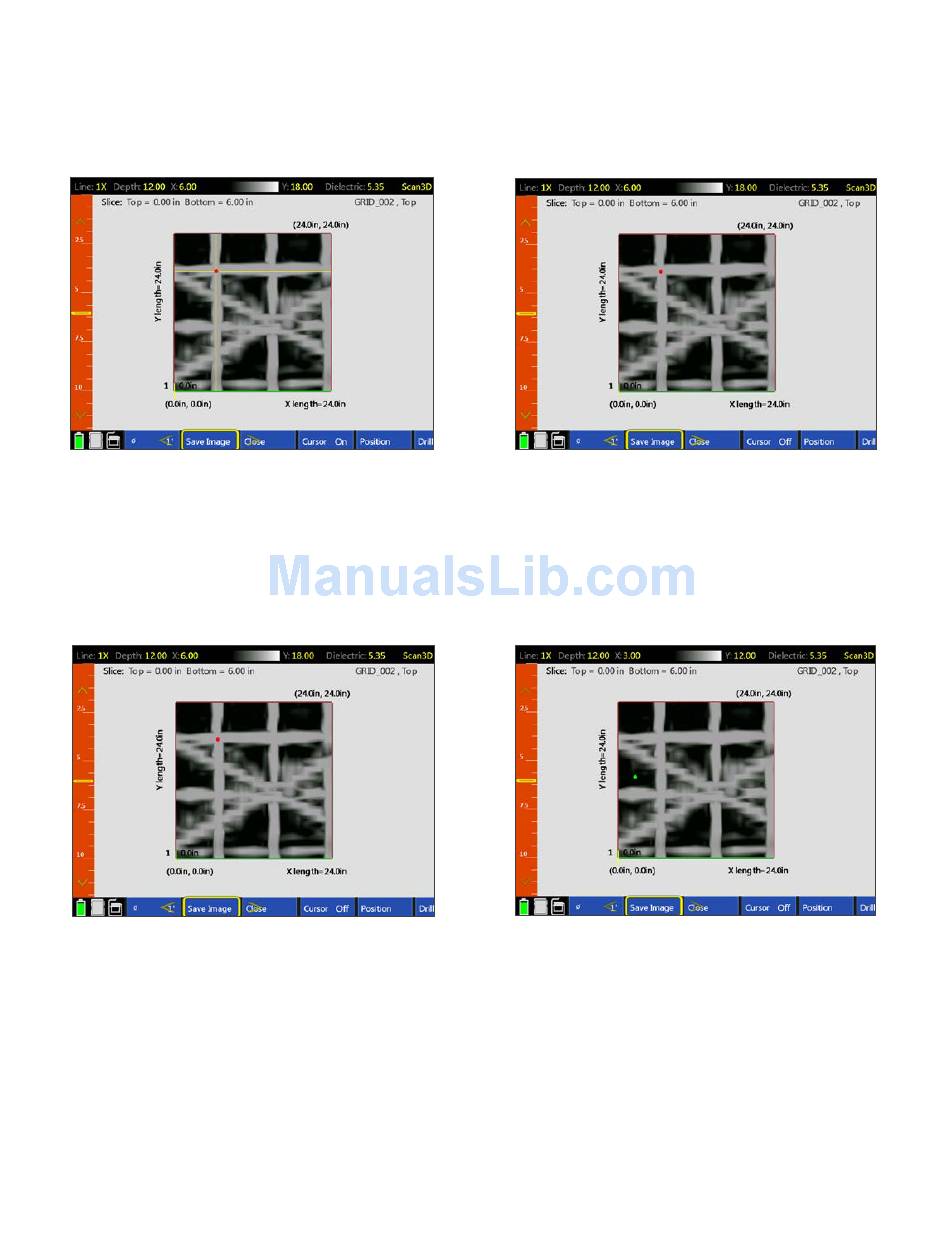

Drill Hole
The menu carousel will have the following options once drill hole is selected:
Cursor: Toggles the yellow cursor on/off. This may make the drill hole location and color easier to see.
Position: Allows you to show more/less data on the screen. This may make positioning your drill
location easier.
Drill: The Mini XT will analyze the current location for any high amplitude features. If none are observed
in the current position (at the chosen diameter), the hole will change from yellow to green. If the XT finds
any high amplitude features, the hole will change from yellow to red. NOTE: This feature is not a
substitute for careful analysis by a trained operator.
Ø: Toggles the diameter of the drill hole in ¼" increments, from ¼" to 2" and the metric equivalents.
Save Image: Take a screenshot and save it as a PNG image file for later transfer off of the Mini XT.
Close: Exits the Drill Hole submenu.
MN 70-813 Rev E 14
