GSSI StructureScan Mini XT Manual page 51

Geophysical Survey Systems, Inc.
2
Click on Focus.
3
Adjust the slider bar to increase or decrease the velocity (thus increase or
decrease the dielectric) and click on the Test Icon.
4
Continue to make adjustments and press the Test Icon until the hyperbolas
become dots.
•

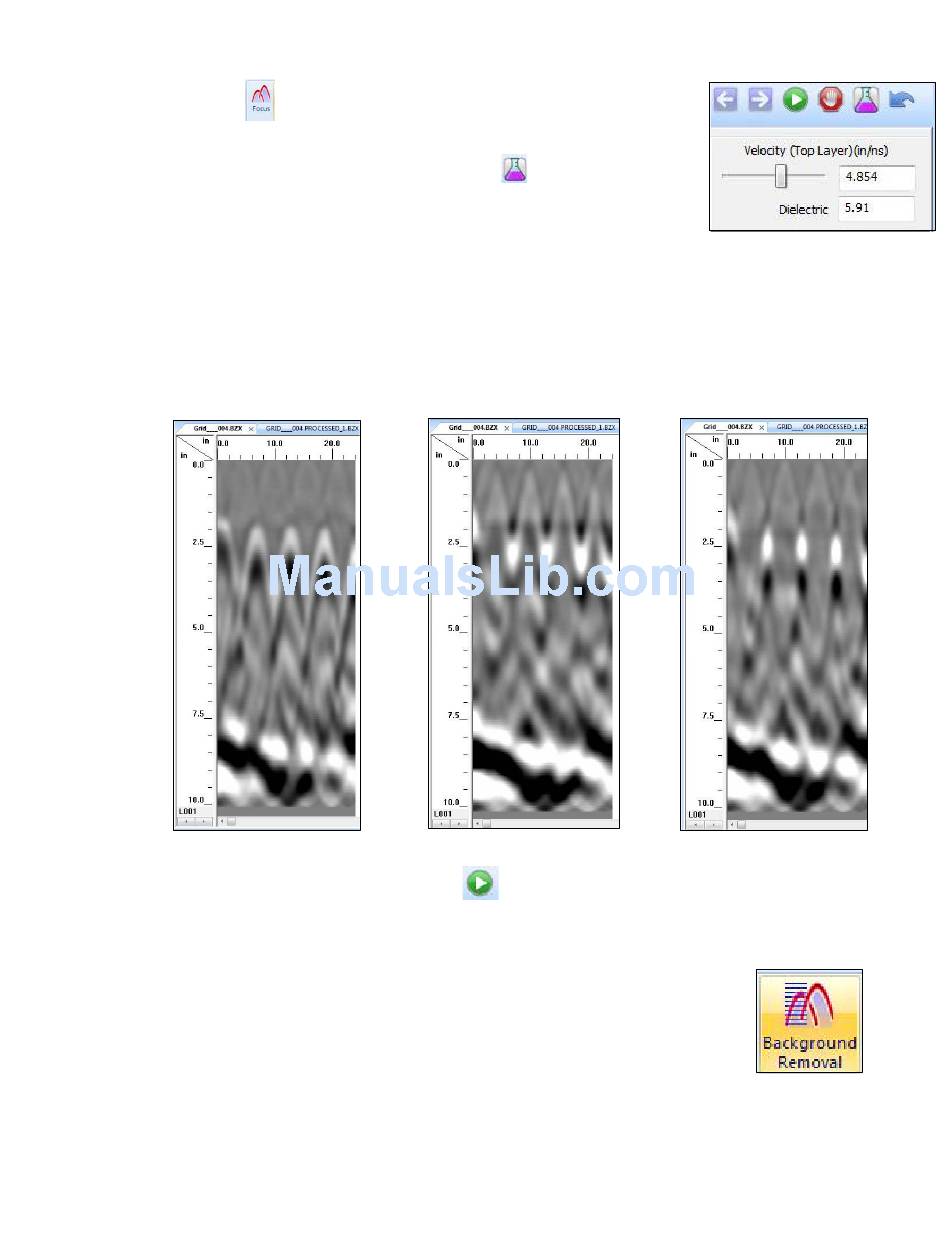

The picture on the left has hyperbolas. Increase the velocity bar by sliding it to the right. This will
automatically decrease the dielectric.
•
The picture in the middle has upside-down hyperbolas. Decrease the velocity by sliding it to the
left. This will automatically increase the dielectric.
•
The picture on the right has no hyperbolas. Dots are present.
5
Click on the Process Icon to process the data.
6
Save the data if prompted to do so.
Background Removal
Remove any background noise your data may have. Clicking on this icon will
immediately begin the process. Save the file if prompted.
