Enable the Input Pins feature and configure pins as follows:
Select the logical input pins (PIN 1 through PIN 4) that you have mapped in

the configuration of your Swift A200 (Figure 17, page 23). Leave PIN 0 not
selected.
If needed, enter a descriptive name for each input pin. Otherwise, the console

will display the default pin names (PIN1, PIN2, and so on).
For each pin, expand the Pin value menu and select the active level exactly as

specified in the Swift A200 configuration (Figure 17, page 23).
After you apply the changes, launch the TRBOnet Watch console and click Live
Monitor in the left pane. You can see the states of connected Swift A200 pins on the
Diagnostics tab and on the Physical GPIO Pins tab.
The State panel shows all pins (input and output) that are connected to external
hardware.
The green icon indicates the active level on the pin.

The red icon indicates an inactive pin.

Point the mouse cursor at the pin in the State panel to see the detailed information
about the pin (Figure 25).
28

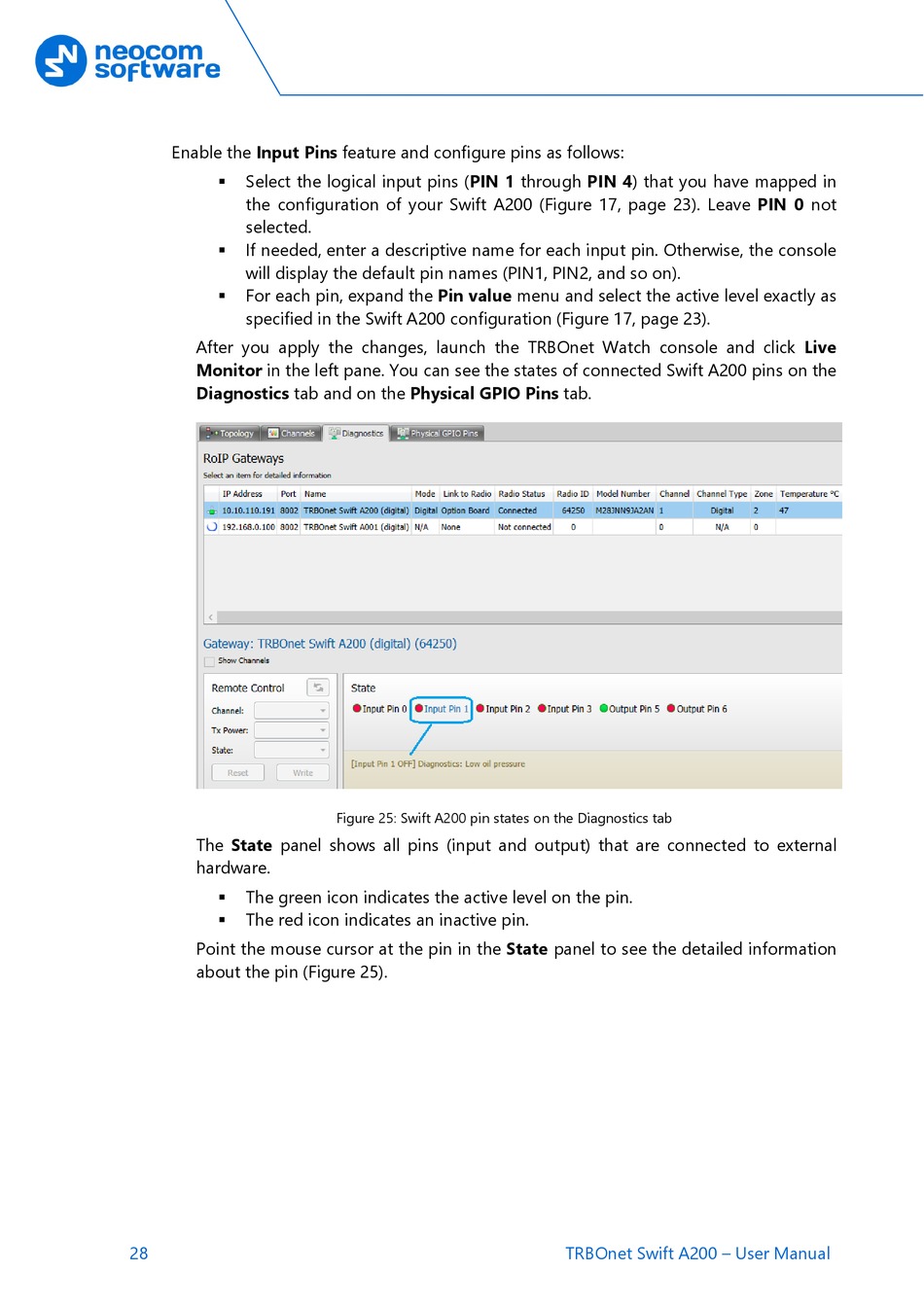

Figure 25: Swift A200 pin states on the Diagnostics tab
