TRBOnet Configuration

4 TRBOnet Configuration
This section describes how to configure TRBOnet software so that the operator could
see and manage the physical I/O pins of Swift A200. In the example below, Swift A200
is connected to a MOTOTRBO radio through USB and has three input pins and two
output pins connected to external hardware (Figure 16).
In the Swift A200 configuration, the physical I/O pins are mapped to the logical pins
of TRBOnet (Figure 17).
To complete the I/O pin configuration in TRBOnet, read the following sections:
4.1 TRBOnet Enterprise/PLUS Configuration

4.2 TRBOnet Watch Configuration


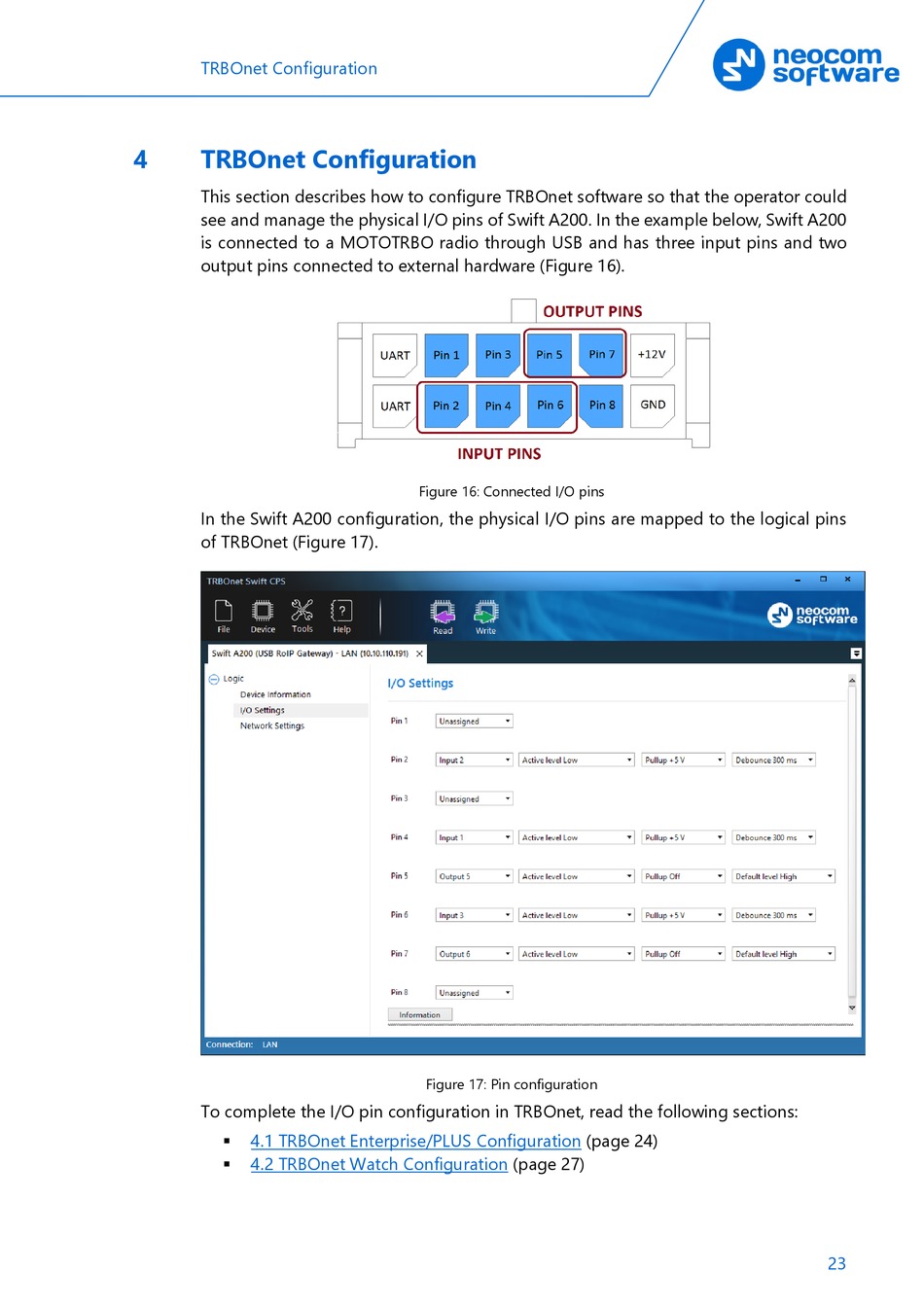

Figure 16: Connected I/O pins
Figure 17: Pin configuration
