3.1.4 Configuring the Option Board
After you have installed the option board into a MOTOTRBO radio, update the
firmware of the option board to the latest version. If the wireless connection between
Swift A200 and the radio is required, configure the NRF settings of the option board.
To configure the option board:
Power off the radio. Connect the programming cable to the radio and to a USB
port of your computer. Power up the radio.
Launch TRBOnet Swift CPS on your computer. In the main window, select USB
as the programming interface (Figure 1, page 9).
On the Device menu, click Update Firmware.
In the Update Firmware window, point the option board connected through
USB. Expand the Update to drop-down menu and select the latest firmware
version. Click Update.
(Optional) If the wireless connection with Swift A200 is used, click NRF Settings
in the left panel. Specify the NRF connection settings of the option board
exactly as programmed in the configuration of Swift A200. For details, refer to
section 3.1.1 Configuring Swift A200
3.1.5 Connecting Swift A200 to the Radio
When all configuration settings are made, connect your Swift A200 to the radio and
to the local IP network. The LAN port is located on the rear panel of Swift A200.
Wireless (NRF) connection with the radio
If the radio and Swift A200 have identical NRF settings (data transfer rate and channel),
the wireless connection is established automatically as soon as both devices are
powered up.
14

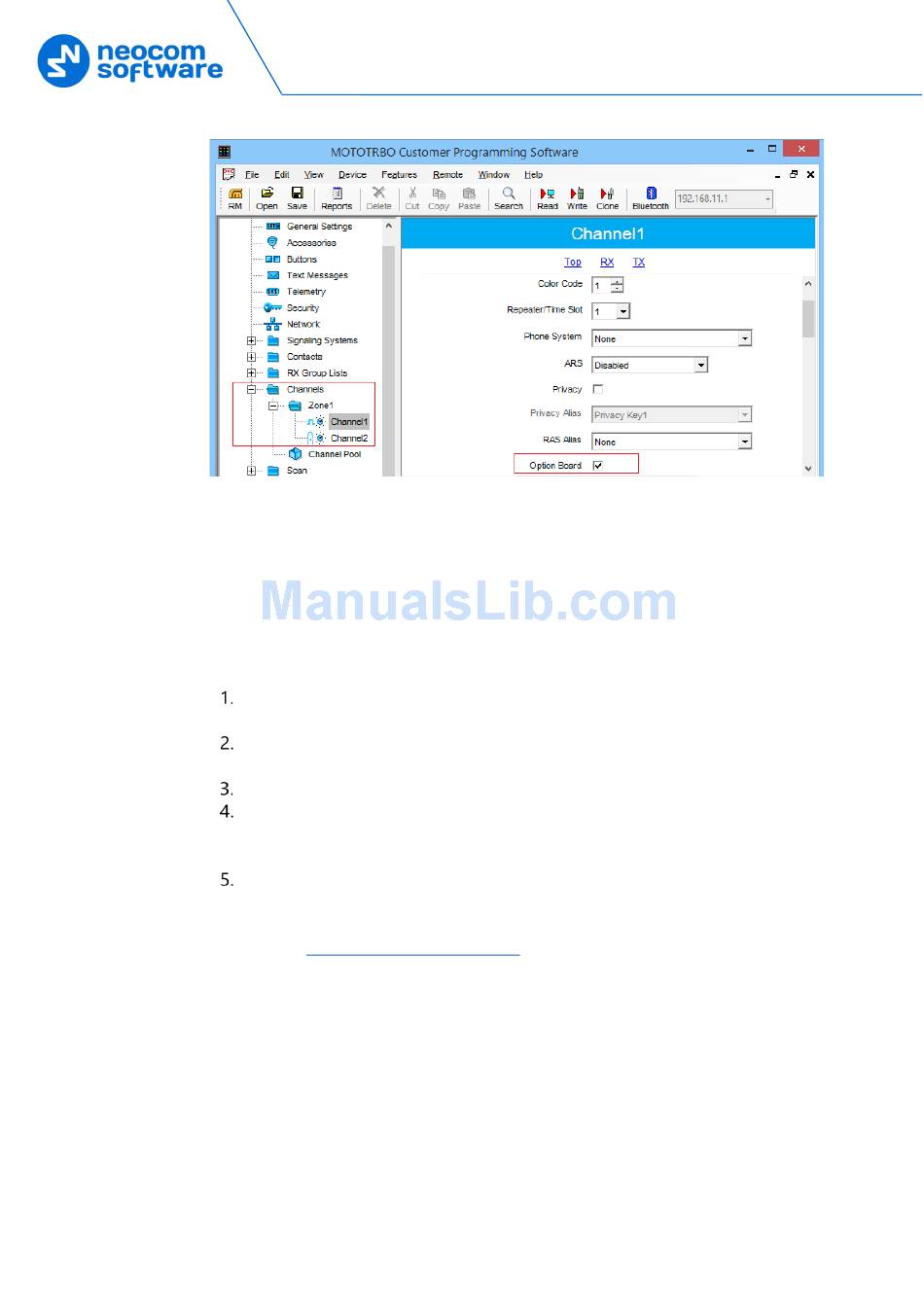

Figure 9: Enabling the option board capability
