descriptive name. In the Value ON and Value OFF fields, double-click the value
and enter a custom name of the command.
Click OK and again OK.

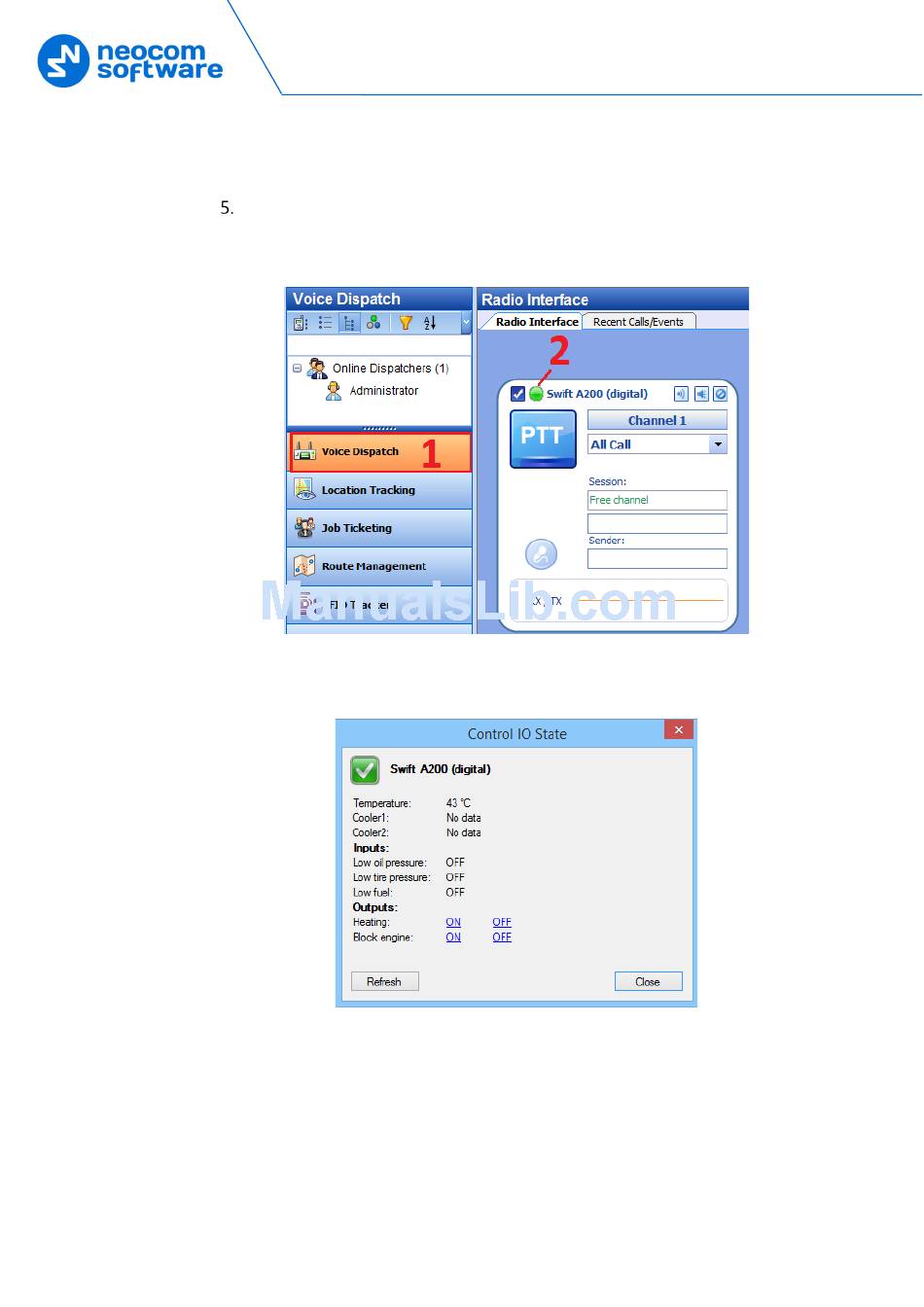

To see the configured pins, click Voice Dispatch in the left pane. Click the green icon
in the PTT box of your Swift A200 (Figure 21).
The pin states appear in a popup window:
The temperature is measured inside the unit and transmitted to TRBOnet by default,
no additional configuration is required. The coolers are missing ("No data").
Input and output pins appear with their custom names. The input pin states are read-
only. The operator can change the output pin states by clicking a respective command
next to the pin name (ON and OFF under Outputs in Figure 22). Or, the operator can
right-click the green icon in the PTT box of Swift A200 and change the output pin
states from the popup menu (Figure 23).
26
Figure 21: Opening Swift A200 pin states
Figure 22: Pin states
