Setup and Connection

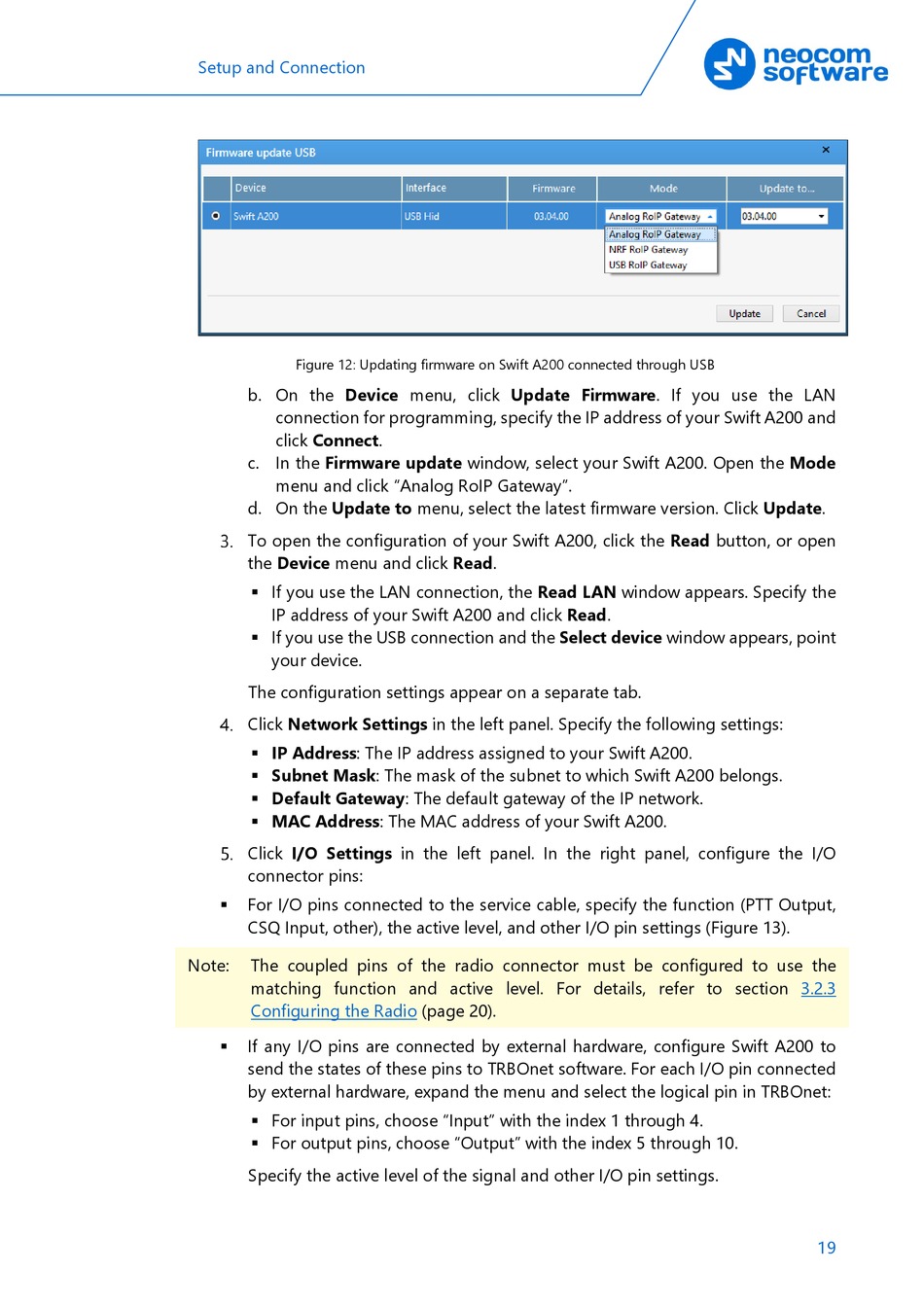

Figure 12: Updating firmware on Swift A200 connected through USB
b. On the Device menu, click Update Firmware. If you use the LAN
connection for programming, specify the IP address of your Swift A200 and
click Connect.
c. In the Firmware update window, select your Swift A200. Open the Mode
menu and click "Analog RoIP Gateway".
d. On the Update to menu, select the latest firmware version. Click Update.
To open the configuration of your Swift A200, click the Read button, or open
the Device menu and click Read.
 If you use the LAN connection, the Read LAN window appears. Specify the
IP address of your Swift A200 and click Read.
 If you use the USB connection and the Select device window appears, point
your device.
The configuration settings appear on a separate tab.
Click Network Settings in the left panel. Specify the following settings:
 IP Address: The IP address assigned to your Swift A200.
 Subnet Mask: The mask of the subnet to which Swift A200 belongs.
 Default Gateway: The default gateway of the IP network.
 MAC Address: The MAC address of your Swift A200.
Click I/O Settings in the left panel. In the right panel, configure the I/O
connector pins:
For I/O pins connected to the service cable, specify the function (PTT Output,

CSQ Input, other), the active level, and other I/O pin settings (Figure 13).
Note: The coupled pins of the radio connector must be configured to use the
matching function and active level. For details, refer to section
Configuring the Radio
If any I/O pins are connected by external hardware, configure Swift A200 to

send the states of these pins to TRBOnet software. For each I/O pin connected
by external hardware, expand the menu and select the logical pin in TRBOnet:
 For input pins, choose "Input" with the index 1 through 4.
 For output pins, choose "Output" with the index 5 through 10.
Specify the active level of the signal and other I/O pin settings.
(page 20).
