TRBOnet Configuration
To configure pins:
In the TRBOnet Dispatch console, click Administration and Radio Systems in
the left pane (Figure 20, step 1 and 2).
In the right pane, the list of the registered radio systems appears. Double-click
the radio system associated with your Swift A200 (Figure 20, step 3).
In the popup window, click the Channels tab. Double-click the channel (Figure
20, step 4), or select it and click Properties. Another popup window appears.
In the second popup window, click the Master Control tab and configure pins.

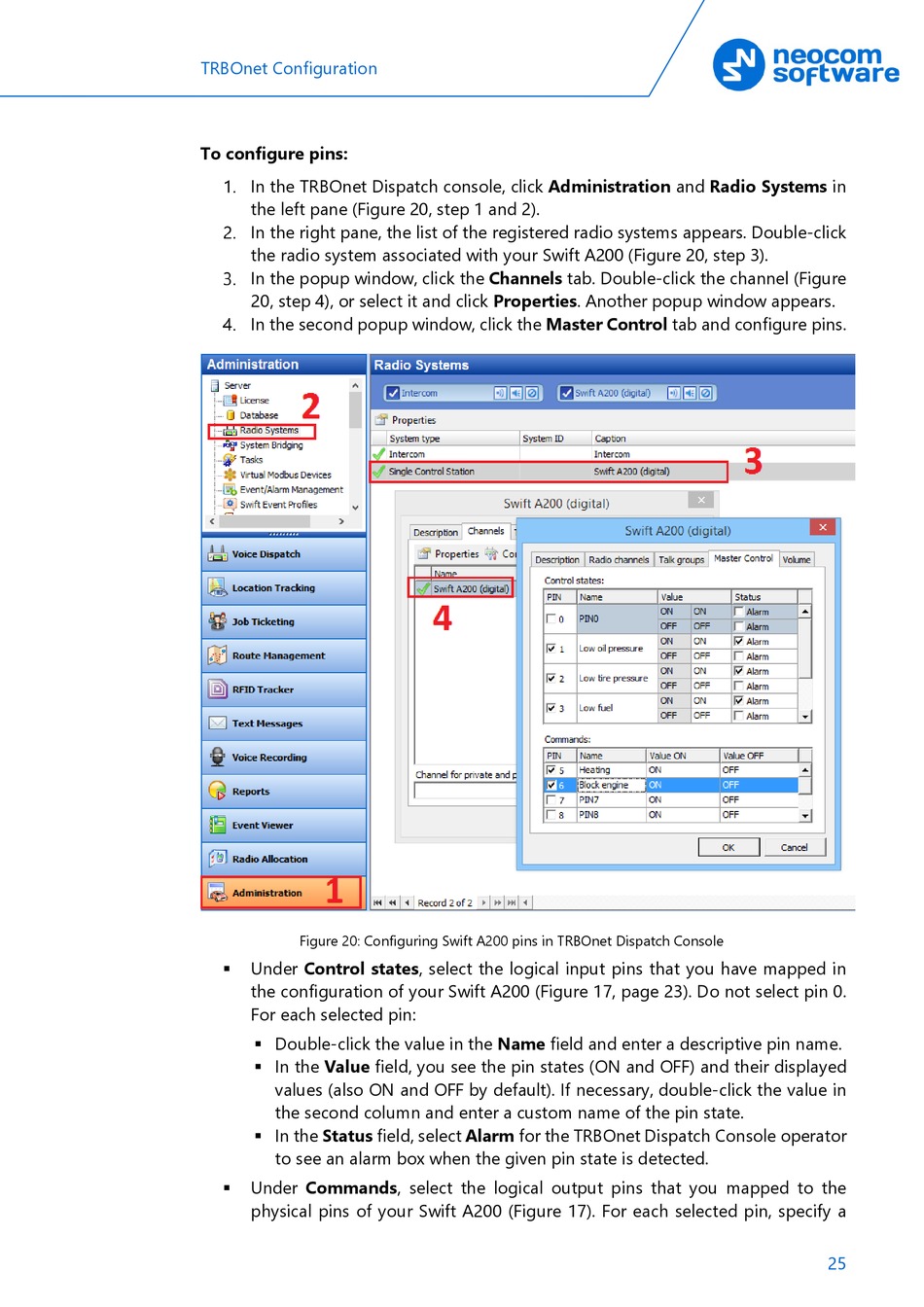

Figure 20: Configuring Swift A200 pins in TRBOnet Dispatch Console
Under Control states, select the logical input pins that you have mapped in

the configuration of your Swift A200 (Figure 17, page 23). Do not select pin 0.
For each selected pin:
 Double-click the value in the Name field and enter a descriptive pin name.
 In the Value field, you see the pin states (ON and OFF) and their displayed
values (also ON and OFF by default). If necessary, double-click the value in
the second column and enter a custom name of the pin state.
 In the Status field, select Alarm for the TRBOnet Dispatch Console operator
to see an alarm box when the given pin state is detected.
Under Commands, select the logical output pins that you mapped to the

physical pins of your Swift A200 (Figure 17). For each selected pin, specify a
