TRBOnet Swift A200 User Manual page 16

Setup and Connection

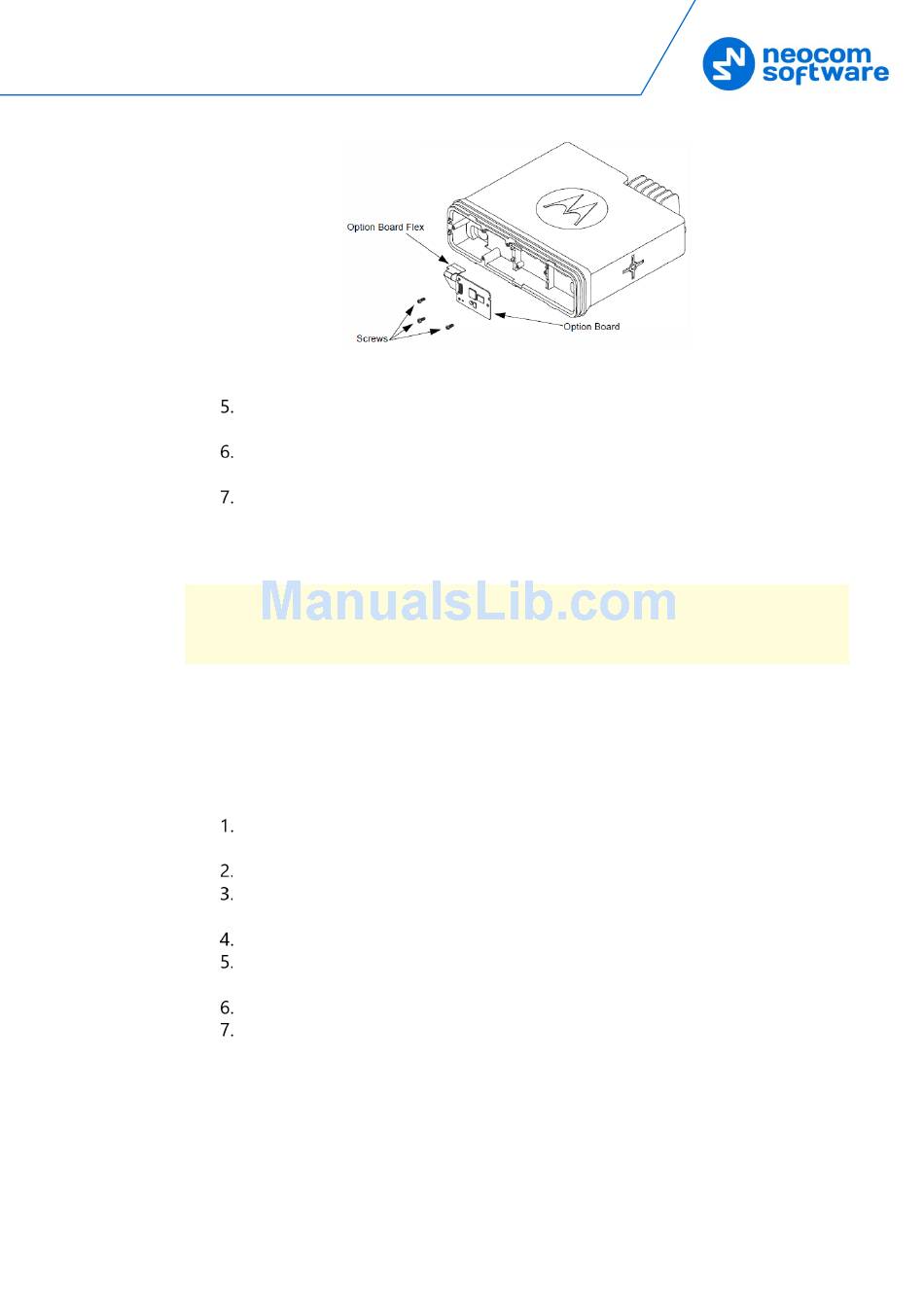

Figure 8: Connecting the option board to the main board of the radio
Align the option board to the mounting holes ensuring that the flex tabs are
against the chassis alignment posts.
Using a T6 TORX™ driver, tighten the three screws to 0.28 N-m (2.5 lbs-in) to
secure the option board to the chassis.
Assemble the control head seal on the radio. Assemble the control head to the
radio chassis by aligning one side of the control head assembly tabs to one
side of the radio chassis tabs and then rotate the control head assembly until
the other side engages.
Note: Verify that the control head seal is not pinched and not visible. If a pinch is
found, disassemble the control head, reseat the seal and reassemble the
control head.
3.1.3 Configuring the Radio
After you have installed the option board into your MOTOTRBO radio, configure the
radio using the MOTOTRBO CPS software.
To configure the radio:
Power off the radio. Connect the programming cable to the radio and to a USB
port of your computer. Power up the radio.
Launch the MOTOTRBO CPS software on your computer.
Open the configuration settings of your radio by clicking Read on the Device
menu.
In the left pane, expand the Channels section.
For all channels on which the radio should work through the option board,
select Option Board in the right pane (Figure 9).
Save the updated settings to the radio by clicking Write on the Device menu.
Close the application and disconnect the radio from the computer.
13
