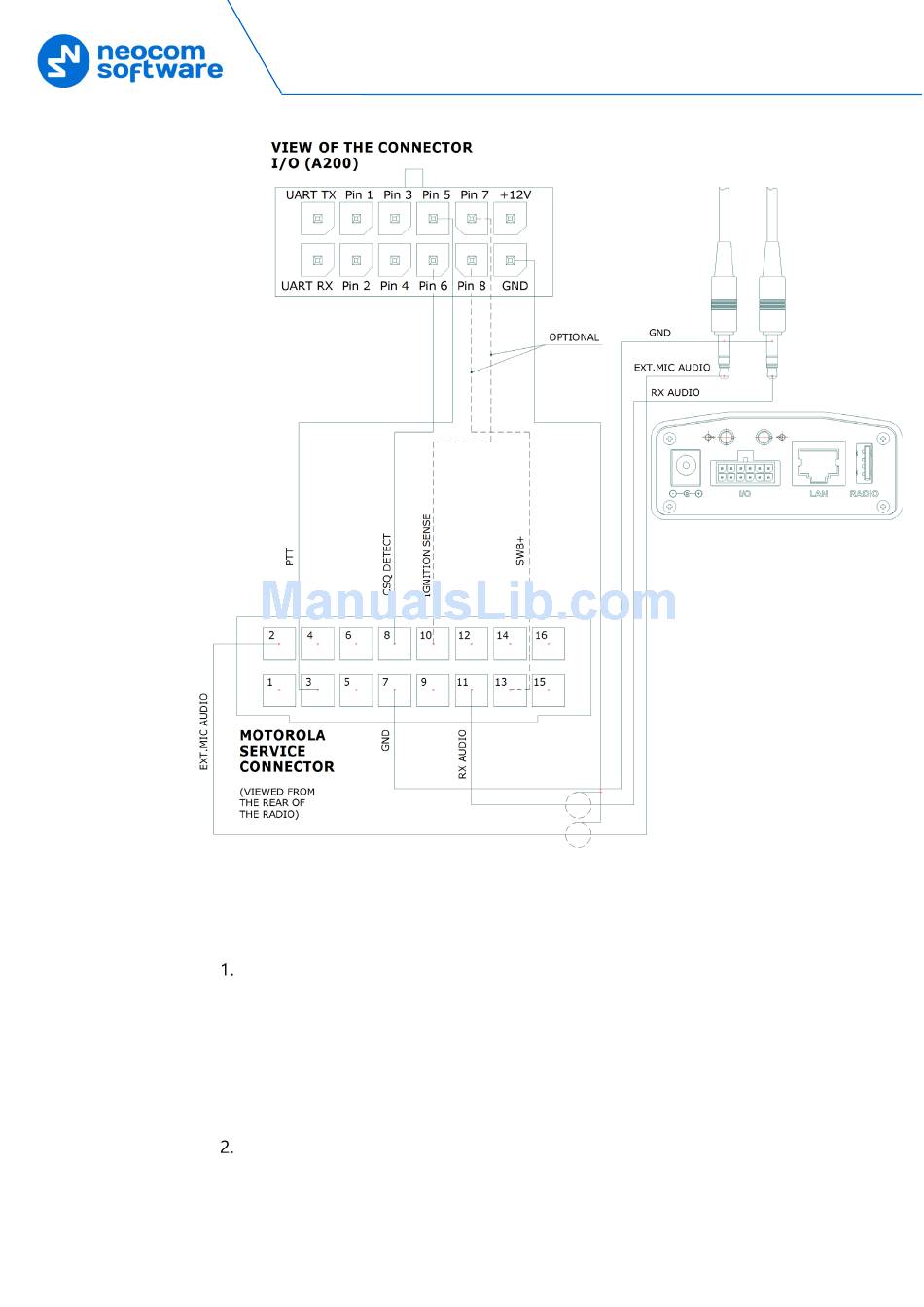

Figure 11: Connecting wires to the Micro-Fit plug and to the radio connector plug
3.2.2 Configuring Swift A200
To configure Swift A200:
Launch TRBOnet Swift CPS. In the main window, select USB as an interface for
device programming at the bottom (Figure 1, page 9). Connect the
programming cable to the micro-USB port of Swift A200 and to a USB port of
your computer.
If you prefer to program your Swift A200 using the LAN connection, select LAN
as the programming interface and connect Swift A200 to the LAN and to the
power supply.
(Recommended) Update the firmware of your Swift A200:
a. Click Options on the Tools menu. In the right pane, make sure that the
Enable changing device mode option is switched on (Figure 2, page 9).
18 TRBOnet Swift A200 – User Manual
