ESP EZ-PROX User Manual page 3

Sighting Of The EZ-PROX
The EZ-PROX must not be located within 2 meters of any
reader/keypad type devices.
The EZ-PROX must not be sited back to back with reader/keypad
type devices.
Site the EZ-PROX within easy access to the door/doors to be
controlled
Fitting
Using the template mark and drill the fixing and cable entry holes.
Remove security screws from the underside of the reader and
remove back plate.

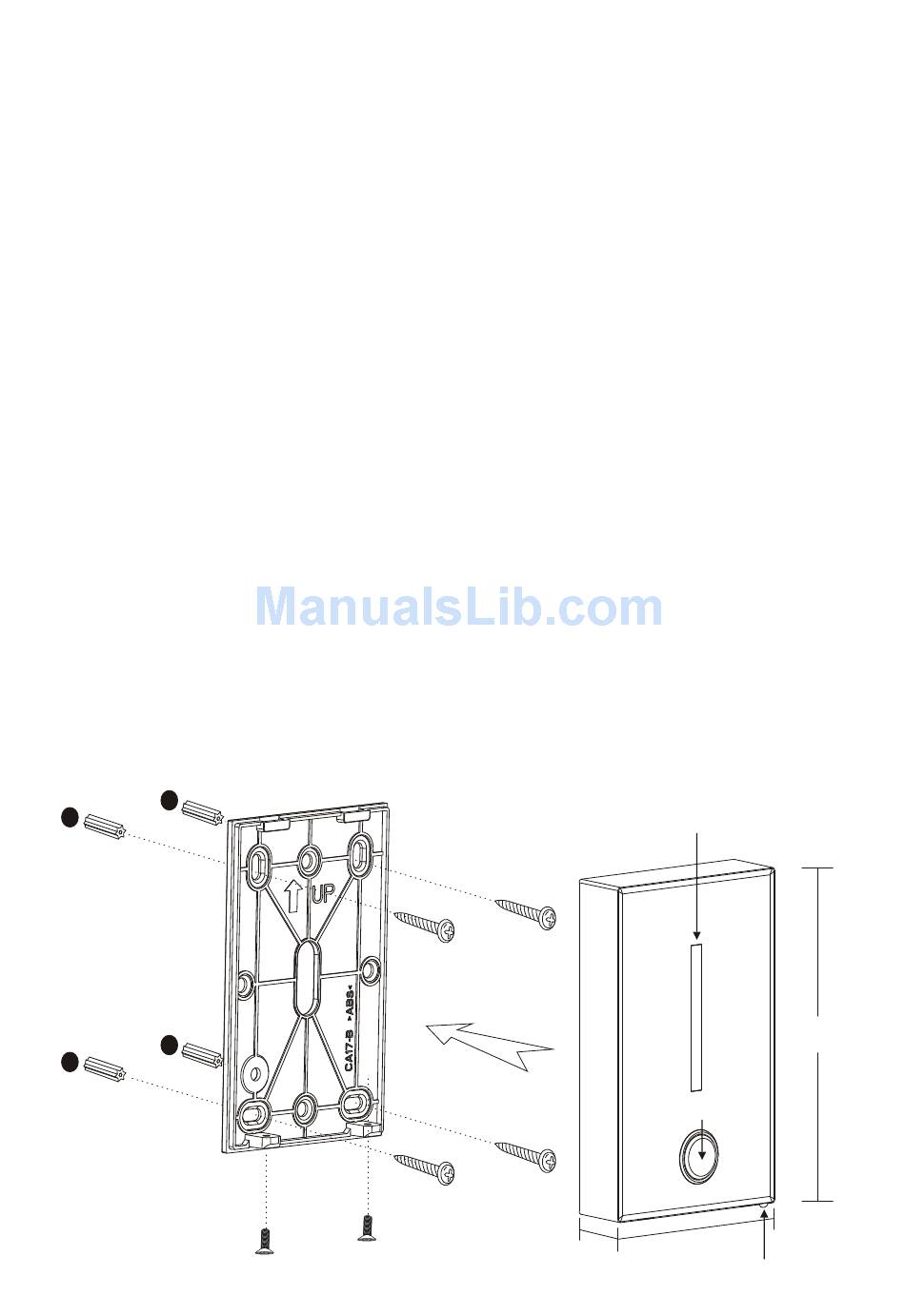

Fit and secure the back plate in its final position. (See Fig below)
Feed the cable from the reader though the centre hole of the back
plate.
Clip the top of reader onto the back plate and secure using the
security fixing screws located on the underside of the reader.
Make all wiring connections and connect 12 volts DC to the reader.
The power LED will now be illuminated on the front of the reader.
Screw anchor
Hole
Hole
Back cover
Screw
Screw
Screw
Screw
Screw
Screw
20
Indicator
114mm
Bell button
75mm
Remote control
IR sensor
