Summary of Contents for ESP BDeye

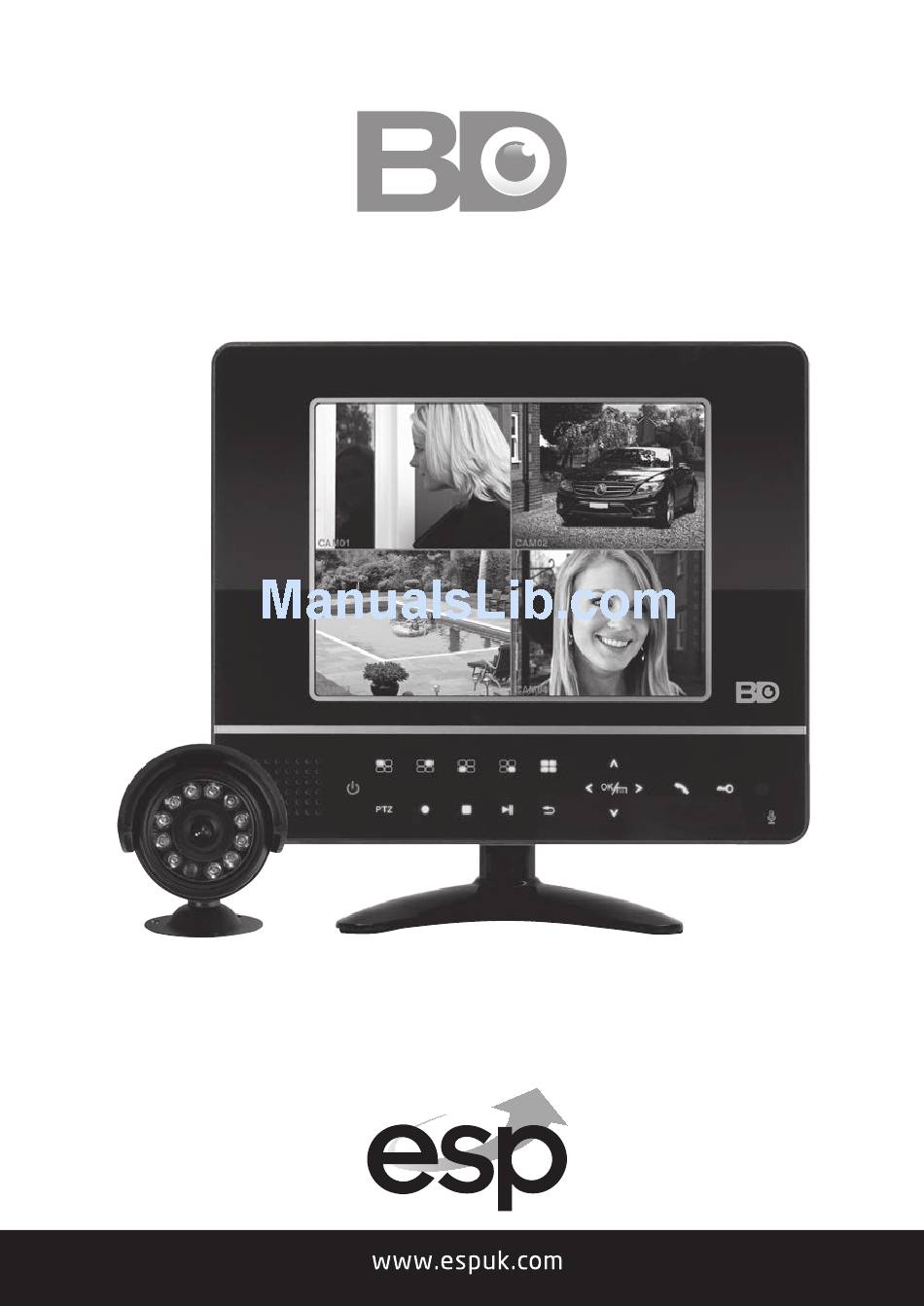

- Page 1 BDeye combined CCTV video door access system U SER MANUAL...
-
Page 3: Table Of Contents
Contents Whats included ........... . 5 Monitor description . - Page 4 SAFETY NOTICE IMPORTANT PRECAUTIONS! HIGH VOLTAGE HAZARD! HIGH VOLTAGE INSIDE! • Please keep this manual for later use. • Please strictly comply with the warning indications on the machine and in this book. • Please abide by instructions when operating. •...
-
Page 5: Whats Included
What is included Monitor Camera Remote Controller 15m Camera Cable Software 500GB Hard Drive User Manual USB Mouse 4 x DIN to USB Memory Stick BNC adaptor cables Optional Extras VDE Call Point Camera Camera Extension Cable VDE Extension Cable... -
Page 6: Monitor Description
Description MONITOR 2.5" HARD DISK CARTRIDGE VOICE ADJUSTMENT VOLUME ADJUSTMENT USB X 2 PORTS A/V OUT POWER SWITCH IR RECEIVER LOUD POWER TOUCH SPEAKER INDICATOR PANEL TCP/IP VDE CALL CAM 4 CAM 2 NETWORK POINT 2 SENSOR VDE CALL POWER DEVICE CAM 3 CAM 1... -
Page 7: Insertion Of The Hard Disk Drive
INSERTION OF THE HARD DISK DRIVE 1. Follow the direction marked beside 2. Insert the hard disk paying attention the button to open the cover of the to the direction of the slot. hard disk cartridge. 3. Push the hard disk down. 4. -
Page 8: Installation
2 – Control (Blue) 5 – Video In (Yellow) 3 – GND for Audio & Power (Brown) 4 – VDD (Red) 4-Pin connector for video door entry call point (BDeye VDE) 1 – GND (Black) 3 – B+ (Red) 2 – Video (Yellow) 4 –... -
Page 9: Operation Buttons
Operation buttons ICON NAME OPERATION Display Full Screen Display of Channel 1/Number 1 Display Full Screen Display of Channel 2/Number 2 Display Full Screen Display of Channel 3/Number 3 Display Full Screen Display of Channel 4/Number 4 Display Quad Display Setup Enter/Exit Setup PTZ Setup... -
Page 10: Basic Operations
Operation HOW TO TURN ON 1. Push the power switch on the left side of the indoor unit, the monitor will start. 2. The monitor shows quad monitoring at start up after system check. MOUSE CONNECTION In order to prevent un-authorised tampering most functions of the DVR are mouse controlled . -
Page 11: Making A Recording
Making a recording RECORD CONFIGURATION This section allows you to configure the recording capability of the DVR to your precise requirements by each channel / camera. Channel Select 1–4 (all other settings now effect the specific channel selected) Redundancy Select if double ( backup ) recording is required when two hard drives are fitted Length The record time captured when using motion or alarm trigger detection... -
Page 12: Transferring A Recording To Usb
TRANSFERRING A RECORDING TO USB Recorded data can be easily transferred using the supplied 2GB USB stick drive. The amount of data that can be stored is only limited by the capacity of the USB drive. Larger capacity drives are available . To create an archive of data insert the USB stick drive into a spare USB port. -
Page 13: System
System The system sections allows configuration of much of the general functionality of the system. General Setting time and date, Language and machine identification details. Encode Each channel can be configured for recording resolution, frame rate and picture quality. High resolution with high frame rates at high quality will create the highest amount of data (Bit rate) and therefore fill up the hard drive at the quickest rate. -
Page 14: Remote Viewing
The first time you connect to the BDeye system from a new PC a security warning message will pop-up asking whether you accept “web.cab” file. You must to accept in... - Page 15 (If the ‘‘web.cab’’ file pop-up fails to show or download, please reduce IE security level or disable third party pop-up blockers and try again) Note: If this is the first time you have connected to your BDeye system from this PC it will take 4-5 minutes to load Step 2 Login;...
- Page 16 External IP address. The first time you connect to the BDeye system from a new remote PC a security warning message will pop-up asking whether you accept “web.cab” file. You must to accept in order to be able to access your BDeye system.
-
Page 17: Troubleshooting
Troubleshooting The system cannot boot up normally. Real-time image problems such as the image color or the brightness distortion. Possible reasons are as follows: Possible reasons are as follows 1 The power supply is not correctly connected. 1 The PAL / NTSC settings are not correct for region ( Pal to be used in Europe ) 2 The rear power switch is in the off position... - Page 18 There is audio signal in the surveillance Network connection is not stable. window but no audio signal in playback Possible reasons are as followed: Possible reasons are as followed: 1 Network is not stable. 1 Setting issues: the audio option is not chosen. 2 IP address is conflicted.
-
Page 19: Technical Specification
Technical Specification SYSTEM INTERFACE Control system LINUX Networking interface One RJ45 10M/100M network interface System resources Triplex , supports simultaneous recording, video playback and Camera interface Four 6-core mini din video network & mobile operations (Max 80M) Operation interface User-friendly menu interface VDE interface Two 4-core mini din video (Max 80M) - Page 20 Elite Security Products Unit 7, Target Park, Shawbank Rd Telephone: 01527 515150 Lakeside, Redditch B98 8YN email: info@espuk.com...
