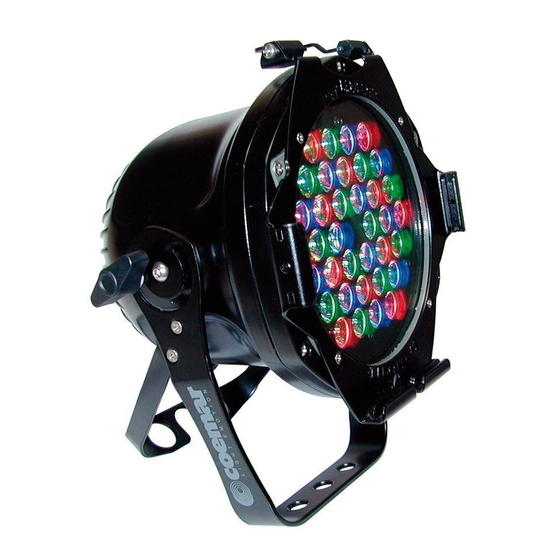

Summary of Contents for Coemar Par Lite LED

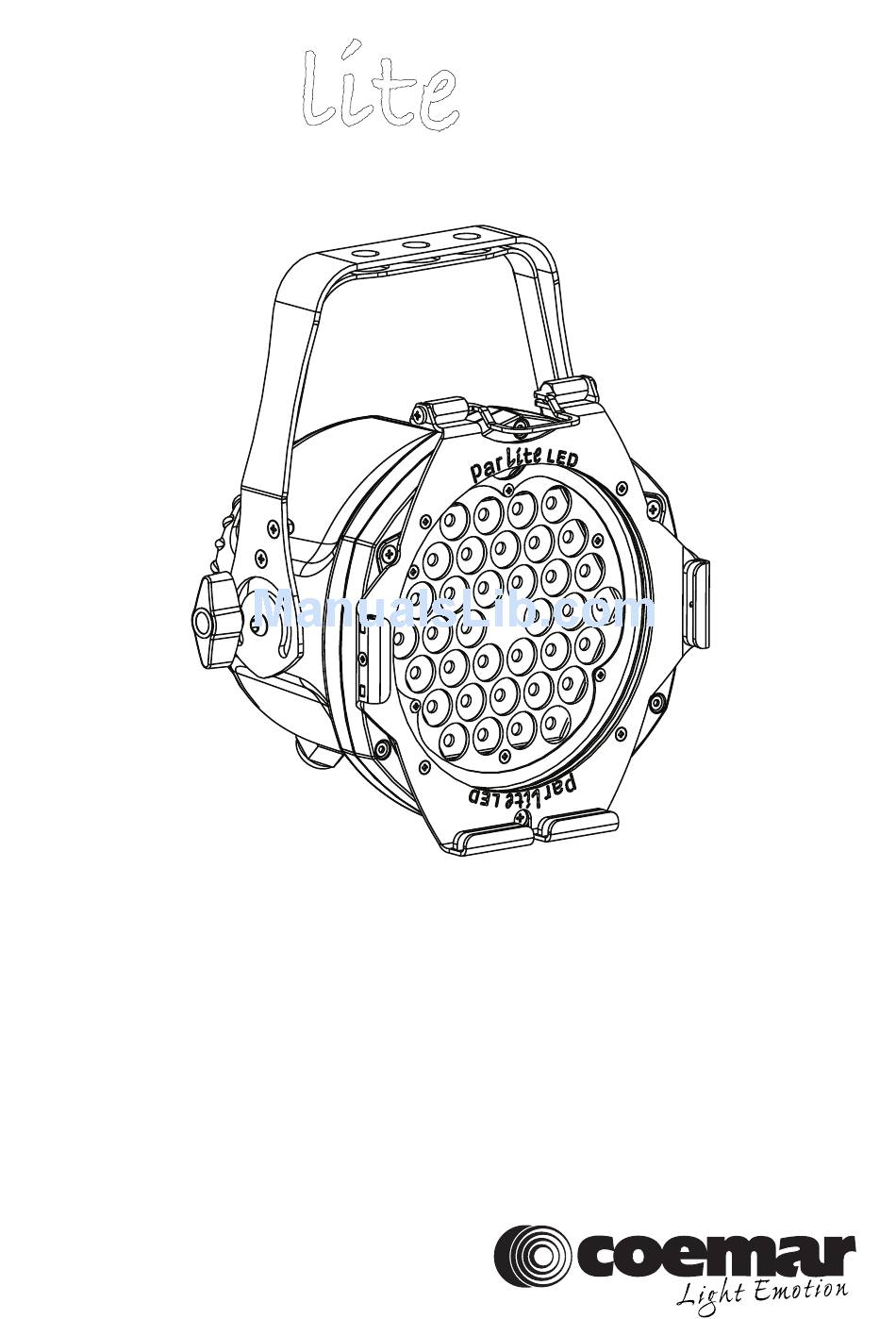

  • Page 1 lite LED RGBA manuale di istruzioni instructions manual Version 1.0 DIS156...
  • Page 3 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Par Lite LED : this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 4: Table Of Contents

    English Index 1. Packaging and transportation Pag. 5 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 5 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. Certification “ 3. Product specifications Pag. 6 3.1. Technical characteristics “ 3.2.

  • Page 5: Packaging

    2. For mains connection, adhere strictly to the guidelines outlined in this manual. 3. The level of technology inherent in the Par Lite LED requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre.

  • Page 6: Technical Characteristics

    212mm 7.24” 8.35” 268mm 10.5” 3.3. Projector components The principal components of the Par Lite LED are shown in the diagram below. Descriptions of the components 1. IP20 rear panel 2. IP65 rear panel 3. Projector body 4. Display 5. Led control PCB 6.

  • Page 7: Mechanical Installation

    Par Lite LED may be floor mounted or hung from an appropriate structure in any position. Permanent installation Use the three holes “A” on the yoke of the Par Lite LED for robust, permanent installation. Mobile installations If hanging the fixture from a lighting truss or similar, we recommend the use of appropriate clamps “B”, affixed to the yoke in the holes “A”...

  • Page 8: Adjusting Beam Direction

    4.2. Safety chain When hanging the Par Lite LED we recommend the use of a safety chain “C” affixed to the yoke and to the suspension device. The safety chain should be either a metal wire rope or a metal chain, both suitably rated for the purpose.

  • Page 9: Opening And Closing Up The Projector

    4.5. Adjusting the beam angle Several optional optical groups are available for Par Lite Led. They are used to vary the beam dimension and make it suitable for dif- ferent lighting applications and specifically: a group of lenses for a larger projection angle, a flood reflector and several filters that can be fitted either internally or externally to the unit The standard optical group, fitted on Par Lite Led, is composed by a group of lenses that gives 12°...
  • Page 10 To vary the wideness of the beam without opening the unit, it’ s possible to install an external filter holder “S” (code CO9169/1), as shown on following drawing. The following table details the range of beam angle and diffusion filters available for the Par Lite Led. Optical group...

  • Page 11: Operating Voltage And Frequency

    Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for use with the Par Lite Led. A good earth connection is essential for the correcdt operation of the Par Lite Led. Never install the unit unless the yellow/gree earth cable is securely connected.

  • Page 12: Connecting Dmx Signal

    Control signal is digital and is transmitted via two pair screened cable, as recommended in international standards for the transmission of DMX512. Connection is serial, utilising the XLR5 sockets located on the rear panel of the Par Lite LED. Signal connection via the XLR5 connectors Connection is to international standards.

  • Page 13: Dmx Addressing

    Each Par Lite LED utilises 8/4 channels of DMX 512 signal for complete control. IMPORTANT NOTE: the following points are valid for all the instructions which follow. 1. The DMX address may be altered without the need to turn the Par Lite LED off. The following are examples only for setting DMX addresses.

  • Page 14: Dmx Functions

    English 6.4. DMX functions channel type of function effect decimal percentage control 8ch 4ch 0 - 255 0% - 100% master dimmer proportional adjust luminous output intensity from 0 to 100% proportional control of the percentage of colour; from 0 to 100% proportional 0 - 255 0% - 100%...

  • Page 15: Master/Slave Mode

    Setting this function to on inhibits control via DMX signal. 7.1. MASTER/SLAVE mode In MASTER/SLAVE mode, it is possible to control, via a projector set as MASTER, a series of Par Lite LED units set to act as SLAVE tures. The table below displays the settings required for res to be connected in this manner.

  • Page 16: Functions (Mode)

    English 8. Function 8.1. Function modes Using the inbuilt functionality of the Par Lite LED via the display, it is possible to alter the function mode of the AOO 1 menu MOD E MEA S FUNC +o-- +o-- enter AOO 1...
  • Page 17 English 8.2. Setting up (FUNC) Using the inbuilt of the Par Lite LED via the Display, it is possible to alter the function settings of the fixture. AOO 1 menu MOD E FUNC MEA S +o-- +o-- enter 0 1 2 7...

  • Page 18: Diagnostic Functions (Meas)

    This procedure should only be undertaken by qualified and experienced technical personnel.. The display panel allows for the electronic alignment of the colors. This procedure is performed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being replaced (electronic parts).
  • Page 19 English 1. Press the menu button. FUNC 2. Press the + or - button until is displayed. Then press enter. RESE 3. Press the + or - button until is displayed. 4. Press the enter and menu buttons simultaneously, holding them for at least 10" . The projector will perform a reset and the display will -- -- -- -- ALIG show...

  • Page 20: Error Messages

    10. Maintenance Whilst every possible precaution has been taken to ensure the trouble-free operation of your Par Lite LED the following periodic main- tenance is highly recommended. We recommend that the voltage to the unit be removed prior to any maintenance procedure taking place.

  • Page 21: Periodic Maintenance

    11. Spare parts All the components of the Par Lite LED are available as spare parts from your Coemar service centre. Accurate description of the fixture, serial number, and type will assist us in providing for your requirements in an efficient and effective manner.
  • Page 22 Coemar Lighting Srl via Inghilterra 2 - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
