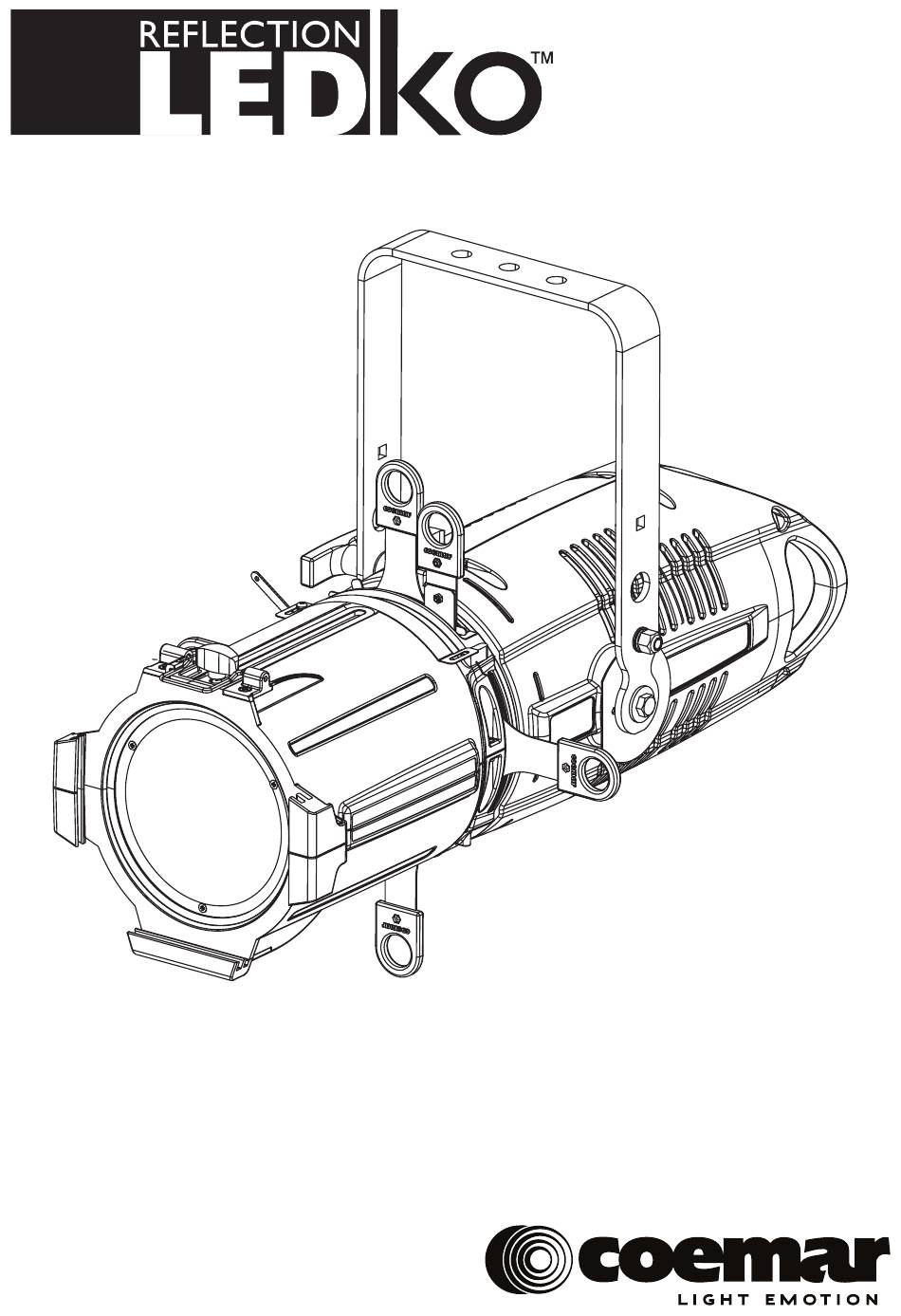

- Page 1 Basic...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko Basic: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation .......................Pag. 4 1.1 Packaging ............................Pag. 4 1.2 Transportation ...........................Pag. 4 2. General information .......................... Pag. 4 2.1 Safety informations ......................... Pag. 4 2.2 Warranty conditions ........................Pag. 5 2.3 EC norms ............................Pag. 5 3. Product specifications ........................Pag. 6 3.1 Technical characteristics ........................Pag. -
Page 4: Packaging And Transportation
Ensure the packaging contains: 1 LEDko Basic 1 Instruction manual 1 Main power plugs Transportation The LEDko Basic should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: Never locate the fixture on any flammable surface. -
Page 5: Warranty Conditions
The level of technology of LEDko Basic requires the use of specialised per- sonnel for all service applications; refer all work to your authorised Coemar service centre. A good earth connection is essential for the proper functioning of the projec- tor. -
Page 6: Product Specifications
Product specifications Technical characteristics Power supply 90-305 V, auto-sensing, 50/60 Hz Maximum current 0.6 A at 230 V, 1.27 A at 115 V Power factor Cosφ = 0.96 Max power consumption 140 W Color temperature Tungsten: 3.200 K, Daylight: 5.600 K Color Rendering Index (CRI) D and T models: CRI 80, CRI 90 Weight (without optic) -
Page 7: Unit's Main Components
Unit’s main components Components description A Adjustable yoke Iris (optional) Gobo holder (optional) Lens adjusting handles Yoke locking handle Gel frame locking spring Profile blade H Interchangeable optic... -
Page 8: Back Panel Description
Back panel description Potentiometer Knob Input for Switch ON/OFF power plug... -
Page 9: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 10: Mechanical Installation
Mechanical installation LEDko Basic may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. -
Page 11: Powering Up
The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regula- tory norms is strongly recommended. LEDko Basic should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of LEDko Basic. -
Page 12: Turning On The Projector
. Turning the projector on After following the previous steps, connect the projector to the power supply and press the button “A”. Once you connect the projector, use the potentiometer knob “B” to regulate the light output. -
Page 13: Accessories And Spare Parts
. Accessories and spare parts LEDko Basic is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube... - Page 14 BC10011A044 max. load 20 Kg. All the components of LEDko Basic are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
-
Page 15: Maintenance
Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. Fuses LEDko Basic has a 2 A mains fuse, that in most cases does not need to be replaced. -
Page 16: Accessories And Spare Parts
. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: LEDko Basic does not •... - Page 17 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 18 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 19 Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
