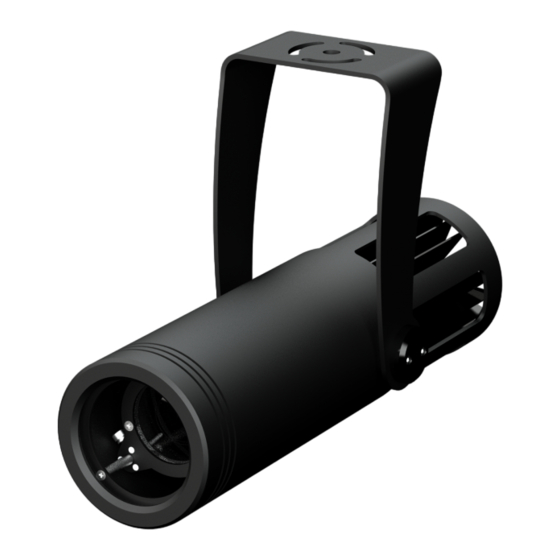

Summary of Contents for Coemar LEDKO EXT M

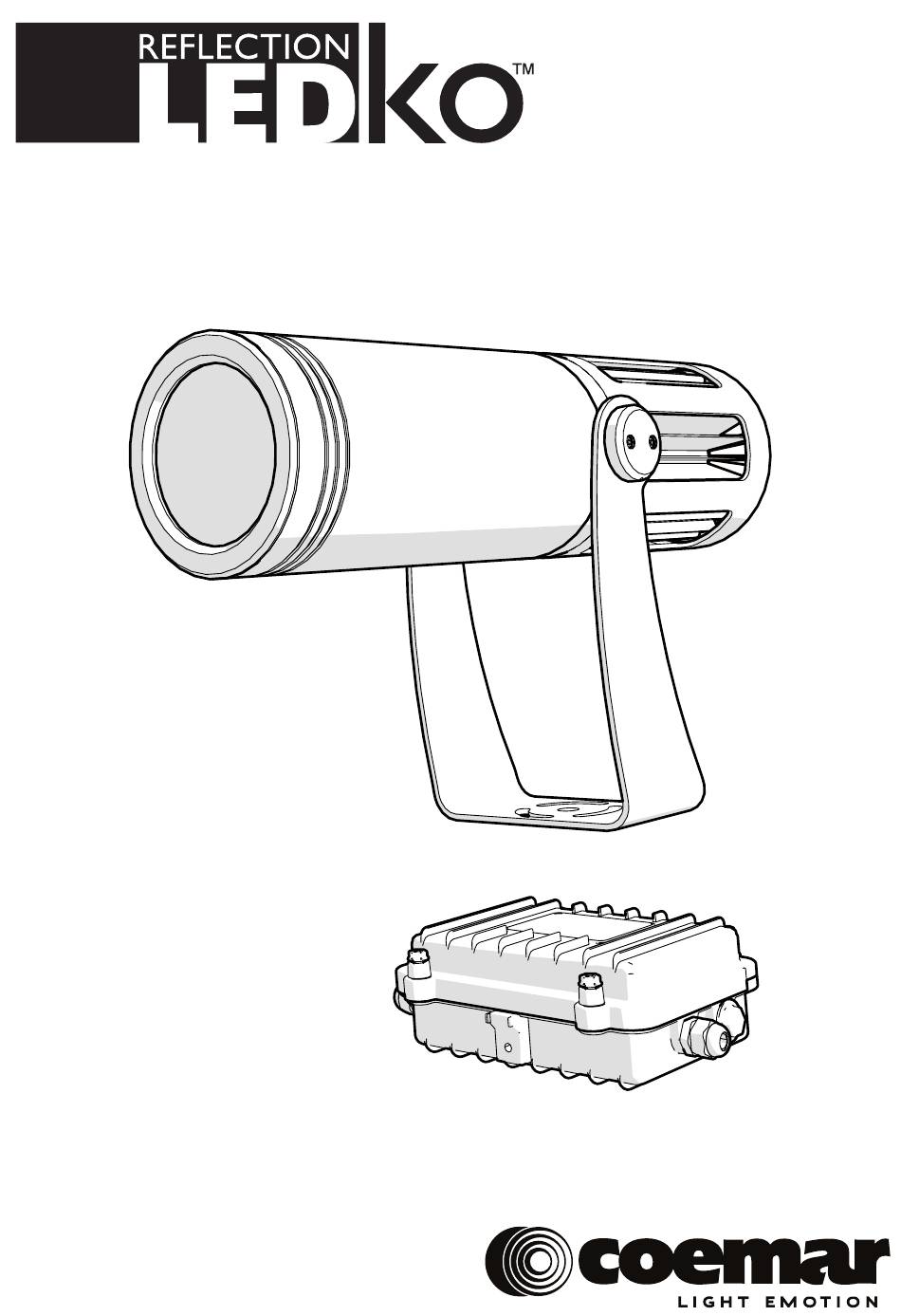

- Page 1 EXT M...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko EXT M LEDko EXT M: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation ..................Pag. 5 1.1 Packaging ........................Pag. 5 1.2 Transportation .......................Pag. 5 2. General information ......................Pag. 5 2.1 Safety informations ..................... Pag. 5 2.2 Warranty conditions ....................Pag. 6 2.3 EC norms ........................Pag. 6 3. Product specifications ......................Pag. 7 3.1 Technical characteristics .....................Pag. - Page 4 7. Accessories and spare parts ................... Pag. 12 8. Maintenance ........................Pag. 13 8.1 Firmware update ......................Pag. 13 8.2 Periodic cleaning ......................Pag. 13 8.3 Periodic controls ......................Pag. 13 8.4 Fuses ..........................Pag. 13 9. F.A.Q. and answers ......................Pag. 14...
-
Page 5: Packaging And Transportation
This information will assist in providing prompt and accurate advice from your Coemar Coemar service centre. Following the instructions and procedures outlined in this manual will ensure the maximum efficiency of this product for years to come. Packaging and transportation Packaging and transportation 1.1 1.1... -
Page 6: Warranty Conditions
3. The level of technology of LEDko EXT M requires the use of specialised per- sonnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the pro- jector. -
Page 7: Product Specifications
Product specifications Product specifications Technical characteristics Technical characteristics Power supply Power supply 85-264 V, auto-sensing, 47/63 Hz Maximum current Maximum current 0.28 A @ 230 V, 0.56 A @ 115 V Power factor Power factor Cosϕ = 0.9 Power consumption Power consumption 58 W Color temperature... -
Page 8: Unit's Main Components
Unit’s main components Unit’s main components Components description Components description Lens Cooling unit Power Box Yoke with mounting holes... -
Page 9: Installation
The safety chain must pass through the handles of the unit and then attached to the structure. If using steel cables and chains not Coemar’s production, make sure they are suitable to support the weight of the unit according to normative UL/ETL (required: the weight of 6 complete... -
Page 10: Adjusting Unit's Tilt
Adjusting unit’s tilt Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side screw “B B ” on the yoke, adjust the tilt and lock the yoke by tightening the screw again. -
Page 11: Powering Up
The unit may operates at voltages ranges from 85 to 264 VaC at a frequency of 47 or 63 Hz. It is not needed to effect any setup procedures: LEDko EXT M will automatically adjust its op- eration to suit any frequency or voltage within this range. - Page 12 The digital control signal is transmitted to the projector via a two pole cable screened as per International standards for the transmission of DMX 512 data. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko LEDko EXT M EXT M Series labelled DMX512 IN e OUT (see diagram).
- Page 13 Quick guide to menu Quick guide to menu The LEDko LEDko EXT M EXT M required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually.
- Page 14 RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected...
- Page 15 . DMX chart Fixed White Version DMX Chart 5 and 1 channels channel type of function effect decimal percentage control adjust luminous output master dimmer proportional 0 - 255 0% - 100% intensity from 0 to 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine...
- Page 16 . DMX chart VariWhite Version DMX Chart 5 channels type of channel function effect decimal percentage control adjust luminous output intensity master dimmer proportional 0 - 255 0% - 100% from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% step 2.800 K...
- Page 17 . Accessories and Spare parts All the components of LEDko LEDko EXT M EXT M are available as spare parts from your Coemar Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing...
- Page 18 Firmware update Firmware update The firmware of LEDko LEDko EXT M EXT M can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 11.2 11.2 Periodic cleaning Periodic cleaning !Regular cleaning is essential for fixture life and performance.
- Page 19 . F.A.Q. and answers . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar Coemar service. Question Question...
- Page 20 User notes .............................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 21 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 22 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
