AMQ ACTIV-Pro3 Installation Manual page 5

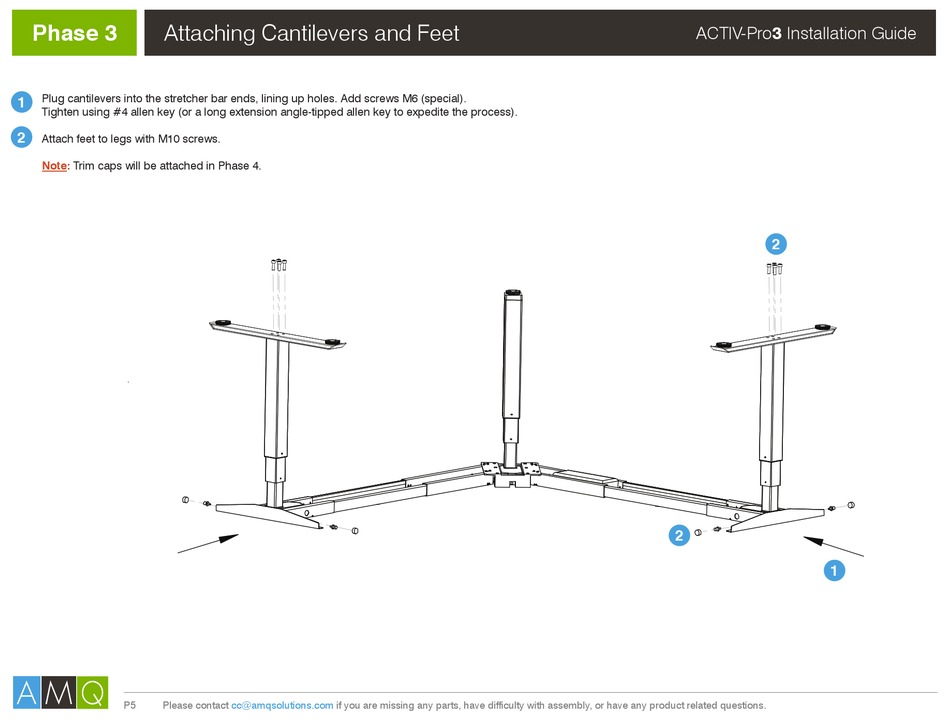

Phase 3 Attaching Cantilevers and Feet
1
Plug in cantilevers in the stretcher bar ends, line up holes and add screws M6(special)
Tighten using #4 allen key or a long extension angle-tipped allen key to expedite the process
Plug cantilevers into the stretcher bar ends, lining up holes. Add screws M6 (special). 2
1
Add trim caps to fill holes
Tighten using #4 allen key (or a long extension angle-tipped allen key to expedite the process).
3
Attach feet to end legs with M10 screws
2
Attach feet to legs with M10 screws.
Note: Trim caps will be attached in Phase 4.
