Summary of Contents for AMQ Amobi Team

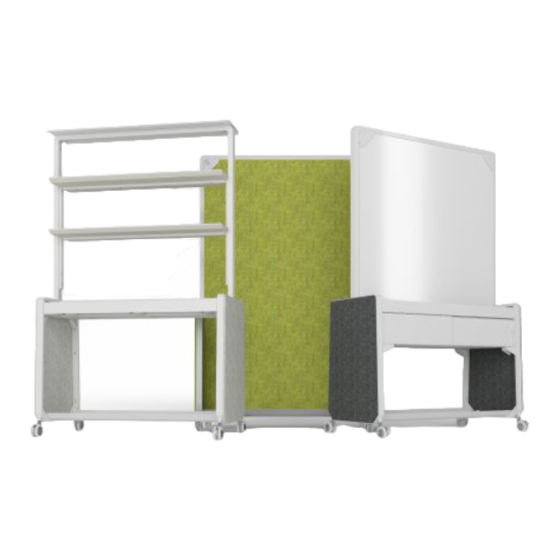

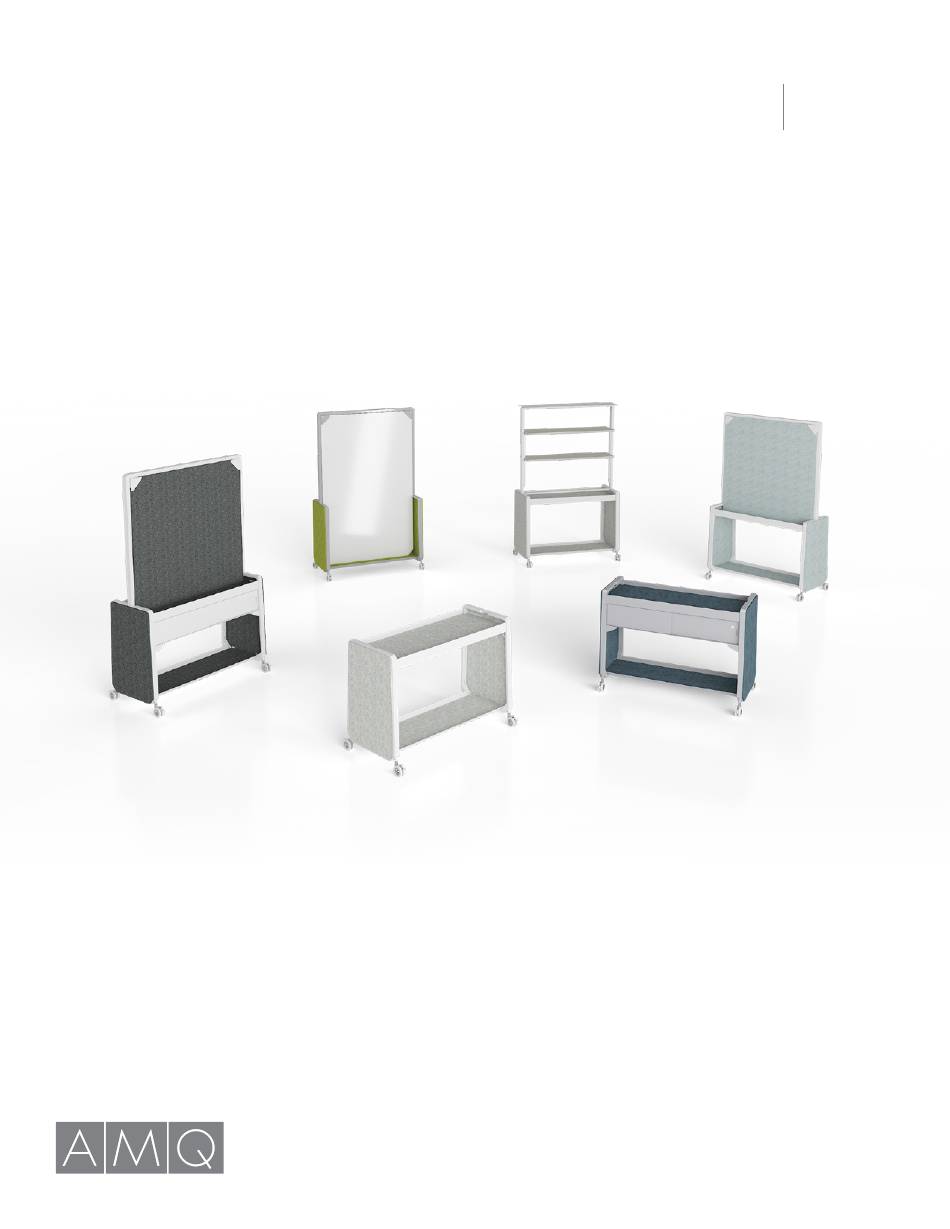

- Page 1 Amobi Team assembly guide...
-
Page 2: Table Of Contents
Collaboration Board Installation . . . . . . . . . . . . . 10 Amobi Team Half Wall with Storage Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Frame Assembly . -
Page 3: Amobi Team Wall
AMOBI TEAM WALL COMPONENTS M6 x 10 Allen 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 3... -
Page 4: Frame Assembly
. Tightly screw in (2) M6x10 screws on each side . M6 x 10 Allen 10mm *Torque setting of 5 to 7 Nm is recommended when using a power tool amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 4... - Page 5 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . top slot slot from the top amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 5...
-
Page 6: Collaboration Board Installation
Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket and rotate lever lock and rotate levers downwards to secure board . to remove board . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 6... -
Page 7: Amobi Team Half Wall
AMOBI TEAM HALF WALL COMPONENTS M6 x 10 Allen 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 7... -
Page 8: Frame Assembly
. Tightly screw in (2) M6x10 screws on each side . M6 x 10 Allen 10mm *Torque setting of 5 to 7 Nm is recommended when using a power tool amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 8... - Page 9 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . top slot slot from the top amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 9...
-
Page 10: Collaboration Board Installation
Removing Collaboration Boards Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket secure board . lock and rotate levers downwards to remove board . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 10... -
Page 11: Amobi Team Half Wall With Storage
AMOBI TEAM HALF WALL WITH STORAGE COMPONENTS M6 x 10 Allen 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 11... -
Page 12: Frame Assembly
. Tightly screw in (2) M6x10 screws on each side . M6 x 10 Allen 10mm *Torque setting of 5 to 7 Nm is recommended when using a power tool amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 12... - Page 13 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . top slot slot from the top amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 13...
-
Page 14: Collaboration Board Installation
Securing Collaboration Boards Removing Collaboration Boards Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket secure board . lock and free board . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 14... -
Page 15: Amobi Team Display
AMOBI TEAM DISPLAY COMPONENTS M6 x 12 Allen 10mm M6 x 15 Tapping Screw 15mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 15... -
Page 16: Frame Assembly
Insert castors into each slot and flip the lower frame upright . Step 2 Lock castors . With two people, align and insert the upper frame into the top of the lower frame . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 16... - Page 17 Step 3 Mount L-brackets onto frame using (8) M6x12 screws on each side . M6 x 12 Allen 12mm *Torque setting of 5 to 7 Nm is recommended when using a power tool amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 17...
-
Page 18: Shelf Installation
. Slot the other end of the rail into the vertical beam and push down to snap . slot from the top Step 2 Use mallet to mount shelf firmly onto supporting bar . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 18... - Page 19 Screw (4x) M6x15 screws into shelf from underneath by hand into pre-drilled holes . M6 x 15 Tapping Screw 15mm Use low to medium torque strength Step 4 Repeat Steps 1-2 for the upper rail and shelf . Top slot amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 19...
- Page 20 Screw (4x) M6x15 screws into shelf from underneath by hand into pre-drilled holes . Insert hood on top of frame and use (3x) M6x12 screws to secure . M6 x 12 Allen 12mm M6 x 15 Tapping Screw 15mm Use low to medium torque strength amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 20...
-
Page 21: Amobi Team Display With Storage
AMOBI TEAM DISPLAY WITH STORAGE COMPONENTS M6 x 12 Allen 10mm M6 x 15 Tapping Screw 15mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 21... -
Page 22: Frame Assembly
Insert the castors into each slot and flip the lower frame upright . Step 2 Lock castors . With two people, align and insert the upper frame into the top of the lower frame . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 22... - Page 23 Step 3 Mount L-brackets onto frame using (8) M6x12 screws on each side . M6 x 12 Allen 12mm *Torque setting of 5 to 7 Nm is recommended when using a power tool amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 23...
-
Page 24: Shelf Installation
. Slot the other end of the rail into the vertical beam and push down to snap . slot from the top Step 2 Use mallet to mount shelf firmly onto supporting bar . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 24... - Page 25 Screw (4x) M6x15 screws into shelf from underneath by hand into pre-drilled holes . M6 x 15 Tapping Screw 15mm Use low to medium torque strength Step 4 Repeat Steps 1-2 for the upper rail and shelf . Top slot amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 25...
- Page 26 Screw (4x) M6x15 screws into shelf from underneath by hand into pre-drilled holes . Insert hood on top of frame and use (3x) M6x12 screws to secure . M6 x 12 Allen 12mm M6 x 15 Tapping Screw 15mm Use low to medium torque strength amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 26...
-
Page 27: Amobi Team Cart
AMOBI TEAM CART COMPONENTS amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 27... -
Page 28: Cart Assembly
CART ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 28... -
Page 29: Amobi Team Cart With Storage
AMOBI TEAM CART WITH STORAGE COMPONENTS amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 29... -
Page 30: Cart Assembly
CART ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 30... - Page 31 Please contact cc@amqsolutions .com if you are missing any parts, have difficulty with assembly, or have any product related questions .
