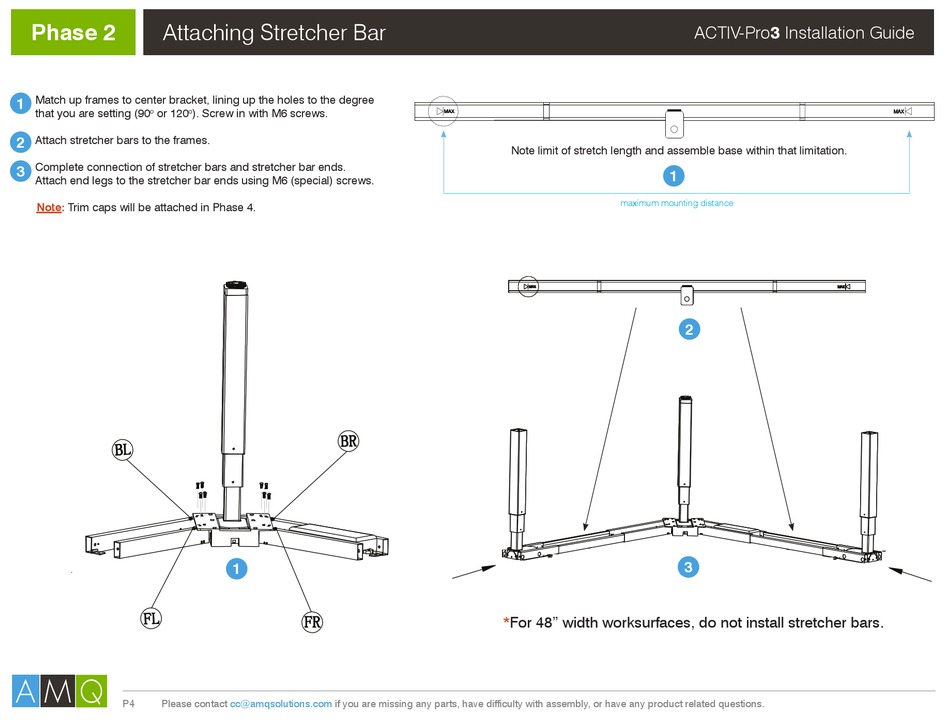

Phase 2 Attaching Stretcher Bar
1 Match up frames to center bracket, line up holes to the degree that you are setting, and screw in M6 screws
2
Assemble stretcher bars into the frames
3
Complete connecting the stretcher bars and stretcher bar ends
Match up frames to center bracket, lining up the holes to the degree
1
Assemble end legs to the stretcher bar ends using M6(special) screws
that you are setting (90 o or 120 o ). Screw in with M6 screws.
2
Attach stretcher bars to the frames.
Complete connection of stretcher bars and stretcher bar ends.
3
Attach end legs to the stretcher bar ends using M6 (special) screws.
Note: Trim caps will be attached in Phase 4.
P4 Please contact
1
1
cc@amqsolutions.com if you are missing any parts, have difficulty with assembly, or have any product related questions.
Note limit of stretch length and assemble base within that limitation.
1
maximum mounting distance
*For 48" width worksurfaces, do not install stretcher bars.
