Summary of Contents for AMQ Amobi Team Wall

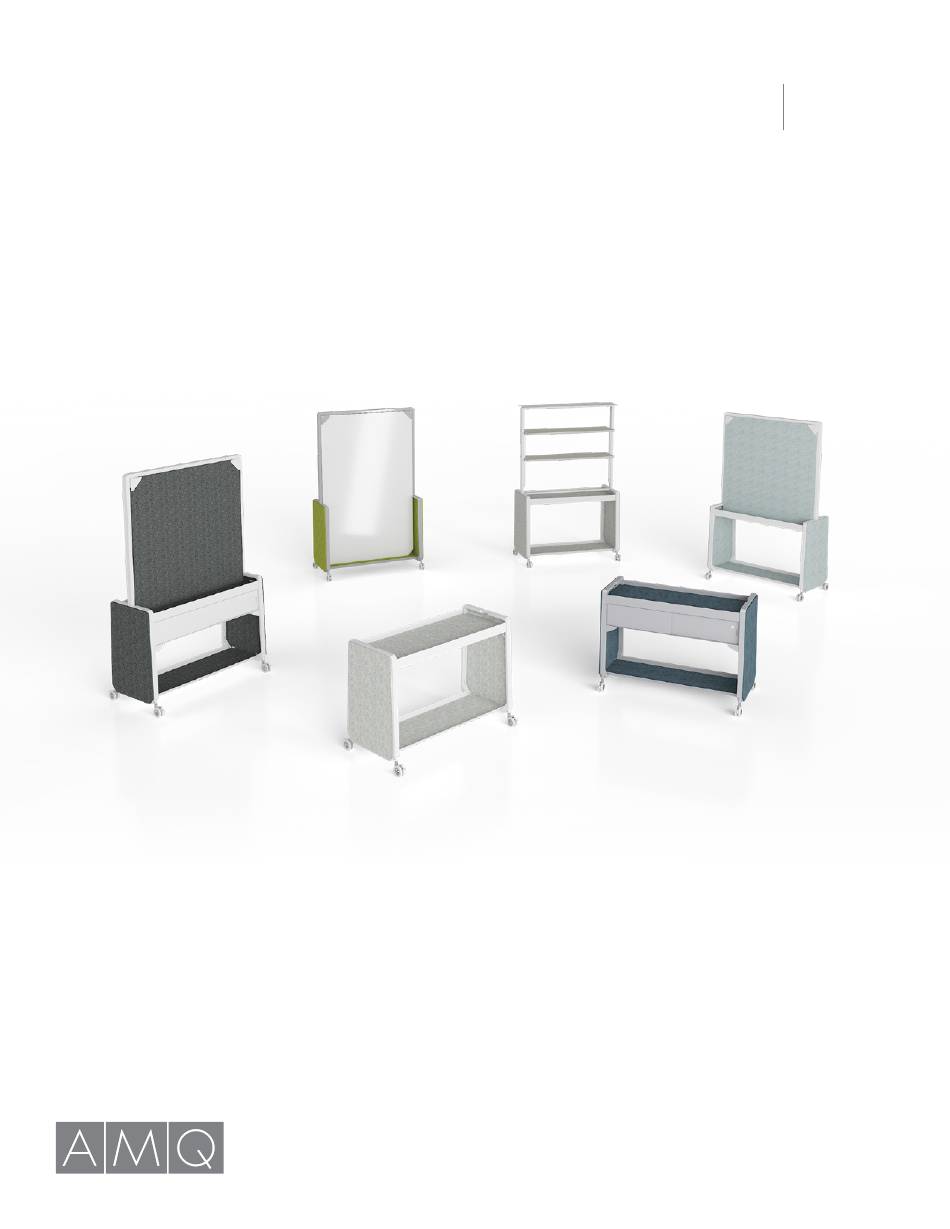

  • Page 1 Amobi Team assembly guide...

  • Page 2: Table Of Contents

    CONTENTS Amobi Team Wall Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Frame Assembly .

  • Page 3: Amobi Team Wall

    AMOBI TEAM WALL COMPONENTS M6 x 10 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 3...

  • Page 4: Frame Assembly

    FRAME ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . Step 2 Lock castors . With 2 people, align and insert the upper frame into the top of the lower frame . Tightly screw in (2) M6x10 screws on each side .
  • Page 5 FRAME ASSEMBLY Step 3 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 5...

  • Page 6: Collaboration Board Installation

    COLLABORATION BOARD INSTALLATION Step 1 Slide collaboration board against middle of frame . Securing Collaboration Boards Removing Collaboration Boards Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket and rotate lever lock and rotate levers downwards to secure board .

  • Page 7: Amobi Team Half Wall

    AMOBI TEAM HALF WALL COMPONENTS M6 x 10 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 7...

  • Page 8: Frame Assembly

    FRAME ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . Step 2 Lock castors . With two people, align and insert the upper frame into the top of the lower frame . Tightly screw in (2) M6x10 screws on each side .
  • Page 9 FRAME ASSEMBLY Step 3 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 9...

  • Page 10: Collaboration Board Installation

    COLLABORATION BOARD INSTALLATION Step 1 Insert collaboration board behind quick release lever . Securing Collaboration Boards Removing Collaboration Boards Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket secure board . lock and rotate levers downwards to remove board .

  • Page 11: Amobi Team Half Wall With Storage

    AMOBI TEAM HALF WALL WITH STORAGE COMPONENTS M6 x 10 10mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 11...

  • Page 12: Frame Assembly

    FRAME ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . Step 2 Lock castors . With two people, align and insert the upper frame into the top of the lower frame . Tightly screw in (2) M6x10 screws on each side .
  • Page 13 FRAME ASSEMBLY Step 3 Angle the rail hooks into vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 13...

  • Page 14: Collaboration Board Installation

    COLLABORATION BOARD INSTALLATION Step 1 Insert collaboration board behind quick release lever . Securing Collaboration Boards Removing Collaboration Boards Place corner brackets on each upper corner . Push button on bracket to release Push button to lock bracket secure board . lock and free board .

  • Page 15: Amobi Team Display

    AMOBI TEAM DISPLAY COMPONENTS M6 x 10 10mm M6 x 15 Tapping screw 15mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 15...

  • Page 16: Frame Assembly

    FRAME ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . Step 2 Lock castors . With two people, align M6 x 10 and insert the upper frame into the top of the lower frame . Tightly screw in (2) M6x10 screws on each side .
  • Page 17 FRAME ASSEMBLY Step 3 Mount L-brackets onto frame using (8) M6x10 screws on each side . M6 x 10 10mm *Use of high-torque screw head is recommended for a better result amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 17...

  • Page 18: Shelf Installation

    SHELF INSTALLATION Step 1 Insert lower rail first . Angle the rail hooks into the vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . Step 2 Align lower shelf with vertical beam and slide down onto bottom rail .
  • Page 19 SHELF/HOOD INSTALLATION Step 3 Repeat Step 1 for the upper rail Repeat Step 2 for the upper shelf M6 x 15 Tapping screw 15mm Step 4 Insert hood on top of frame and use (3x) M6x10 screws to secure . M6 x 10 10mm amqsolutions.com...

  • Page 20: Amobi Team Display With Storage

    AMOBI TEAM DISPLAY WITH STORAGE COMPONENTS M6 x 10 10mm M6 x 15 Tapping screw 15mm amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 20...

  • Page 21: Frame Assembly

    FRAME ASSEMBLY Step 1 Insert the castors into each slot and flip the lower frame upright . Step 2 M6 x 10 Lock castors . With two people, align and insert the upper frame into the top of the lower frame . Tightly screw 10mm in (2) M6x10 screws on each side .
  • Page 22 FRAME ASSEMBLY Step 3 Mount L-brackets onto frame using (8) M6x10 screws on each side . M6 x 10 10mm *Use of high-torque screw head is recommended for a better result amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 22...

  • Page 23: Shelf Installation

    SHELF INSTALLATION Step 1 Insert lower rail first . Angle the rail hooks into the vertical beam slots and push down to snap onto the vertical beam . Slot the other end of the rail into the vertical beam and push down to snap . Step 2 Align lower shelf with vertical beam and slide down onto bottom rail .
  • Page 24 SHELF/HOOD INSTALLATION Step 3 Repeat Step 1 for the upper rail Repeat Step 2 for the upper shelf M6 x 15 Tapping screw 15mm Step 4 Insert hood on top of frame and use (3x) M6x10 screws to secure . M6 x 10 10mm amqsolutions.com...

  • Page 25: Amobi Team Cart

    AMOBI TEAM CART COMPONENTS amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 25...

  • Page 26: Cart Assembly

    CART ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 26...

  • Page 27: Amobi Team Cart With Storage

    AMOBI TEAM CART WITH STORAGE COMPONENTS amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 27...

  • Page 28: Cart Assembly

    CART ASSEMBLY Step 1 Insert castors into each slot and flip the lower frame upright . amqsolutions.com AMOBI TEAM ASSEMBLY GUIDE | 28...
  • Page 29 Please contact cc@amqsolutions .com if you are missing any parts, have difficulty with assembly, or have any product related questions .
