AMQ Activ Assembly Manual

Hide thumbs Also See for Activ:

Advertisement

Quick Links

Download this manual
For Household and Commercial Use

Advertisement

loading
Need help?

Need help?

Do you have a question about the Activ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMQ Activ

Summary of Contents for AMQ Activ

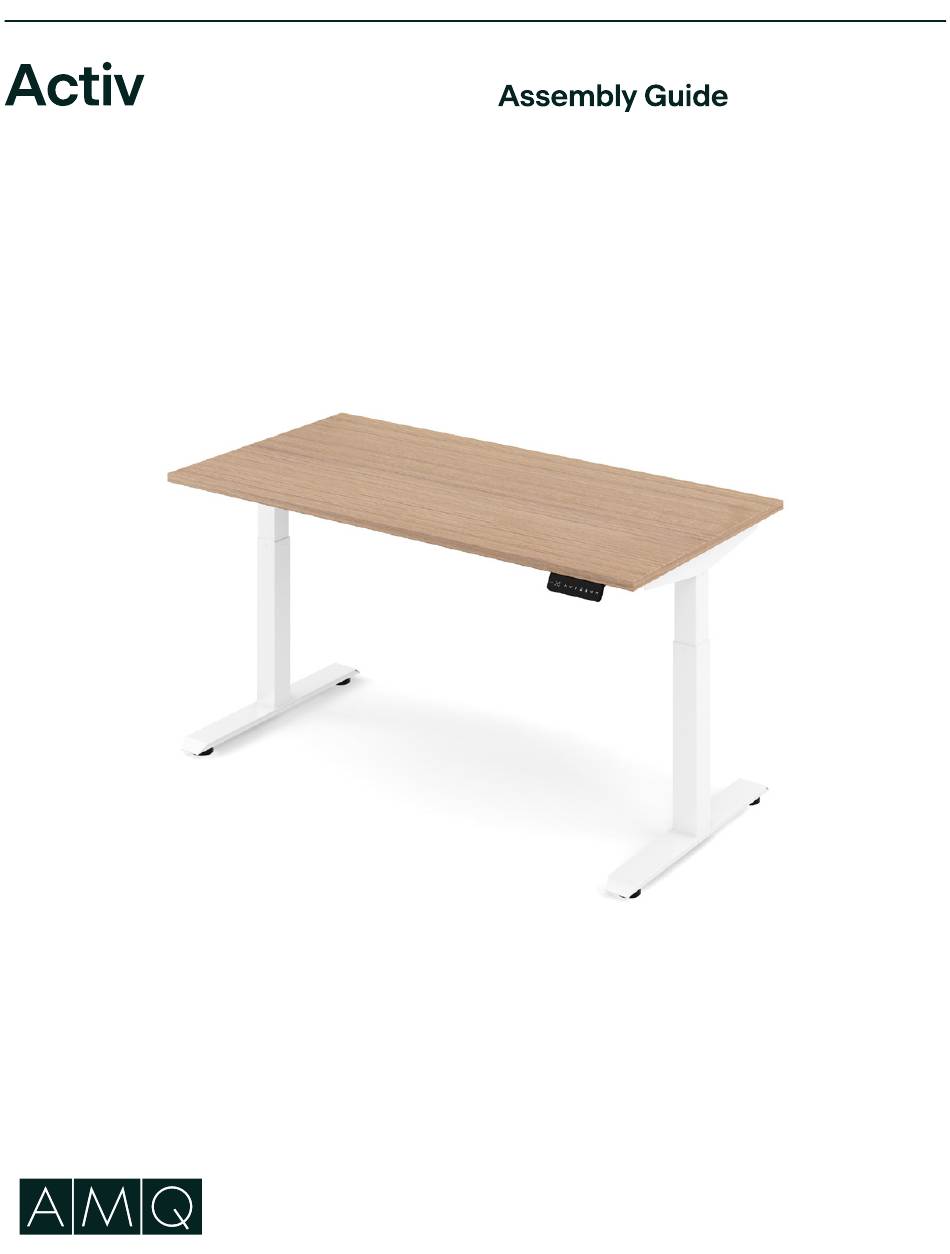

  • Page 1 For Household and Commercial Use...

  • Page 2: Safety Instructions

    PLUG ILLUSTRATION DISCLAIMER - Illustrations shown here may not match your product. Depending on your region, the plug pin size and shape may change. OPERATING INSTRUCTIONS Please refer to the User Guide, which is available online. Activ-Pro Assembly Guide | 2 amqsolutions.com...

  • Page 3: Safety Statement

    Connect the equipment into an outlet or a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by AMQ could void your authority to operate the product. Activ-Pro Assembly Guide | 3...
  • Page 4 AMQ adjustable-height bases may NOT be accepted as compliant to municipal electrical codes or OSHA federal workplace standards, because this use does not create an NRTL (UL, ETL, etc.) listed product. AMQ is not responsible for the ultimate determinations of compliance for height-adjustable bases with non-AMQ work surfaces.AMO assumes NO liability for lack of standards compliance in these instances.
  • Page 5 Management Clip 8mm 5mm Screw caps x 8 Power cable x 1 Allen keys *Feet and cantilevers are boxed separately. Optional LED control handset x 1 Stretcher bar assembly with control box Castor with brake Activ-Pro Assembly Guide | amqsolutions.com...
  • Page 6 Phase 1 | Preparing for Assembly Step 1 Place Stretcher Bar unit upside down on work area. Turn Stretcher Bar upside down The label will face up when Stretcher Bar is upside down and ready to begin assembly. Activ-Pro Assembly Guide | 6 amqsolutions.com...
  • Page 7 Phase 2 | Attaching Legs Step 1 Slide leg columns into place and attach with M6 screws. Match inside holes first and lightly tighten at this point. Match inside holes first and lightly tighten at this point. M6*8 Activ-Pro Assembly Guide | 7 amqsolutions.com...
  • Page 8 flush fit. Tab level, go back through and tighten each screw into place (fit is snug). completely. Place plastic caps over each screw. Use screw caps M6*8 Activ-Pro Assembly Guide | 8 amqsolutions.com...
  • Page 9 Phase 4 | Feet Assembly Step 1 Attach feet using M10 socket screws. Match all 4 holes first to confirm fit before tightening completely. M10*30 Activ-Pro Assembly Guide | 9 amqsolutions.com...
  • Page 10 – tighten all screws. M6*10 Use 4mm allen key to tighten pre-mounted inset screws M6*10 Centered screw bracket IMPORTANT NOTE: Work surface overhangs larger than .964” (25.0mm) are not allowed on widths < 64.0” (1625.6mm) Activ-Pro Assembly Guide | 10 amqsolutions.com...
  • Page 11 Handset Handset Hole T - Type Cantilever C - Type Cantilever ST5*20 ST5*16 The wire of the Handset passes through the Handset Hole, connected (18) (18) to the Control box. for worksurface for worksurface Activ-Pro Assembly Guide | 11 amqsolutions.com...
  • Page 12 Power Right Handset motor Power Left motor Connect each plug according to the drawing. Orient yourself to the table assembly by facing as a user to identify the left and right motors Activ-Pro Assembly Guide | 12 amqsolutions.com...
  • Page 13 floor by flipping it over approximately 90° (Handset facing up). Note: It is recommended to operate on a level floor with carpets. And when flipping the table, 2 people need to operate at the same time. Activ-Pro Assembly Guide | 13 amqsolutions.com...
  • Page 14 Note: Casters are not offered for C-legs base or desk. desk to its upright position. Number 12 open wrench Locking Caster Not provided by AMQ Activ-Pro Assembly Guide | 14 amqsolutions.com...
  • Page 15 Step 1. You may need to hold for 2-3 seconds to activate the base. Note: If it does not adjust to the programmed height, repeat Step 1 followed by Step 2. Activ-Pro Assembly Guide | 15 amqsolutions.com...
  • Page 16 Please contact cc@amqsolutions.com if you are missing any parts, have difficulty with assembly, or have any product related questions.

This manual is also suitable for:

Activ-pro
