Users can read and write all configuration parameters of their devices in this section. The process is quite simple. Just connect
the device to the computer where the Smart Devices App is installed using the USB cable provided.

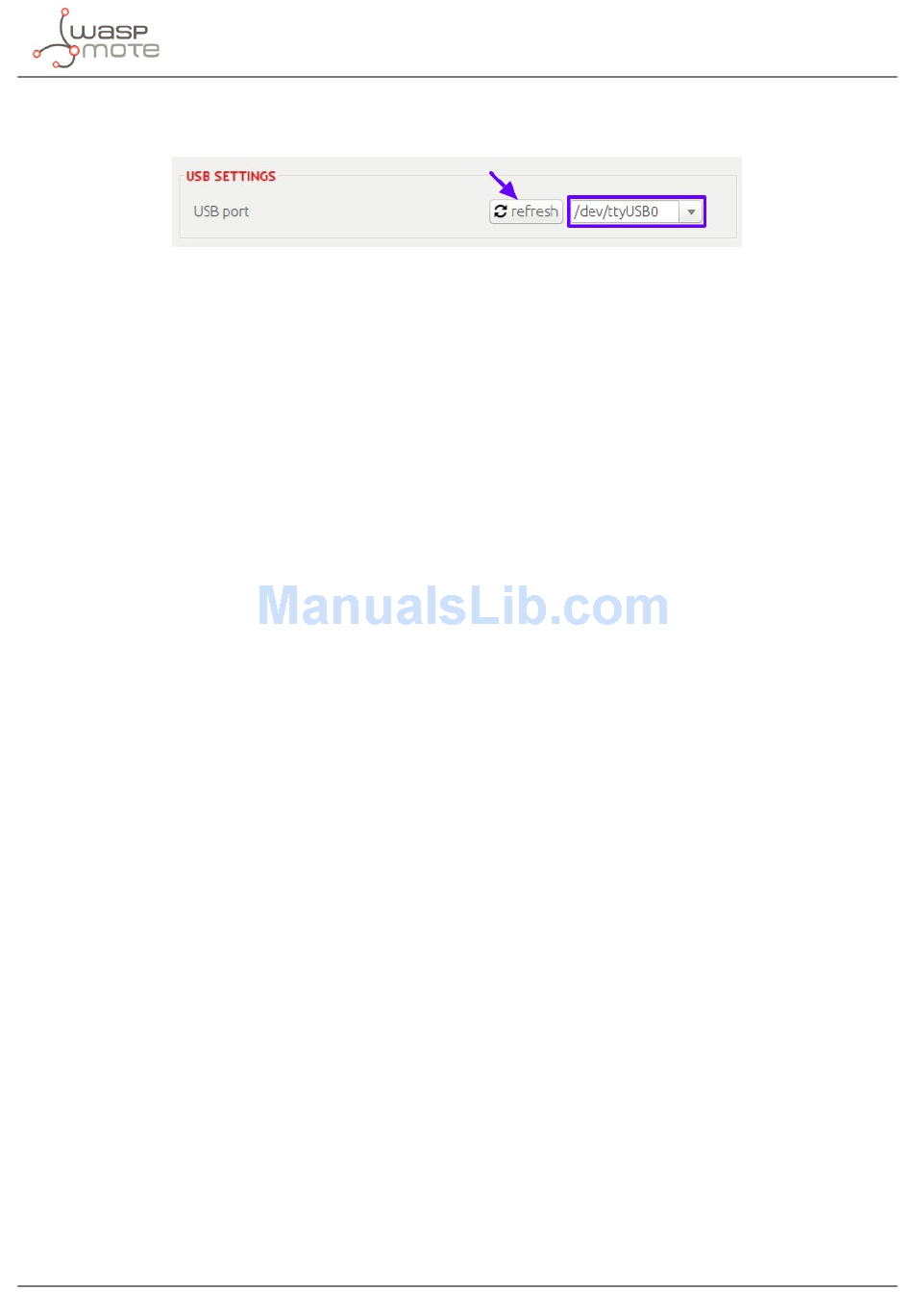

Figure : USB settings
Then, refresh the "USB settings" block which is in the bottom-right corner, clicking in "refresh" button. Once done it, the port
where the device has been connected must be selected.
But before configuring the device, it is very important that users take in consideration the following list where all parameters
are explained:
TIME SETTINGS
Sleep time: Sleep time between consecutive sensor measurements.
•
Keep-Alive: Elapsed time since last transmission to send a Keep-Alive frame.
•
NIGHT MODE
On/Off button: Button to activate/deactivate this option. If it is not active, the following fields will not be effective.
•
Duration: Night mode duration time.
•
• Start hour: Night Mode start hour.
Sleep time: Sleep time between consecutive sensor measurements (during night mode).
•
• Keep-Alive: Elapsed time since last transmission to send a Keep-Alive frame (during night mode).
EXTRA CONFIGURATION
Sensor Threshold: Threshold for detecting a vehicle over the parking slot.
•
• Battery readings per day: Battery readings per day.
Daily frame: Enable/Disable daily frame sending.
•
RADIO MODE
• Radio mode: Radio transmission mode among Sigfox, LoRaWAN or their combinations.
LoRaWAN parameters
LoRaWAN join mode: LoRaWAN join mode, ABP or OTAA.
•
• Device EUI: LoRaWAN device EUI.
Device Address: LoRaWAN device address.
•
• Port: LoRaWAN port.
Network Session Key: LoRaWAN network session key.
•
Application Session Key: LoRaWAN application session key.
•
• Application Key: LoRaWAN application key.
Application EUI: LoRaWAN application EUI.
•
