Start Frames; Start Frame Number 1 - Libelium Waspmote Plug & Sense! Smart Parking Technical Manual

Bit
7-6
5
4
3
2
1
0
Figure : "Error data" byte structure

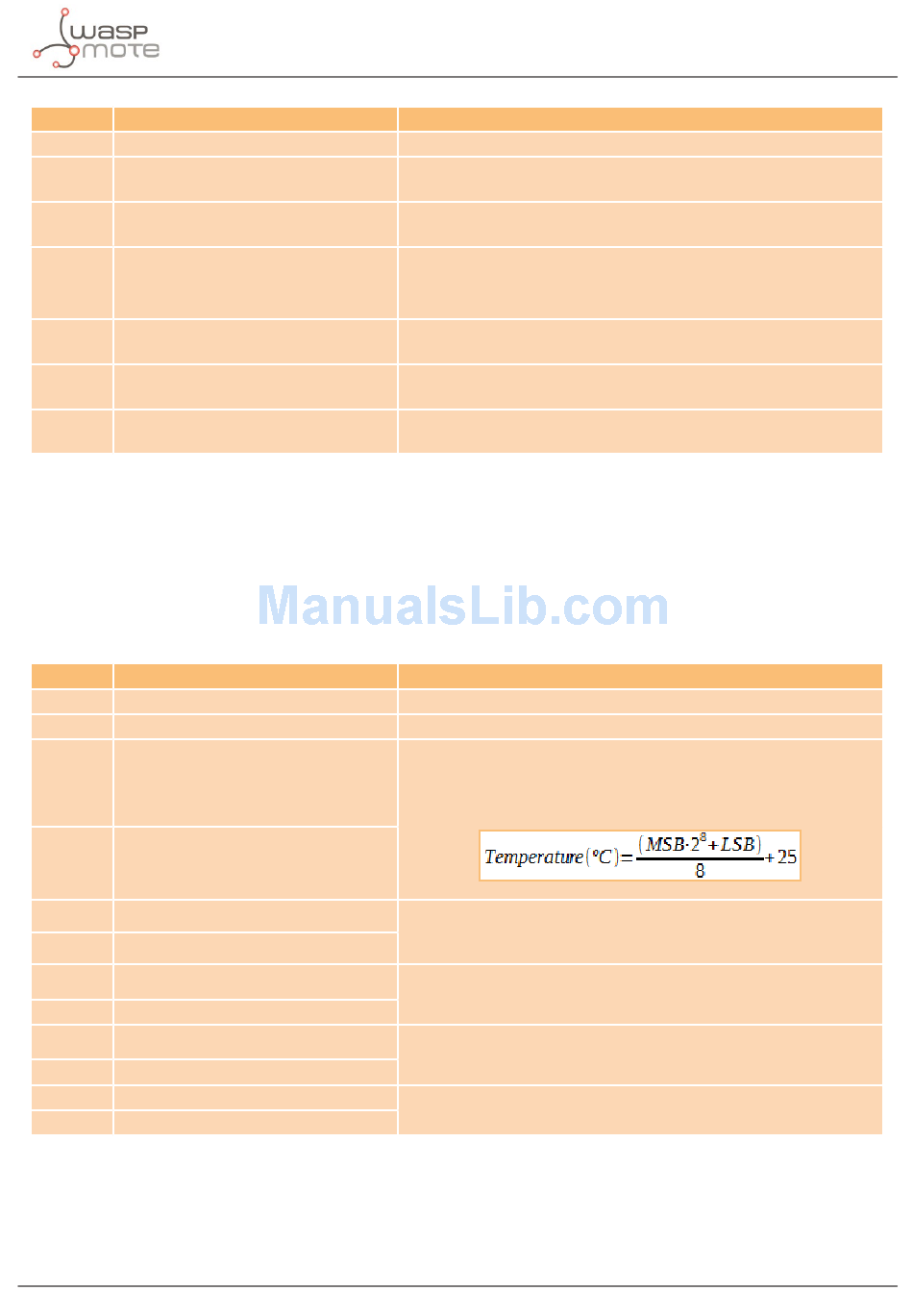

7.5. Start frames

When the node starts to work in the parking slot, it will send 2 frames. The first one is dedicated to the sensor and the battery.
The second one is used to send some parameters about the chosen configuration.

7.5.1. Start frame number 1

Byte
0
1
2 Temperature MSB
3 Temperature LSB
4 X axis reference MSB
5 X axis reference LSB
6 Y axis reference MSB
7 Y axis reference LSB
8 Z axis reference MSB
9 Z axis reference LSB
10 Battery voltage MSB
11 Battery voltage LSB
Figure : Start frame number 1 structure
Name
Reserved
Error Sigfox
Error LoRaWAN
Error RTC
Error X axis
Error Y axis
Error Z axis
Name
Basic data
Frame counter
Reserved bits. Do not consider.
Set to '1' when an error related with the Sigfox radio is detected. Clear
when no issues detected.
Set to '1' when an error related with the LoRaWAN radio is detected.
Clear when no issues detected.
Set to '1' when an error related with the RTC (internal clock) is detected.
Clear when no issues detected.
Set to '1' when an error appears in the X axis of the sensor. Clear when
no issues detected.
Set to '1' when an error appears in the Y axis of the sensor. Clear when
no issues detected.
Set to '1' when an error appears in the Z axis of the sensor. Clear when
no issues detected.
Detailed description in section "Frame"
Detailed description in section "Frame"
Raw temperature from the parking internal sensor. The value stored in
these two bytes is a 16-bit value in 2's complement form. To convert to
Celsius degrees use the next formula:
Reference value from the sensor associated to the X axis. The value
stored in these two bytes is a 16-bit value in 2's complement form.
Reference value from the sensor associated to the Y axis. The value
stored in these two bytes is a 16-bit value in 2's complement form.
Reference value from the sensor associated to the Z axis. The value
stored in these two bytes is a 16-bit value in 2's complement form.
Battery voltage in millivolts. The value stored in these two bytes is an
unsigned 16-bit value.
