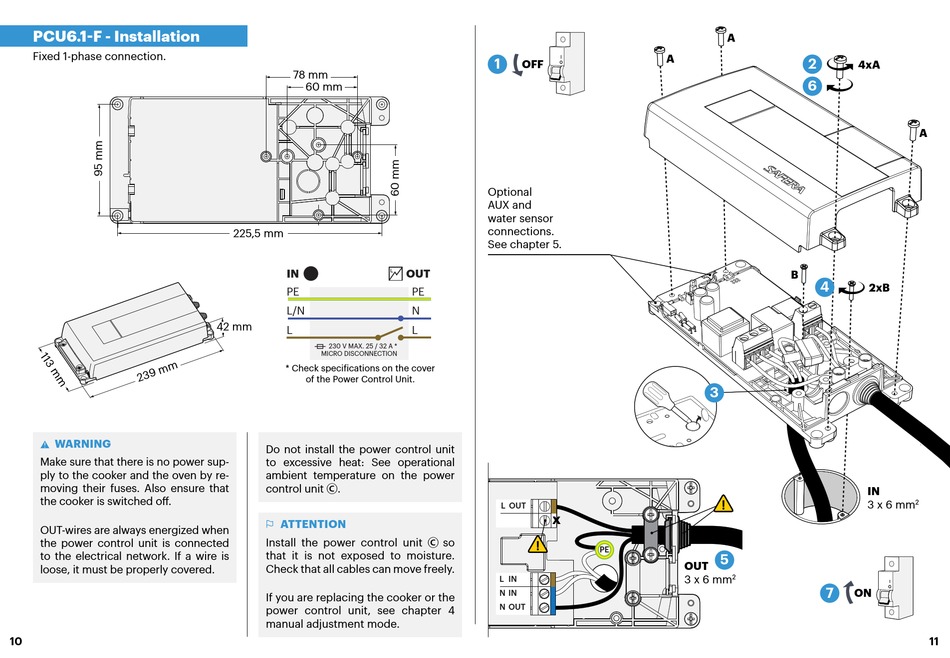

PCU6.1-F - Installation
Fixed 1-phase connection.
ѥ WARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched off.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
10
78 mm
60 mm
225,5 mm
IN
PE
L/N
42 mm
L
230 V MAX. 25 / 32 A *
MICRO DISCONNECTION
* Check specifications on the cover
of the Power Control Unit.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing the cooker or the
power control unit, see chapter 4
manual adjustment mode.
1
OFF
Optional
AUX and
water sensor
connections.
See chapter 5.
OUT
PE
N
L
L OUT
X
L IN
N IN
N OUT
A
A
3
PE
5
OUT
3 x 6 mm
2
2
4xA
6
A
B
4
2xB
IN
3 x 6 mm
2
7
ON
