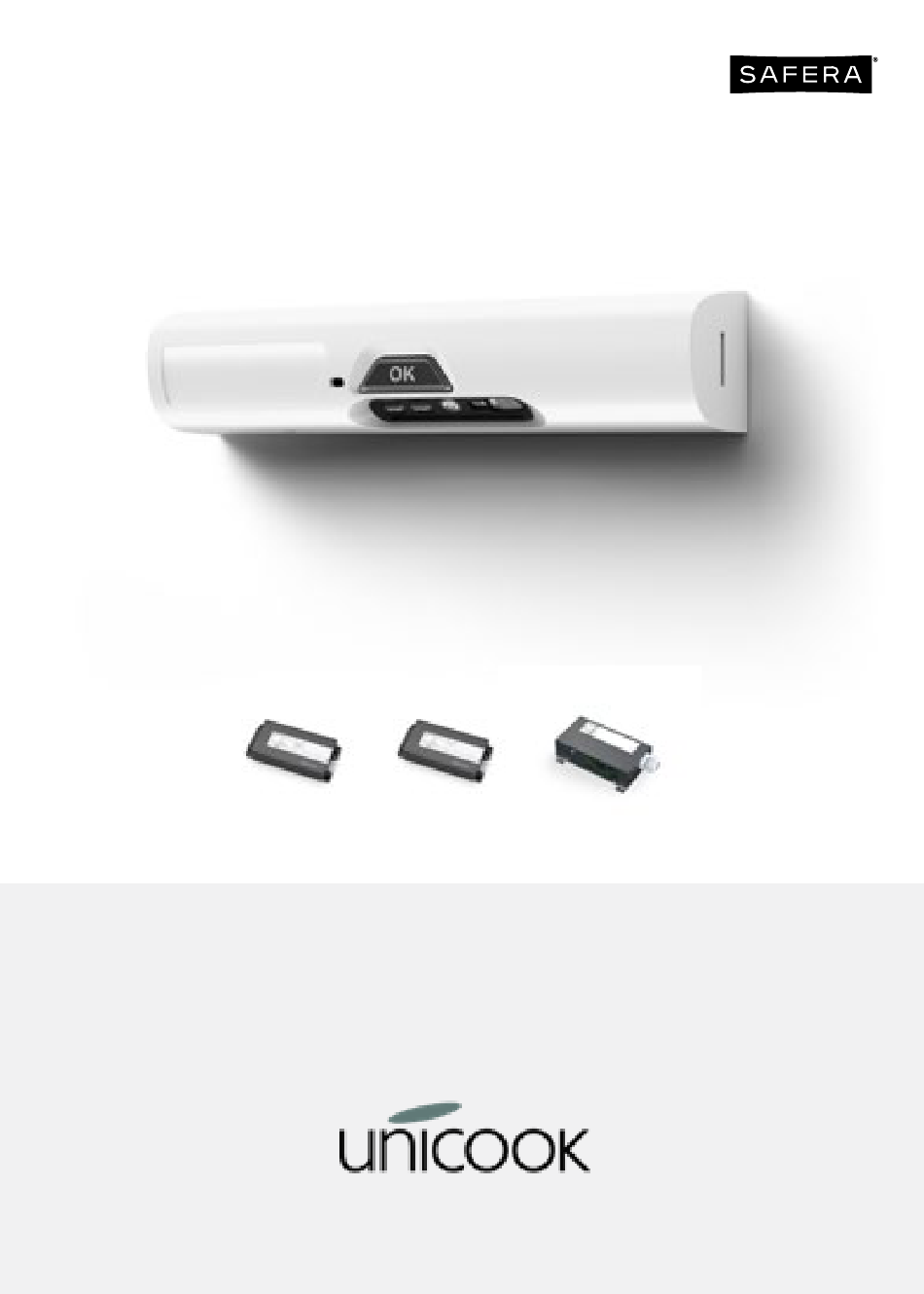

- Page 1 Powered by PCU6.3-F PCU6.1-F PCU10.2.-F User and Installation Manual Unicook Airis Sense | Unicook Airis Sense Wi-Fi 22117_01-B...
-
Page 2: Table Of Contents
Congratulations on buying the Unicook 3. Stove Guard Description Airis Stove Guard. 4. Installation This guide describes the use, installation 5. Connecting the Safera App and maintenance of: 6. Using the Stove Guard 7. Maintenance • Airis Sense with Bluetooth 8. - Page 3 2.1 General Warnings carried out by a qualified electrician. If the connection cord is damaged, WARNING it must be replaced by the service This device is designed to the personnel of the manufacturer or standard EN 50615 Category B - their representative to avoid hazards.
-
Page 4: Stove Guard Description
For the most up to date mounting methods and stove compatibility, 3.3 Compatibility please refer to the “Installation Unicook Airis is compatible with most Wizard” -section of the Safera App, electrical cookers, hobs and ovens see chapter 5. meant for household use: •... - Page 5 Ⓐ Sensor unit ❹ Indicator light ❸ OK Button Sensors ❺ Batteries ❻ Adhesive tape and protection strips Ⓒ Power bracket with extra batteries...
-
Page 6: Installation
Install the sensor unit Ⓐ User and installation manual WARNING Step 4/4 Please contact your vendor if you Finish the installation (two options): notice anything unusual about the appliance. • Quick setup in default installation position • Guided setup with the Safera App... - Page 7 Fixed 1-phase connection. See pages 10-11. PCU10.2.-F 2-phase connection with fixed installation. See pages 12-13. WARNING If you are replacing the cooker or the power control unit Ⓑ, pair the power control unit again using the Safera App (see chapter 5).
- Page 8 PCU6.3-F - Installation Fixed 3-phase connection. 78 mm 60 mm 225,5 mm 42 mm MICRO DISCONNECTION WARNING Do not install the power control unit Ⓑ where it will be exposed to excessive Turn the power off at the isolation heat: See operational ambient tem- switch and ensure that all rings, and perature on the power control unit.
- Page 9 Phase order can be freely chosen. If only two phases are used, connect them to the terminals L1 and L2.
- Page 10 PCU6.1-F - Installation Fixed 1-phase connection. 78 mm 60 mm 225,5 mm 42 mm 230 V MAX. 35 A MICRO DISCONNECTION WARNING Do not install the power control unit Ⓑ where it will be exposed to excessive Turn the power off at the isolation heat: See operational ambient tem- switch and ensure that all rings, and perature on the power control unit.
- Page 11 L OUT...
- Page 12 PCU10.2-F - Installation 2-phase connection with fixed installation. 140 mm 195 mm 231 mm 122 mm 63 mm L2/N L2/N 208-240 V MAX. 50 A 50-60 Hz WARNING The PCU can be installed behind an oven, below a hob, under a plinth or Turn the power off at the isolation in a kitchen cupboard.
- Page 13 Mount Take off the power fuses to control unit the stove. Ⓒ on the wall behind the cooker or into the cabinet Remove the cover next to the to access internal cooker. wiring. Connect the stove plug to the power control Ground wire is (OUT).
- Page 14 4. Installation - Step 3/4 Install the sensor unit Ⓐ 4.3 Install the batteries in the sensor unit Ⓐ to activate the wireless connection to the power control unit Ⓑ 1. Open the sensor unit Ⓐ by pushing one of the bracket's claws on the side gently with a flat headed screw driver and pulling off the sensor unit Ⓐ...
- Page 15 4.4 Mount the sensor unit Ⓐ -8° +8° 1. Remove grease and dirt from the surface before attaching the sensor unit Ⓐ with the adhesive tape ❻. 2. Remove the protection strips from the adhesive tape ❻. 3. Mount the sensor unit Ⓐ according max.
- Page 16 5. Working order checked successfully: 2. The sensor unit Ⓐ is installed in other than the default installation position or cooker type • The sensor unit Ⓐ needs to be Date Installer configured by using the Safera App (see chapter 5).
-
Page 17: Connecting The Safera App
Safera App Check for firmware updates: open the main menu, choose “Firmware Update” With the Safera App you can easily set and install the update if available. up the sensor unit Ⓐ to fit your specific kitchen environment. ATTENTION With the App you can also update the It’s highly recommended to check... -
Page 18: Using The Stove Guard
With Airis Sense Wi-Fi, you may activate the remote alarms by setting up a Wi-Fi connection via Safera App (see chapter 6.1 Cooking Safety 5.1 how to connect the Safera App) and creating a Safera Cloud account which Unicook Airis... - Page 19 Blue light, Sensor unit is in software update mode. Keep your Ⓐ constant mobile phone close and do not shut down the Safera App during software update. Green light, Sensor unit is entering software update mode. If the Ⓐ...
-
Page 20: Maintenance
Ⓐ installed, so check sensor unit and on the bracket. that your Safera App and the device firmware is up to date (see chapter 5.2). 7.2 Battery life and low battery... -
Page 21: Optional Features
8. Optional features 8.1 AUX-connection (optional) Safera PCU6.3 and PCU6.1 power control units Ⓑ (with software version 6.2.21 or newer) are equipped with two auxiliary output signals AUX1 and AUX2 compatible with most automation and security systems. They can be used to send real-time status information of the stove guard. - Page 22 8.1.3 Example connection of one AUX-output In this case the home automation system’s logic input is pulled to ground potential when the AUX-output signal is active. Note that the maximum current pass in the optocoupler is 10 mA! +3 ... +24 VDC provided by the automation system Pull-up recommended to provide ~1mA (absolute max.
- Page 23 8.1.5 OUTPUT signals in normal AUX-mode AUX1 AUX2 Airis system status state state Nothing to report No active cooking or dangerous situation detected. Normal cooking detected This state will activate immediately when the stove is powered. It will turn off in roughly 1 to 30 minutes after the cooking has stopped, depending on how hot or powerful the cooking has been.
- Page 24 8.2 Water leakage sensor (optional) Unicook Airis can be equipped with a maximum of four Safera water leakage sensors. The sensors are placed in the typical leakage areas, e.g. under the dishwasher or sink. Attach the sensors Ⓕ in place.
-
Page 25: Troubleshooting
Test the working order according to chapter 4.6. If the product is in repeatedly gives working order, but gives repeatedly false alarms, re-run the "Installation false alarms Wizard" in the Safera App to make sure that all kitchen and cooker related parameters are correct. -
Page 26: Technical Specifications
Penalties may be • 802.11 g: +17 dBm applicable for incorrect disposal of this • 802.11 n: +14 dBm waste, in accordance with your national Safera Wireless (Proprietary legislation. protocol for power control units Ⓑ) • Range: 10 … 20 meters depending... -
Page 27: Conformity
12. Conformity 13. Firmware License Terms and Safera Oy declares that Airis is in Conditions compliance with the following EU directives and standards. Full text of the EU declaration of conformity is available IMPORTANT NOTICE: THIS IS A SMART at the following internet address: www. - Page 28 AND NON-INFRINGEMENT OF THIRD These are the Unicook Airis Firmware PARTY RIGHTS. TO THE EXTENT YOU License Terms and Conditions (“Terms”) AND THE DISTRIBUTOR HAVE NOT between you (“You”) and Safera Oy AGREED OTHERWISE WRITTEN (“Safera”). Please read these Terms...
- Page 29 RELATED TO THE PRODUCTS; AND with this provision. Copyright and other intellectual property rights in and to (b) IF SAFERA WOULD BE LIABLE NOT- the firmware (and to any and all other WITHSTANDING THE DISCLAIMERS software in the Products) are owned IN THESE TERMS, SAFERA’S LIABIL-...
- Page 30 You may contact Safera at: support@safera.com. These Terms constitute the complete and exclusive agreement between You and Safera with respect to the subject matter hereof and supersedes all prior proposals, understandings, marketing materials and other communications with respect to the subject matter of these Terms.
