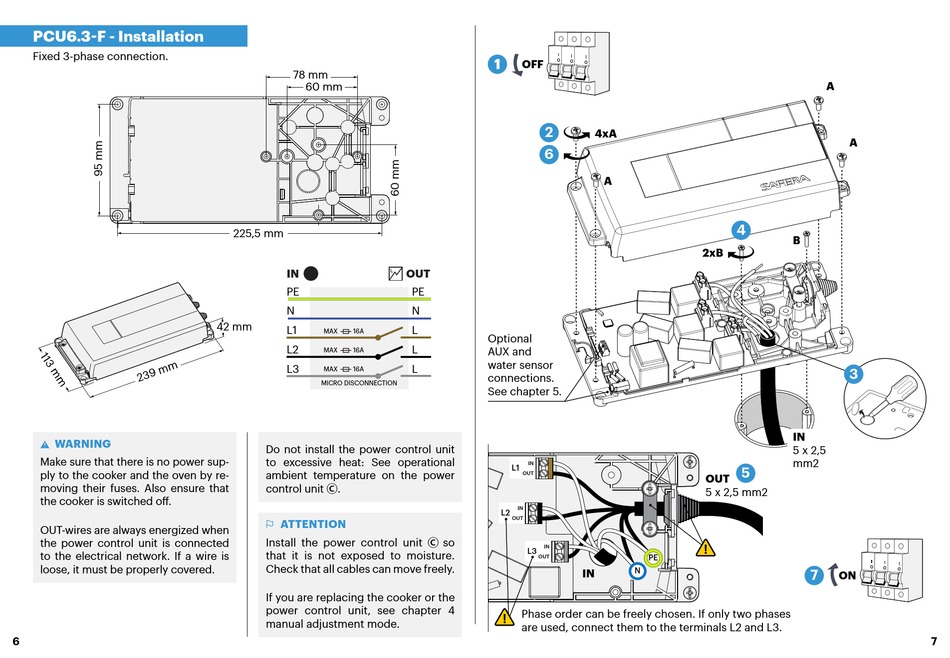

PCU6.3-F - Installation
Fixed 3-phase connection.
ѥ WARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched off.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
6
78 mm
60 mm
225,5 mm
IN
PE
N
42 mm
L1
MAX 16A
L2
MAX 16A
L3
MAX 16A
MICRO DISCONNECTION
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing the cooker or the
power control unit, see chapter 4
manual adjustment mode.
1
OFF
2
6
OUT
PE
N
L
Optional
L
AUX and
water sensor
L
connections.
See chapter 5.
IN
L1
OUT
IN
L2
OUT
IN
L3
OUT
IN
Phase order can be freely chosen. If only two phases
are used, connect them to the terminals L2 and L3.
4xA
A
4
2xB
5
OUT
5 x 2,5 mm2
PE
N
A
A
B
3
IN
5 x 2,5
mm2
7
ON
7
