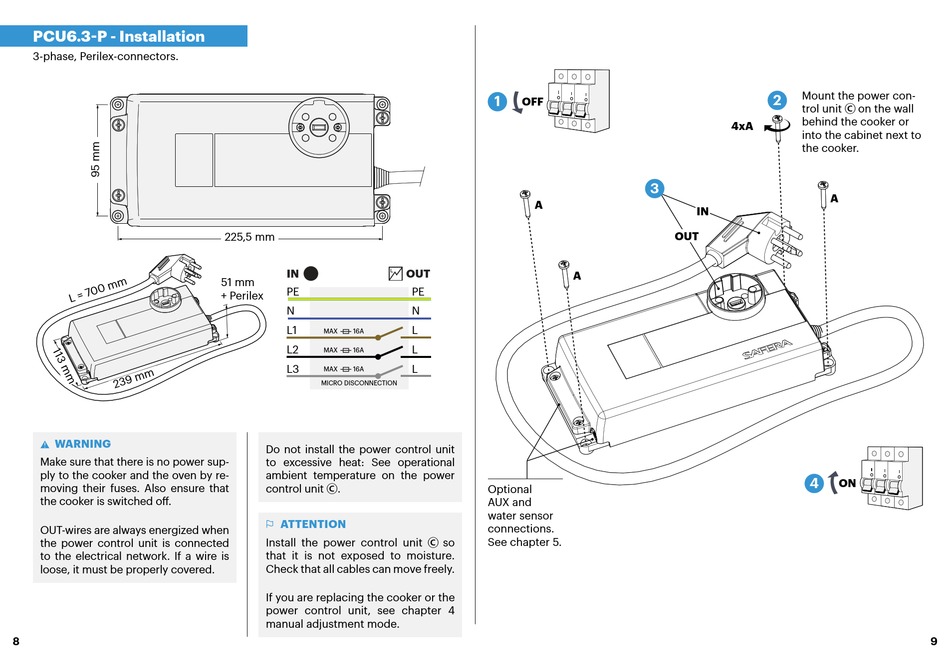

PCU6.3-P - Installation
3-phase, Perilex-connectors.
ѥ WARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched off.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
8
225,5 mm
IN
51 mm
PE
+ Perilex
N
L1
MAX 16A
L2
MAX 16A
L3
MAX 16A
MICRO DISCONNECTION
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing the cooker or the
power control unit, see chapter 4
manual adjustment mode.
1
OFF
A
OUT
A
PE
N
L
L
L
Optional
AUX and
water sensor
connections.
See chapter 5.
Mount the power con-
2
trol unit Ⓒ on the wall
behind the cooker or
4xA
into the cabinet next to
the cooker.
3
IN
OUT
4
A
ON
