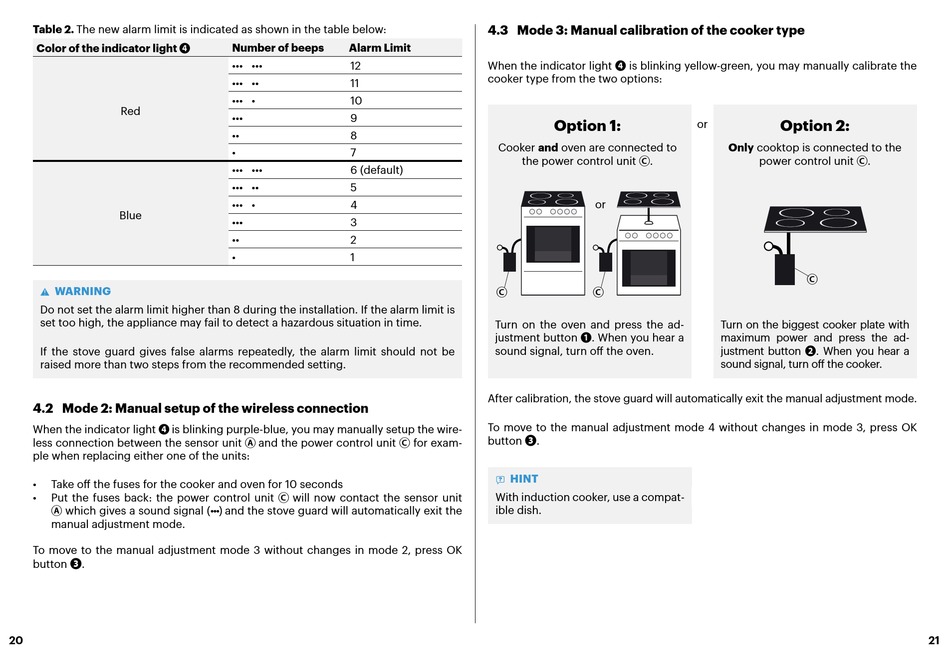

SAFERA Airis Installation Manual page 11

Table 2. The new alarm limit is indicated as shown in the table below:
Color of the indicator light ❹
Red
Blue
ѥ WARNING
Do not set the alarm limit higher than 8 during the installation. If the alarm limit is
set too high, the appliance may fail to detect a hazardous situation in time.
If the stove guard gives false alarms repeatedly, the alarm limit should not be
raised more than two steps from the recommended setting.
4.2 Mode 2: Manual setup of the wireless connection
When the indicator light ❹ is blinking purple-blue, you may manually setup the wire-
less connection between the sensor unit Ⓐ and the power control unit Ⓒ for exam-
ple when replacing either one of the units:
• Take off the fuses for the cooker and oven for 10 seconds
• Put the fuses back: the power control unit Ⓒ will now contact the sensor unit
Ⓐ which gives a sound signal (•••) and the stove guard will automatically exit the
manual adjustment mode.
To move to the manual adjustment mode 3 without changes in mode 2, press OK
button .
❸
20
Number of beeps Alarm Limit
••• ••• 12
••• •• 11
••• • 10
••• 9
•• 8
• 7
••• ••• 6 (default)
••• •• 5
••• • 4
••• 3
•• 2
• 1
4.3 Mode 3: Manual calibration of the cooker type
When the indicator light ❹ is blinking yellow-green, you may manually calibrate the
cooker type from the two options:
Option 1:
Cooker and oven are connected to
the power control unit Ⓒ.
or
Ⓒ Ⓒ
Turn on the oven and press the ad-
justment button ❶. When you hear a
sound signal, turn off the oven.
After calibration, the stove guard will automatically exit the manual adjustment mode.
To move to the manual adjustment mode 4 without changes in mode 3, press OK
button .
❸
ѧ HINT
With induction cooker, use a compat-
ible dish.
Option 2:
or
Only cooktop is connected to the
power control unit Ⓒ.
Ⓒ
Turn on the biggest cooker plate with
maximum power and press the ad-
justment button ❷. When you hear a
sound signal, turn off the cooker.
21
