Water Leakage Sensor - SAFERA Airis Installation Manual

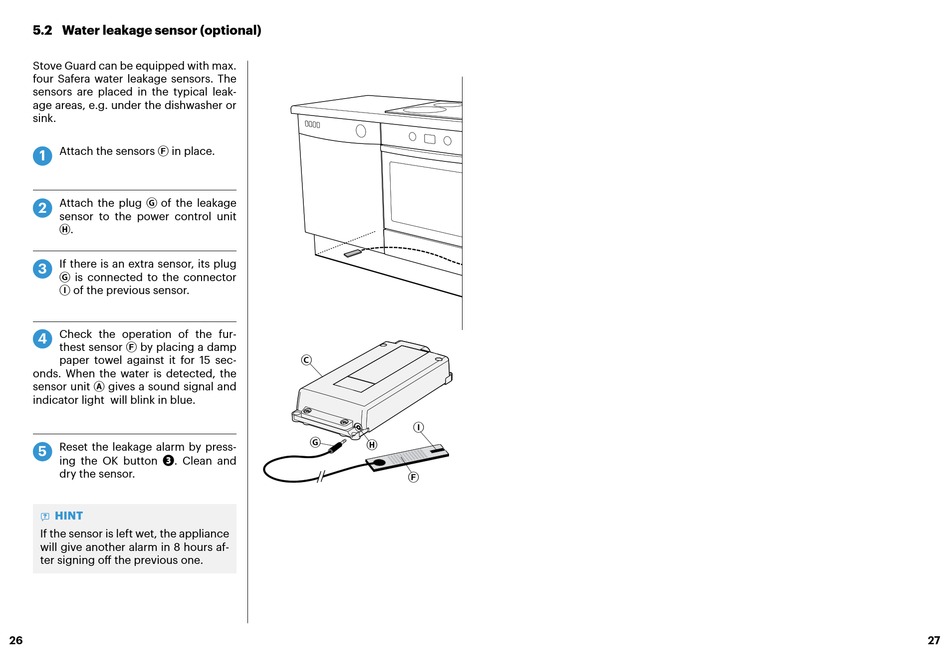

5.2 Water leakage sensor (optional)
Stove Guard can be equipped with max.
four Safera water leakage sensors. The
sensors are placed in the typical leak-
age areas, e.g. under the dishwasher or
sink.
Attach the sensors Ⓕ in place.
1
Attach the plug Ⓖ of the leakage
2
sensor to the power control unit
Ⓗ.
If there is an extra sensor, its plug
3
Ⓖ is connected to the connector
Ⓘ of the previous sensor.
Check the operation of the fur-
4
thest sensor Ⓕ by placing a damp
paper towel against it for 15 sec-
onds. When the water is detected, the
sensor unit Ⓐ gives a sound signal and
indicator light will blink in blue.
Reset the leakage alarm by press-
5
ing the OK button ❸ . Clean and
dry the sensor.
ѧ HINT
If the sensor is left wet, the appliance
will give another alarm in 8 hours af-
ter signing off the previous one.
