Installation manual
Safera Siro R stove guard
21023_02-B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Siro R PCU6.3-F and is the answer not in the manual?

Questions and answers

Summary of Contents for SAFERA Siro R PCU6.3-F

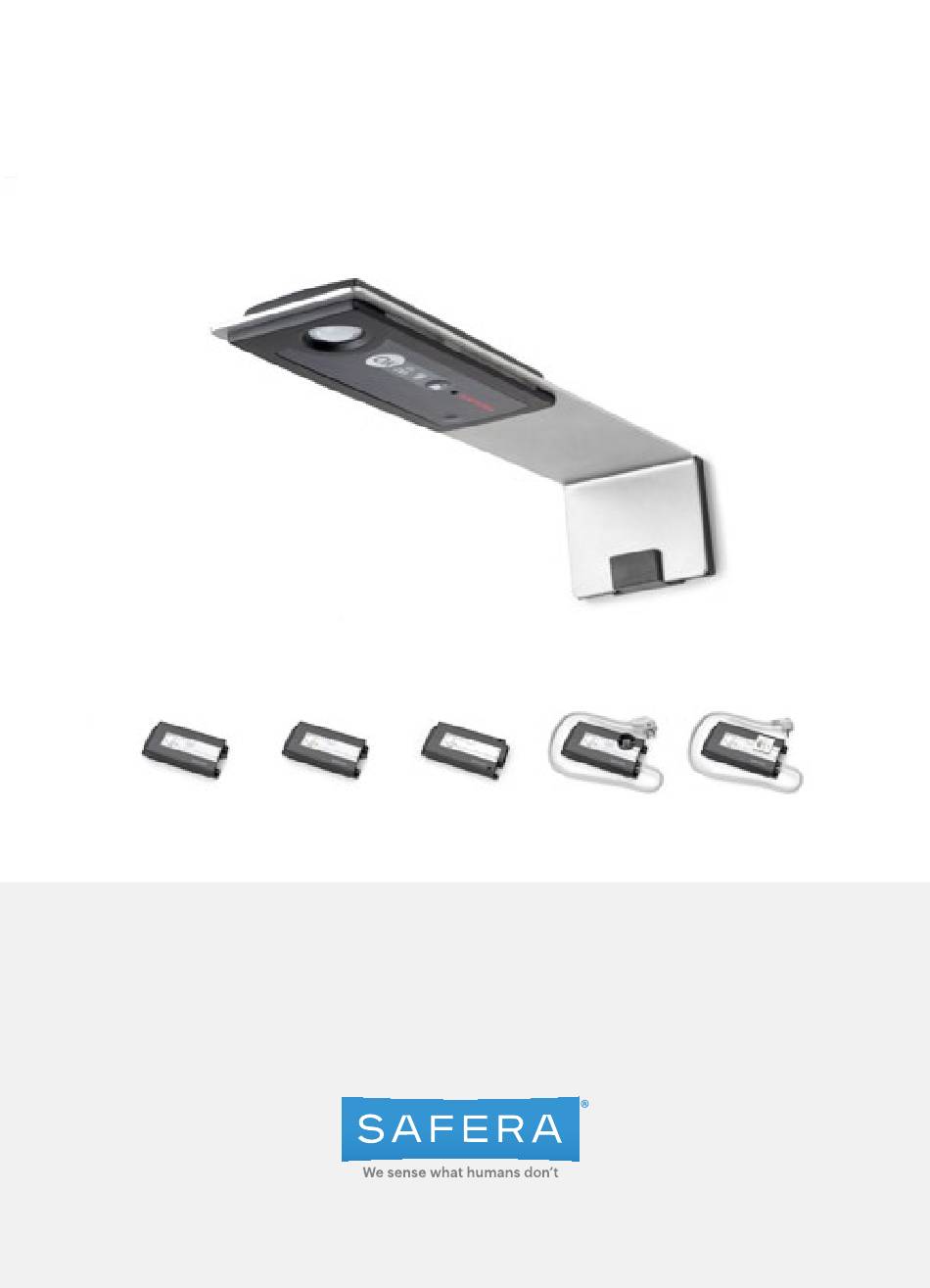

  • Page 1 PCU6.3-F PCU6.1-F PCU6.1-P PCU6.3-P PCU6.1-S Installation manual Safera Siro R stove guard 21023_02-B...
  • Page 2 Sensor Install and check the application ac- Follow these instructions carefully and cording to the instructions. Safera is not liable for any damage or expens- pay particular attention to the instruc- es caused by inappropriate installa- tions marked in the following way: tion.
  • Page 3 Cookers and hobs equipped with a timer, afterheat indicator, child Ⓓ proof lock or integrated switch-off system Safera Siro R is compatible with cook- ers no wider than 90 cm, see chapter 2. Installation step 1/6. Ⓐ 1.2 Control Panel ❶...
  • Page 4 2. Installation - Step 1/6 Mount the Sensor unit Ⓐ Install the Cental Unit Ⓐ on the wall above the cooktop and follow these dimensions: Cooker Installation Width width Height Align the Sensor unit ±15 mm with the centre Max. 60 cm 45 - 75 cm of the cooktop.
  • Page 5 200 mm ”Click” ”Click” ⚐ ATTENTION The Sensor unit Ⓐ is plugged into the wall socket with its own power supply Ⓓ.
  • Page 6 2. Installation - Step 2/6 Mount the Power Control Unit Ⓒ Install the Power Control Unit according to the following instructions. PCU6.3-F Fixed 3-phase connection. See pages 8-9. PCU6.3-P Perilex-connectors. See pages 10-11. PCU6.1-F Fixed 1-phase connection. See pages 12-13.
  • Page 7 PCU6.1-P 1-phase, 3-pin plug OUT. See pages 14-15. PCU6.1-S Schuko-connectors. See pages 16-17.
  • Page 8 PCU6.3-F - Installation Fixed 3-phase connection. 78 mm 60 mm 225,5 mm 42 mm MICRO DISCONNECTION ѥ WARNING ⚐ ATTENTION Make sure that there is no power sup- Install the power control unit Ⓒ so ply to the cooker and the oven by re- that it is not exposed to moisture.
  • Page 9 Optional water sensor connection. See chapter Don’t reconnect the power to the cooker yet. Phase order can be freely chosen. If only two phases are used, connect them to the terminals L1 and L2.
  • Page 10 PCU6.3-P - Installation 3-phase, Perilex-connectors. 225,5 mm 51 mm + Perilex MICRO DISCONNECTION ѥ WARNING ⚐ ATTENTION Make sure that there is no power sup- Install the power control unit Ⓒ so ply to the cooker and the oven by re- that it is not exposed to moisture.
  • Page 11 Mount the power con- trol unit Ⓒ on the wall behind the cooker or into the cabinet next to the cooker. Don’t reconnect the power to the Optional cooker yet. water sensor connection. See chapter 4.
  • Page 12 PCU6.1-F - Installation Fixed 1-phase connection. 78 mm 60 mm 225,5 mm 42 mm 230 V MAX. 25 / 32 A * MICRO DISCONNECTION * Check specifications on the cover of the Power Control Unit. ѥ WARNING ⚐ ATTENTION Make sure that there is no power sup- Install the power control unit Ⓒ...
  • Page 13 Optional water sensor connection. See chapter 4. L OUT Don’t reconnect the power to the cooker yet.
  • Page 14 PCU6.1-P - Installation 1-phase, 3-pin plug. 226 mm 40 mm 230 V MAX. 25 / 32 A * MICRO DISCONNECTION * Check specifications on the cover of the Power Control Unit. ѥ WARNING ⚐ ATTENTION Make sure that there is no power sup- Install the power control unit Ⓒ...
  • Page 15 4xA A Optional water sensor connection. See chapter 4. Connect the stove with 3-pin plug. Don’t reconnect the power to the cooker yet.
  • Page 16 PCU6.1-S - Installation 1-phase, Schuko-connectors. 225,5 mm L = 700 mm 46,5 mm + Schuko 230 V MAX. 16 A MICRO DISCONNECTION ѥ WARNING ⚐ ATTENTION Make sure that there is no power sup- Install the power control unit Ⓒ so ply to the cooker and the oven by re- that it is not exposed to moisture.
  • Page 17 Mount the power control unit Ⓒ on the wall behind the cooker or into the cabinet next to the cooker. Optional water sensor connection. See chapter Don’t reconnect the power to the cooker yet.
  • Page 18 2. Installation - Step 3/6 Set up the wireless connection Connect the power supply Ⓓ to the Sensor unit Ⓐ: indicator light panels ❽ are lit in purple. Press the adjustment mode button ❼: indicator light panels ❽ start blinking purple-blue. Put back the fuses for the cooker and the oven.
  • Page 19 2. Installation - Step 4/6 Calibrate the system When the indicator light panels ❽ start blinking yellow-green, you need to cali- brate the system. Choose from the two options: Option 1: Option 2: Cooker and oven are connected Only cooktop is connected to to the Power Control Unit Ⓒ.
  • Page 20 2. Installation - Step 5/6 Adjust the alarm limit Check clos- Location of the Installation Alarm Limit recommended Cooker Height (1-12) alarm limit from the refer- In a corner ence table on the right. 75 cm 65 cm The range is 1-12: 55 cm 1 = reacts fastest 45 cm...
  • Page 21 When you adjust the Color of the indicator Number of Alarm Limit alarm limit, the new light panels ❽ beeps alarm limit is indicated as ••• ••• shown in the table on the right. ••• •• ••• • ѧ HINT •••...
  • Page 22 2. Installation - Step 6/6 Check-list Check the working order of the appliance and fill in the installation checklist: ≅ All the burners of the cooker cause a child proof lock alarm. ≅ The oven (if connected) causes the child proof lock alarm.
  • Page 23 3. Installation troubleshooting Problem Remedy Installation is not You can re-start the installation process anytime by proceeding as expected. pressing the adjustment mode button ❼ for five seconds until you hear the signal and continue from step 3/6. The sensor unit Ⓐ is not Ensure that the power supply Ⓓ...
  • Page 24 4. Installing the Water Leakage Sensor (optional) Stove Guard can be equipped with max. four Safera Water Leakage Sensors. The sensors are placed in the typical leak- age areas, e.g. under the dishwasher or sink. Attach the sensors Ⓕ in place.
