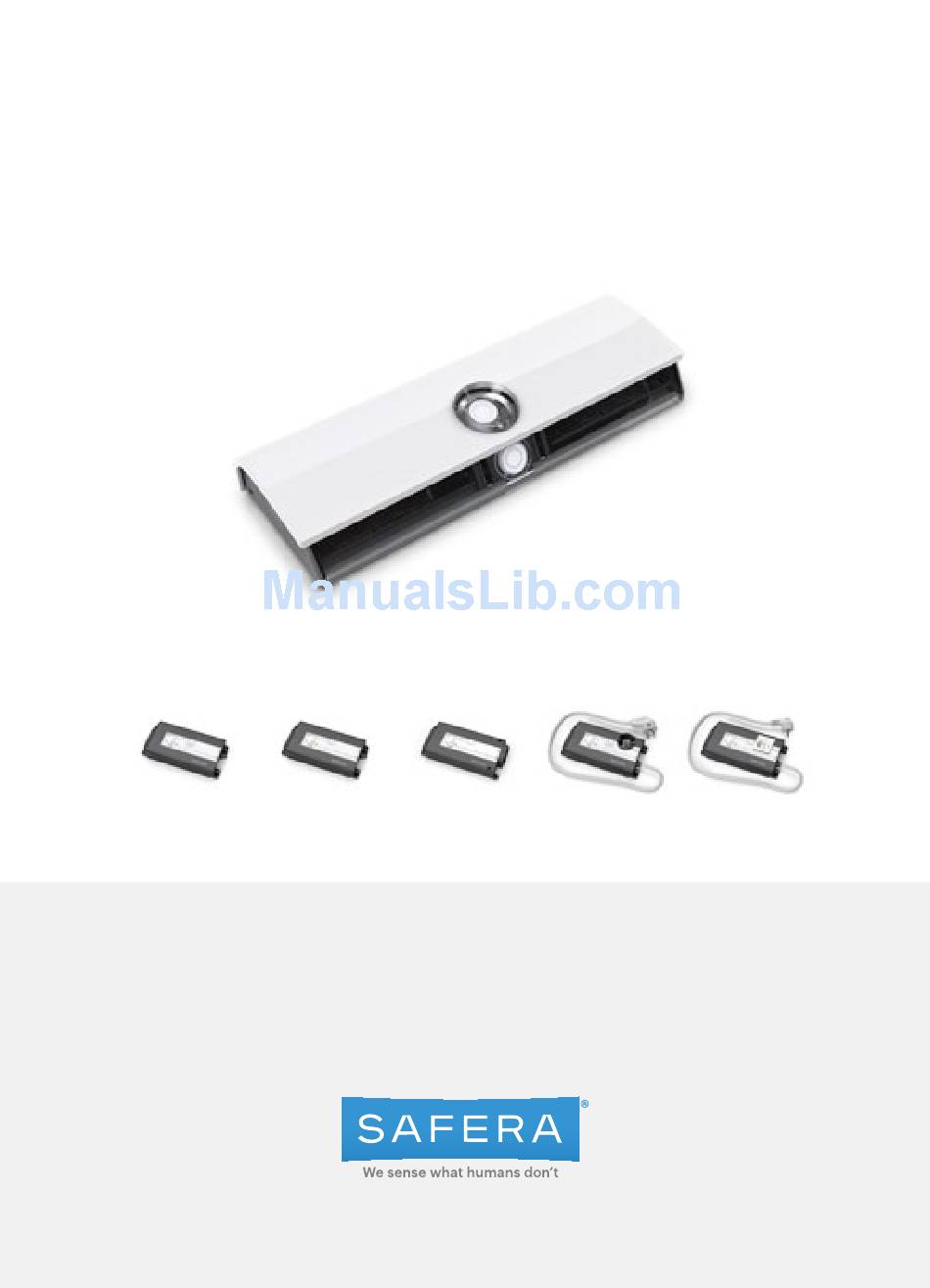

- Page 1 PCU6.3-F PCU6.1-F PCU6.1-P PCU6.3-P PCU6.1-S Installation manual Safera Airis Stove Guard For PCU software versions x.x.14 and onwards 21016_01-B...
-
Page 2: Table Of Contents
Read user and installation manual be- OK-button ❸ fore using or installing the appliance. Safera Airis is compatible with cookers no wider than 90 cm, see chapter 2. In- Adjustment button ❶ Install and check the application ac- stallation step 2/2. - Page 3 Installation - Step 1/2 Mount the Power Control Unit Ⓒ Install the power control unit Ⓒ according to the following instructions. PCU6.3-F PCU6.1-P Fixed 3-phase connection. 1-phase, 3-pin plug OUT. See pages 6-7. See pages 12-13. PCU6.3-P PCU6.1-S Perilex-connectors. Schuko-connectors. See pages 8-9.
-
Page 4: Installation
PCU6.3-F - Installation Fixed 3-phase connection. 78 mm 60 mm 225,5 mm 42 mm Optional AUX and water sensor connections. MICRO DISCONNECTION See chapter 5. ѥ WARNING Do not install the power control unit 5 x 2,5 Make sure that there is no power sup- to excessive heat: See operational ply to the cooker and the oven by re- ambient temperature on the power... - Page 5 PCU6.3-P - Installation 3-phase, Perilex-connectors. Mount the power con- trol unit Ⓒ on the wall behind the cooker or into the cabinet next to the cooker. 225,5 mm 51 mm + Perilex MICRO DISCONNECTION ѥ WARNING Do not install the power control unit Make sure that there is no power sup- to excessive heat: See operational ply to the cooker and the oven by re-...
- Page 6 PCU6.1-F - Installation Fixed 1-phase connection. 78 mm 60 mm Optional AUX and water sensor connections. 225,5 mm See chapter 5. 42 mm 230 V MAX. 25 / 32 A * MICRO DISCONNECTION * Check specifications on the cover of the Power Control Unit. ѥ...
- Page 7 PCU6.1-P - Installation 4xA A 1-phase, 3-pin plug. Optional AUX and water sensor connections. See chapter 5. 226 mm 40 mm 230 V MAX. 25 / 32 A * MICRO DISCONNECTION * Check specifications on the cover of the Power Control Unit. Connect the stove with 3-pin...
- Page 8 PCU6.1-S - Installation 1-phase, Schuko-connectors. Mount the power control unit Ⓒ on the wall behind the cooker or into the cabinet next to the cooker. 225,5 mm L = 700 mm Optional AUX and 46,5 mm water sensor + Schuko connections.
- Page 9 3. Test that none of the cooker plates ѧ HINT ⚐ ATTENTION and oven (if connected to the stove Airis will automatically recognize the guard) are operable: if ok, switch off Ensure the correct sensor direction: cooker and oven. cooker type during cooking to mini-...
-
Page 10: Installation Troubleshooting
3. Installation troubleshooting 4. Manual adjustment mode To enable the fast installation, the default settings of Safera Airis are suitable for the Problem Remedy most typical installations. In case you need to install the sensor unit outside the de- Problems with checking •... - Page 11 4.3 Mode 3: Manual calibration of the cooker type Table 2. The new alarm limit is indicated as shown in the table below: Color of the indicator light ❹ Number of beeps Alarm Limit ••• ••• When the indicator light ❹ is blinking yellow-green, you may manually calibrate the cooker type from the two options: •••...
-
Page 12: Optional Features
When the indicator light ❹ is blinking white (normal AUX-mode) or a blinking red 5.1 AUX-connection (optional) (inversed AUX-mode, see chapter 5.1.), you may: Safera PCU6.3 and PCU6.1 power control units Ⓒ are equipped with two auxiliary out- put signals AUX1 and AUX2 compatible with most automation and security systems. •... - Page 13 ON most of the time. For example, this may be harder for bat- both AUX1 and AUX2 are connected in series to the same line. tery operated external clients. However, it will not affect the Safera system's own •...
-
Page 14: Water Leakage Sensor
5.2 Water leakage sensor (optional) Stove Guard can be equipped with max. four Safera water leakage sensors. The sensors are placed in the typical leak- age areas, e.g. under the dishwasher or sink. Attach the sensors Ⓕ in place. Attach the plug Ⓖ of the leakage sensor to the power control unit Ⓗ.
